DS-KIS202T
4-wire analog video intercom kit for a villa or house
- See and talk to the visitor
- One call button
- 5 m 4-wire cable in the box

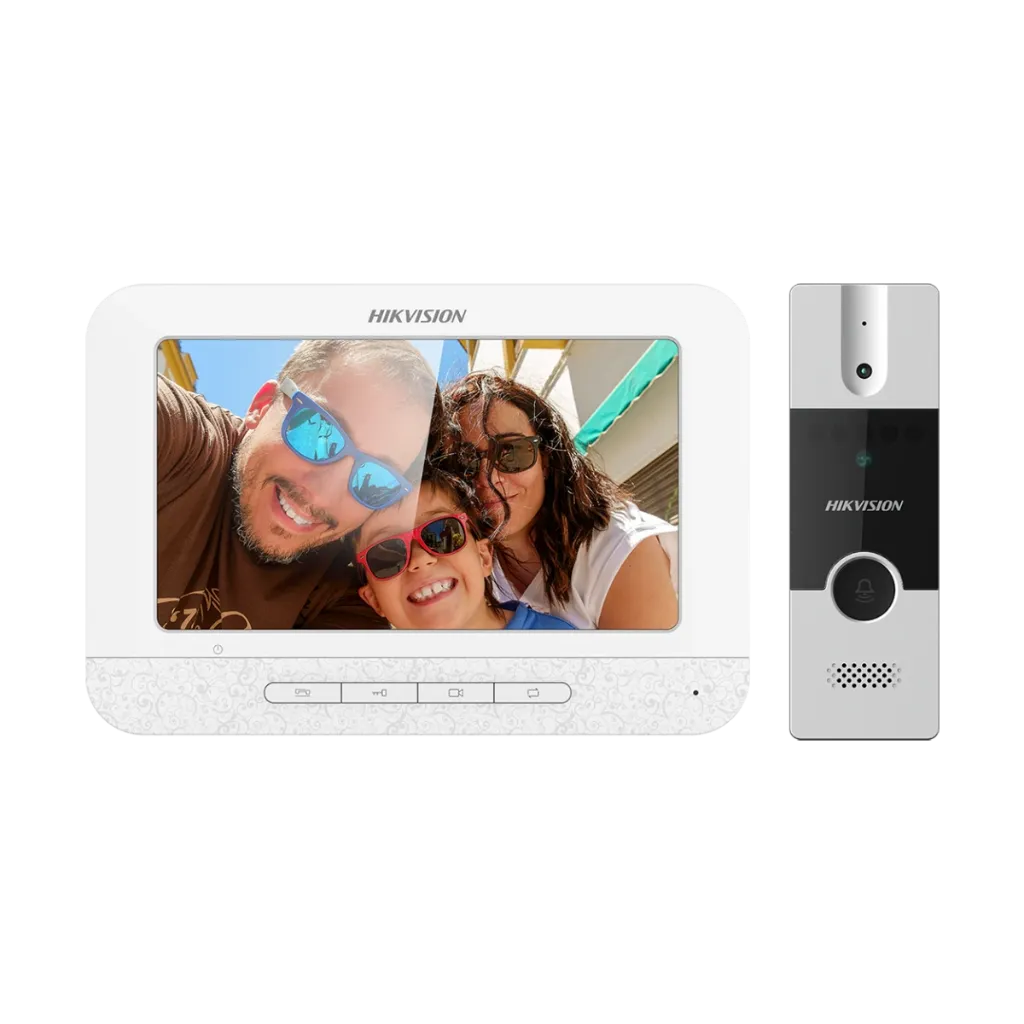

- Door station DS-KB2411T-IM + monitor DS-KH2220
DS-KIS202T
4-wire analog video intercom kit for a villa or house
- See and talk to the visitor
- One call button
- 5 m 4-wire cable in the box
- Door station DS-KB2411T-IM + monitor DS-KH2220
Key specs
- 4-wire analog video intercom kit for a villa or house
- Door station DS-KB2411T-IM and indoor monitor DS-KH2220
- One call button
- 5 m 4-wire cable and accessories in the box
- Power adaptor in the box (European plug)
|
Door Station |
|
|
Resolution |
1920 × 1080 |
|
Lens |
1/2.7" CMOS |
|
FOV |
Horizontal: 66.2°，Vertical: 37.2° |
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
I/O output |
1 relay output |
|
Four-wire |
1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power, supply, 1-ch grounding) |
|
Power supply |
12 VDC |
|
Power consumption |
Max. 5W |
|
Working temperature |
-10° C to + 55° C (14° F to 131° F) |
|
Working humidity |
10% to 90% |
|
Dimensions |
128 mm × 42 mm × 24.8 mm |
|
Indoor station |
|
|
Operation method |
Physical button |
|
Type |
7-inch colorful TFT LCD |
|
Resolution |
800 × 480 |
|
Audio input |
Built- in omnidirectional microphone |
|
Audio output |
Built- in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Power supply |
12 VDC |
|
Power consumption |
≤5 W |
|
Working temperature |
-10° C to + 55° C (14° F to 131° F) |
|
Working humidity |
10% to 90% |
|
Dimensions (W × H × D) |
195.8 mm × 132.8 mm × 18.39 mm |
Know before you buy
Quick answers about the DS-KIS202T, and how it compares.
Can I answer the door on my phone?
No. This is an analog kit: the door is answered on the indoor unit. For phone answering, see our IP video intercom kits.
What cable does it need?
A 4-core cable between the door station and the monitor (a 5 m cable is in the box).
How many homes can it call?
One home: it has one call button. For two homes sharing a gate (ground and first floor, or two flats side by side), see the 2-button door stations in our door stations.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
