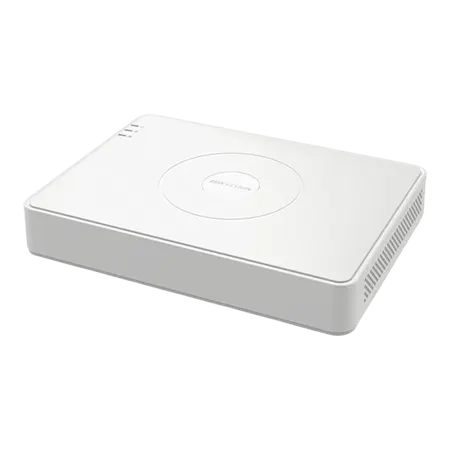

DS-7116HGHI-M1/T
16-ch Turbo HD Value DVR, two-way audio
DS-7116HGHI-M1/T
16-ch Turbo HD Value DVR, two-way audio
Key specs
- 16 Turbo HD (analog) camera channels
- Hikvision IP cameras: 2 IP cameras on top of the analog ones (up to 18 with analog off), up to 5MP
- Records: 1080p Lite at 15 fps ("Lite" is not the full resolution)
- Audio over coax on 16 channels; two-way audio over coax (/T)
- AI on the DVR: Motion Detection 2.0 (people and vehicles)
- 1 hard drive slot (SATA)
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Video and Audio |
|
|
IP Video Input |
2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
|
Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
|
CVBS Input |
PAL/NTSC |
|
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
Video Output Mode |
HDMI/VGA simultaneous output |
|
Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Synchronous Playback |
16-ch |
|
Recording |
|
|
Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
|
Encoding Resolution |
For 1080p stream access: 1080p Lite / 720p Lite / WD1 For standard definition stream access: WD1 / 4CIF / VGA |
|
Frame Rate |
Main stream: For 1080p stream access: 1080p Lite / 720p Lite / WD1 @15 fps For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF @15 fps For SD stream access: WD1 / 4CIF / VGA / CIF@25 fps (P)/30 fps(N) For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 4 Mbps |
|
Dual-stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Network |
|
|
Total Bandwidth |
96 Mbps |
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF |
|
Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1, SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
USB Interface |
2 × USB 2.0 |
|
General |
|
|
Power Supply |
12 VDC, 1.6 A |
|
Consumption |
≤ 7 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) |
|
Weight |
≤ 1.8 kg (without HDD, 4.0 lb.) |
Know before you buy
Quick answers about the DS-7116HGHI-M1/T, and how it compares.
What recording quality does it really give?
The DVR records at its own quality, whatever the camera. "Lite" is not the full resolution: 1080p Lite is 960 × 1080, half the width of 1080p, like selling 500 mL of milk as "1 L Lite". Value DVRs record 1080p Lite. AcuSense DVRs record 1080p at 15 fps and 3K / 5MP Lite at 12 fps; HUHI models record 1080p at 30 fps (real-time) and up to 8MP at 8 fps. Key Specs shows this model.
Does it support two-way talk?
Yes. With a two-way Turbo HD camera (microphone and speaker) you can talk through the camera over the same coax cable. Cameras with only a microphone record sound. Key Specs shows how many channels take sound over coax.
Can I add Hikvision IP cameras to this DVR?
Yes, a few. Key Specs shows how many and up to which resolution. For more IP cameras or higher resolution, choose a Hikvision NVR.
Do I need AI cameras for people and vehicle alerts?
No. This DVR does the AI itself on the channels its spec lists, so normal Turbo HD cameras get people and vehicle alerts. Turbo HD cameras have no AI of their own.
Turbo HD or IP: which should I choose?
Turbo HD is the budget choice, but the DVR sets the recording quality, AI runs only on the DVR, and every camera needs its own coax cable back to the recorder, so moving or adding cameras later means new wiring. IP cameras record at their full resolution, have AI built in, and run video, power (PoE) and audio on one network cable. For more than 16 cameras, IP is the better fit.
Does it come with a hard disk?
No. Hikvision DVRs come without hard disks. Key Specs shows how many disks it takes and the largest size. Our engineers size the disk for your cameras and the days of recording you need.
