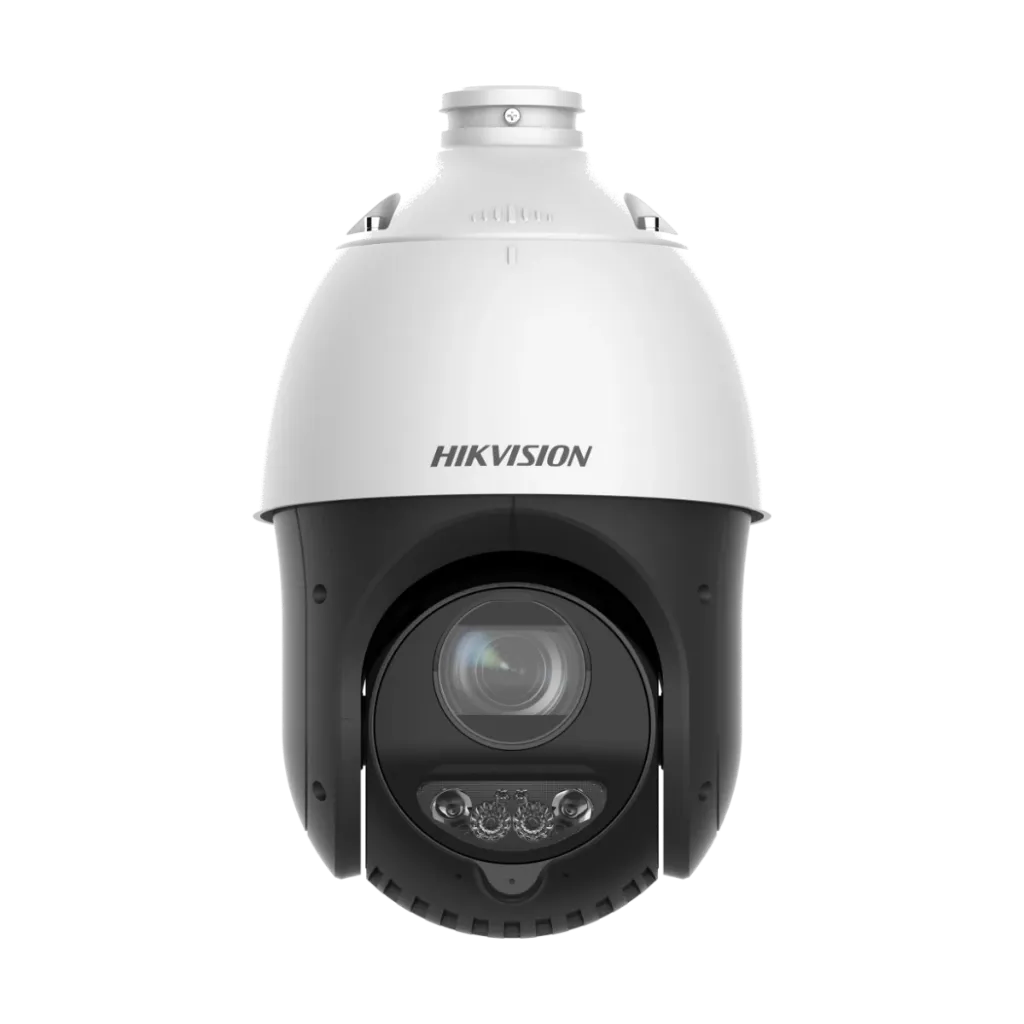

DS-2DE4825IWG1-E
Pro Series 4-inch 8MP 25x IR PTZ Camera
- 25x optical zoom, pans up to 80°/s
- Illumination: IR 100m
- Tells people from vehicles (deep learning)
- Strobe light and audio alarm
DS-2DE4825IWG1-E
Pro Series 4-inch 8MP 25x IR PTZ Camera
- 25x optical zoom, pans up to 80°/s
- Illumination: IR 100m
- Tells people from vehicles (deep learning)
- Strobe light and audio alarm
Key specs
- Pro Series, 4-inch, 8MP (3840 × 2160), 1/2.8" sensor, 120 dB WDR
- 25x optical zoom, 4.8 to 120 mm; pans up to 80°/s
- Illumination: IR 100m
- Line crossing, intrusion, region entrance and exit, unattended baggage and object removal, people and vehicle filter
- Face capture, up to 5 faces at once
- Built-in dual microphone and speaker (20 m); strobe light and audio alarm
- Alarm in/out 1/1, microSD up to 512 GB
- IP67, TVS 6000 V; power: PoE+ (802.3at) or 12 VDC
|
Camera |
|
|
Image Sensor |
1/2.8" progressive scan CMOS |
|
Max. Resolution |
3840 × 2160 |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1 s to 1/30,000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
25x optical, 16x digital |
|
Slow Shutter |
Yes |
|
Lens |
|
|
Focal Length |
4.8 to 120 mm |
|
FOV |
Horizontal field of view: 55.3° to 3.0°, vertical field of view: 32.2° to 1.7°, diagonal field of view: 62.3° to 3.4° |
|
Focus |
Auto, semi-auto, manual |
|
Aperture |
Max. F1.6 |
|
Zoom Speed |
Approx. 3.6 s |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 100 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s |
|
Tilt Speed |
tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
|
Proportional Pan |
Yes |
|
Presets |
300 |
|
Preset Freezing |
Yes |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Park Action |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|
3D Positioning |
Yes |
|
PTZ Status Display |
Yes |
|
Scheduled Task |
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output |
|
Power-off Memory |
Yes |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main profile |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
8 fixed regions for each stream |
|
AI Encoding |
No |
|
Network |
|
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|
User/Host |
Up to 32 users, 3 user levels: administrator, operator, and user |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
> 52 dB |
|
Defog |
Digital defog |
|
Image Stabilization |
EIS |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
24 programmable polygon privacy masks, mask color or mosaic configurable |
|
Regional Focus |
Yes |
|
Regional Exposure |
Yes |
|
VR View |
360° Real Scene Stitched Panoramic Image |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB |
|
Audio |
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|
Alarm |
1 input, 1 output |
|
Reset |
Yes |
|
Built-in Microphone |
2 built-in Microphone: Arrayed dual-microphone up to 8 meters |
|
Built-in Speaker |
1 built-in speaker, with effective distance reaching max. 20 meters |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception, alarm input and output |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording,audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
|
Deep Learning Function |
|
|
Face Capture |
Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
|
Regional People Counting |
Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports searching real-time number of people |
|
General |
|
|
Power |
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at) |
|
Dimension |
Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42") |
|
Weight |
Approx. 2 kg (4.41 lb.) |
|
Operating Condition |
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
|
Demist |
Yes |
|
Approval |
|
|
EMC |
CE-EMC (EN 55032:2015 + A1:2020, EN 50130-4:2011 + A1:2014, EN IEC 61000-3-2:2019 + A1:2021 + A2:2024, EN 61000-3-3:2013 + A1:2019 + A2:2021),RCM (AS/NZS CISPR 32: 2015) |
|
Safety |
CB (IEC 62368-1:2014), CE-LVD (EN 62368-1:2014 + A11:2017) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection |
Know before you buy
Quick answers about the DS-2DE4825IWG1-E, and how it compares.
How far can it see?
25x optical zoom (4.8 to 120 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 100m.
How fast does it turn?
It pans at up to 80°/s and tilts at up to 80°/s (preset speed).
Which alerts does it give?
Line crossing, intrusion, region entrance and exit, unattended baggage and object removal. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 5 at once).
How is it powered?
A PoE+ (802.3at) switch port powers it over the network cable, or use a 12 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
