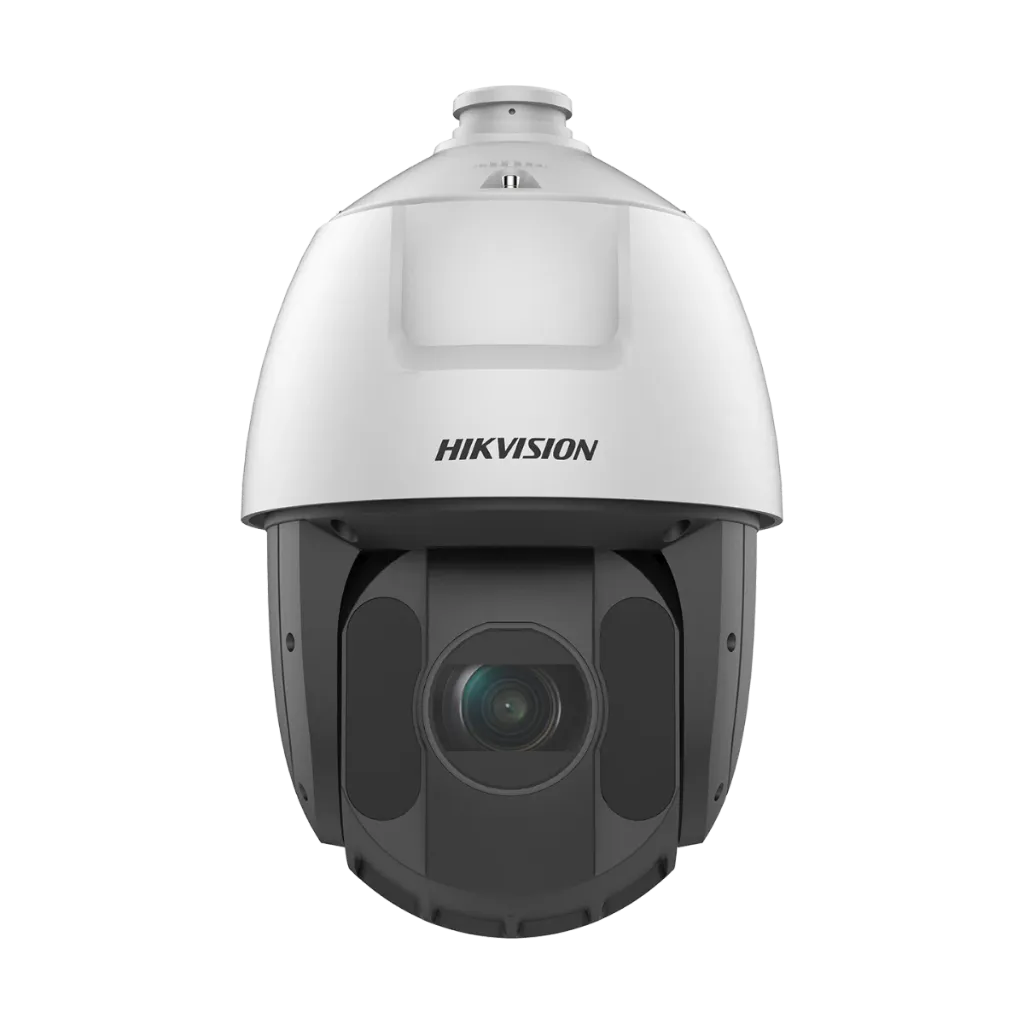

DS-2DE5432IWG-E
Pro Series 5-inch 4MP 32x IR PTZ Camera
- 32x optical zoom, pans up to 120°/s
- Illumination: IR 150m
- Auto-tracking: follows a moving target
- Face capture
DS-2DE5432IWG-E
Pro Series 5-inch 4MP 32x IR PTZ Camera
- 32x optical zoom, pans up to 120°/s
- Illumination: IR 150m
- Auto-tracking: follows a moving target
- Face capture
Key specs
- Pro Series, 5-inch, 4MP (2560 × 1440), 1/2.8" sensor, 120 dB WDR
- 32x optical zoom, 5.9 to 188.8 mm; pans up to 120°/s
- Illumination: IR 150m
- Line crossing, intrusion, region entrance and exit, unattended baggage and object removal, people and vehicle filter
- Face capture, up to 5 faces at once
- Auto-tracking
- Alarm in/out 2/1, microSD up to 256 GB
- IP66, TVS 6000 V; power: PoE+ (802.3at) or 24 VAC
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 32x optional, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 5.9 mm to 188.8 mm |
| FOV | Horizontal field of view: 60.2° to 2.0° (wide-tele); Vertical field of view: 35.2° to 1.1° (wide-tele); Diagonal field of view: 67.4° to 2.3° (wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.5 |
| Zoom Speed | Approx. 5.6 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 150 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 576, 640 × 480, 352 × 288) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | >52 dB |
| Defog | Digital Defog |
| Image Stabilization | No |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 inputs, 1 output |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| General | |
| Power | 24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at) |
| Dimension | Ø 210 mm × 344.7 mm (Ø 8.27" × 13.57") |
| Weight | Approx. 3.0 kg (6.61 lb.) |
| Material | Metal |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist | Yes |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7), KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection |
Questions & answers
Know before you buy
Quick answers about the DS-2DE5432IWG-E, and how it compares.
How far can it see?
32x optical zoom (5.9 to 188.8 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 150m.
How fast does it turn?
It pans at up to 120°/s and tilts at up to 80°/s (preset speed).
Does it follow a moving target?
Yes. With auto-tracking the camera pans, tilts and zooms to keep a moving target in view.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit, unattended baggage and object removal. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 5 at once).
How is it powered?
A PoE+ (802.3at) switch port powers it over the network cable, or use a 24 VAC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
