DS-2DE7A432IWG1-E

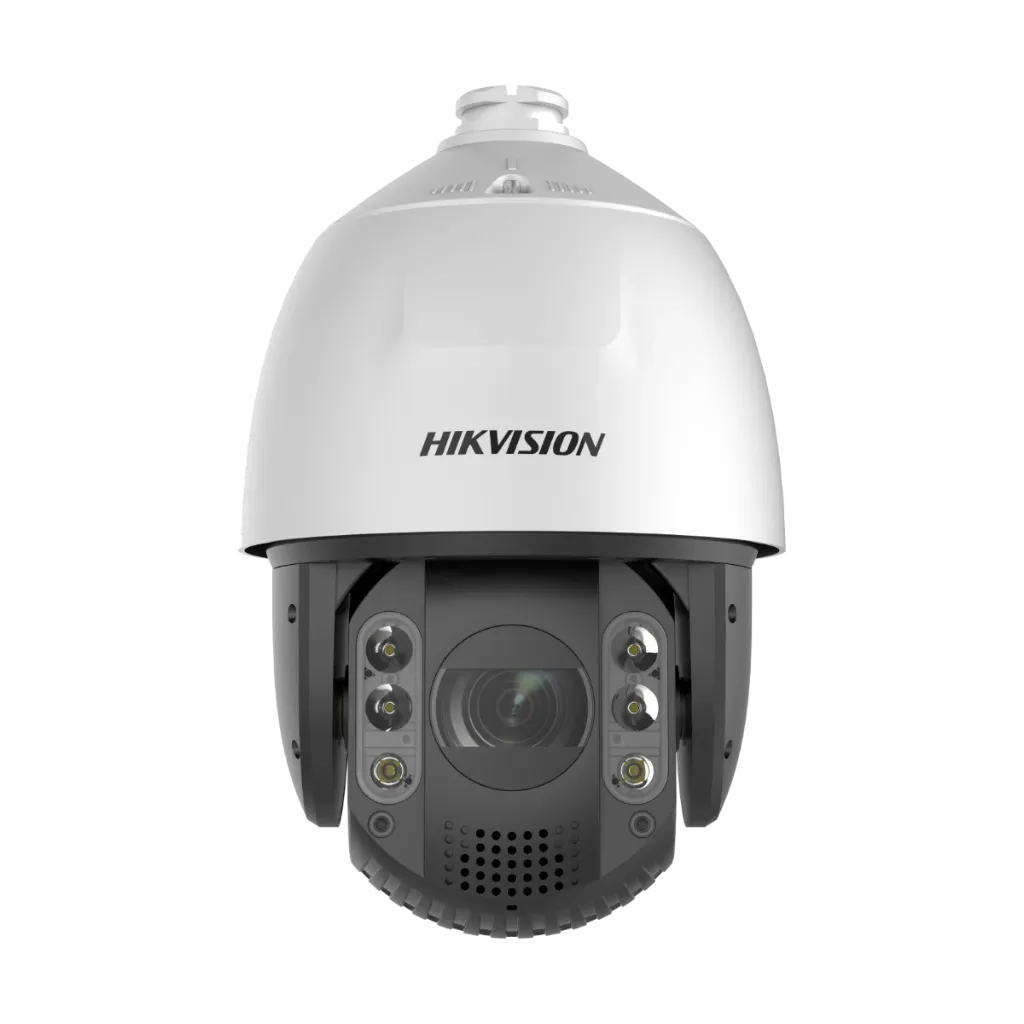

Pro Series 7-inch 4MP 32x IR PTZ Camera
- 32x optical zoom, pans up to 240°/s
- Illumination: IR 200m
- Auto-tracking: follows a moving target
- Strobe light and audio alarm
DS-2DE7A432IWG1-E
Pro Series 7-inch 4MP 32x IR PTZ Camera
- 32x optical zoom, pans up to 240°/s
- Illumination: IR 200m
- Auto-tracking: follows a moving target
- Strobe light and audio alarm
Key specs
- Pro Series, 7-inch, 4MP (2560 × 1440), 1/2.5" sensor, 120 dB WDR
- 32x optical zoom, 5.5 to 176 mm; pans up to 240°/s
- Illumination: IR 200m
- Line crossing, intrusion, region entrance and exit, people and vehicle filter
- Face capture, up to 5 faces at once
- Auto-tracking
- Built-in dual microphone and speaker (30 m); strobe light and audio alarm
- Alarm in/out 2/1, microSD up to 512 GB
- IP67, IK10, TVS 6000 V; power: Hi-PoE (802.3bt) or 36 VDC
| Camera | |
|---|---|
| Max. resolution | 2560 × 1440 (4MP) |
| Image sensor | 1/2.5" |
| WDR | 120 dB |
| Lens and light | |
| Focal length | 5.5 to 176 mm |
| Optical zoom | 32x |
| Illumination | IR 200m |
| Pan and tilt | |
| Size | 7-inch speed dome |
| Pan / tilt speed | up to 240°/s / 200°/s (preset) |
| Dimensions | Ø 220 mm × 363.3 mm |
| Smart functions | |
| Events | line crossing, intrusion, region entrance and exit |
| Deep learning | people and vehicle classification |
| Face capture | up to 5 faces at once |
| Smart tracking | Auto-tracking |
| General | |
| Microphone | built-in dual microphone |
| Speaker | built-in, up to 30 m |
| Active deterrence | strobe light and audio alarm |
| Alarm in / out | 2/1 |
| Memory card | microSD up to 512 GB |
| Power | Hi-PoE (802.3bt) or 36 VDC, max. 48 W |
| Protection | IP67, IK10, TVS 6000 V |
Know before you buy
Quick answers about the DS-2DE7A432IWG1-E, and how it compares.
How far can it see?
32x optical zoom (5.5 to 176 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 200m.
How fast does it turn?
It pans at up to 240°/s and tilts at up to 200°/s (preset speed).
Does it follow a moving target?
Yes. With auto-tracking the camera pans, tilts and zooms to keep a moving target in view.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 5 at once).
How is it powered?
A Hi-PoE (802.3bt) switch port powers it over the network cable; a standard PoE or PoE+ port is not enough. Or use a 36 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a mount (DS-1602ZJ wall mount in the box). Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
