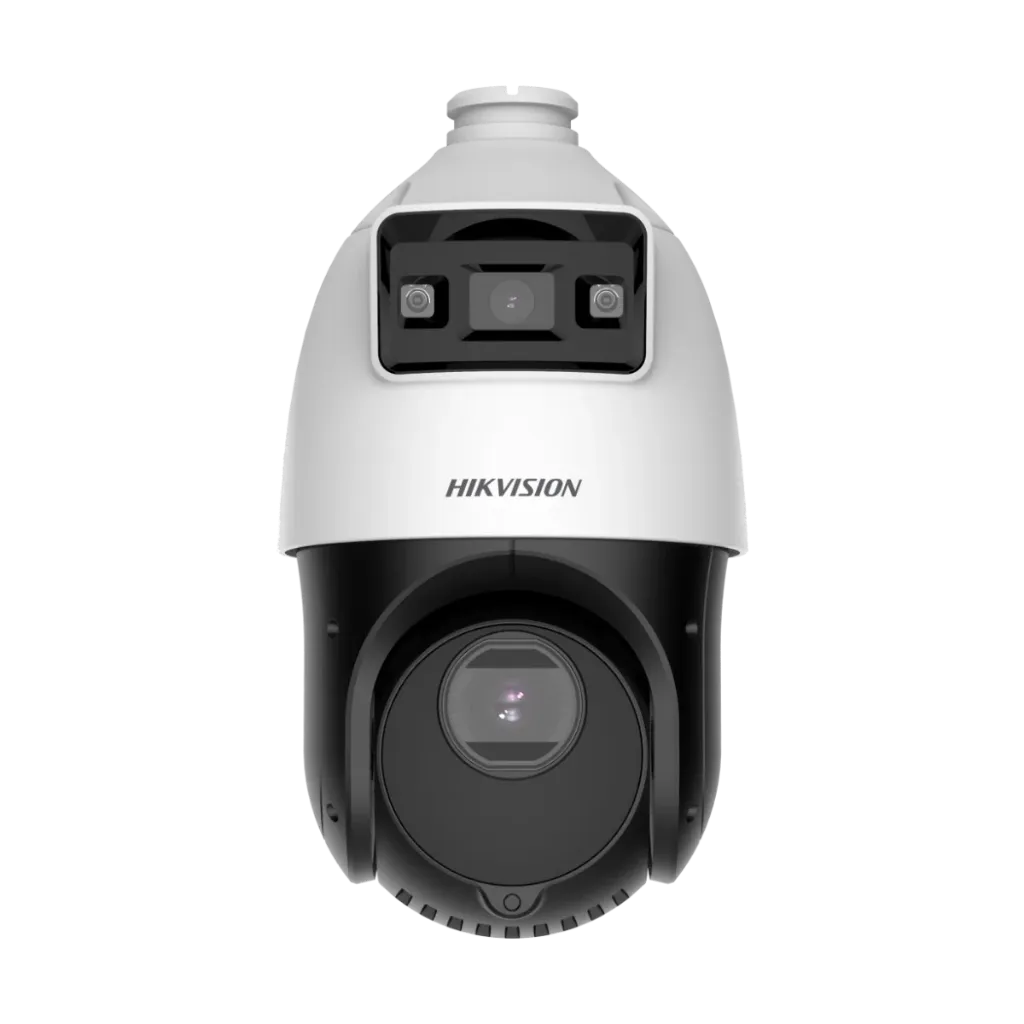

DS-2SE4C225MWG-E (12F0)
Pro Series 4-inch TandemVu: 2MP wide lens + 2MP 25x PTZ
- Wide 106.1° lens plus 25x optical zoom, pans up to 80°/s
- Illumination: IR/White 100m/30m
- Tells people from vehicles (deep learning)
- Face capture
DS-2SE4C225MWG-E (12F0)
Pro Series 4-inch TandemVu: 2MP wide lens + 2MP 25x PTZ
- Wide 106.1° lens plus 25x optical zoom, pans up to 80°/s
- Illumination: IR/White 100m/30m
- Tells people from vehicles (deep learning)
- Face capture
Key specs
- Pro Series, 4-inch; PTZ lens: 2MP (1920 × 1080), 25x optical zoom, 4.8 to 120 mm; pans up to 80°/s
- Wide lens: 2MP (1920 × 1080), 2.8 mm, 106.1° view
- Illumination: IR/White 100m/30m (IR on the PTZ lens, white light on the wide lens)
- Line crossing, intrusion, region entrance and exit, people and vehicle filter
- Face capture
- Alarm in/out 1/1, microSD up to 256 GB
- IP66, 6000 V lightning protection; power: PoE+ or 12 VDC
|
Camera |
|
|
Image Sensor |
[Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
|
Min. Illumination |
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1 s to 1/30,000 s |
|
Slow Shutter |
Yes |
|
Focus |
semi-auto, manual, auto |
|
Day ＆ Night |
ICR |
|
Zoom |
[PTZ channel] 25 × optical, 16 × digital |
|
Day/Night Switch |
day, night, auto, scheduled-switch |
|
White Balance |
auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
|
Max. Resolution |
[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080 |
|
Lens |
|
|
Focal Length |
[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical |
|
Zoom Speed |
[PTZ channel]: approx. 3.6 s |
|
FOV |
[Bullet channel]: Horizontal field of view: 106.1°, Vertical field of view: 56.8°，Diagonal field of view: 126.5°; [PTZ channel]: Horizontal field of view: 54.8° to 2.8° (wide-tele), Vertical field of view: 31.4° to 1.5° (wide-tele), Diagonal field of view: 62.2° to 3.2° (wide-tele) |
|
Aperture |
[Bullet channel]: F1.0; [PTZ channel]: F1.6 |
|
Illuminator |
|
|
Supplement Light Type |
[PTZ channel]: IR; [Bullet channel]: White Light |
|
Smart Supplement Light |
Yes |
|
Supplement Light Range |
[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s |
|
Tilt Speed |
tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
|
Proportional Zoom |
yes |
|
Presets |
300 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 pattern scans |
|
Power-off Memory |
yes |
|
Park Action |
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|
3D Positioning |
yes |
|
PTZ Status Display |
yes |
|
Preset Freezing |
yes |
|
Scheduled Task |
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
|
Exception Detection |
IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot |
|
Video |
|
|
Region of Interest (ROI) |
8 fixed regions for each stream |
|
Stream Type |
main stream, sub-stream, third stream |
|
Main Stream |
[Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
[Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
[Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Video Compression |
H.265, H.264, MJPEG |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
H.264 Type |
baseline profile, main profile, high profile |
|
H.265 Type |
main profile |
|
H.264+ |
yes |
|
H.265+ |
yes |
|
SVC |
yes |
|
Smart Features |
|
|
Smart Record |
ANR, Dual-VCA |
|
Network |
|
|
API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|
Network Storage |
NAS (NFS, SMB/ CIFS), ANR |
|
Image |
|
|
Image Settings |
sharpness, saturation, brightness, contrast |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
≥ 52 dB |
|
Defog |
Digital defog |
|
Image Stabilization |
EIS |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Regional Focus |
Yes |
|
Regional Exposure |
Yes |
|
Image Parameters Switch |
Yes |
|
Privacy Mask |
[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
|
Interface |
|
|
Communication Interface |
RJ45, self-adaptive 10M/100M Ethernet port |
|
On-board Storage |
Built-in memory card slot, support Micro SD / Micro SDHC / Micro SDXC, up to 256 GB |
|
Alarm Input |
1 alarm input |
|
Alarm Output |
1 alarm output |
|
Audio Input |
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
|
Audio Output |
1 audio output, line level, impedance: 600 Ω |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception, alarm input and output |
|
Smart Event |
audio exception detection, region entrance detection, region exiting detection, intrusion detection, Line crossing detection |
|
Alarm Linkage |
[Bullet channel] Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, and trigger recording [PTZ channel] Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
|
Deep Learning Function |
|
|
Face Capture |
[Bullet channel] no, [PTZ channel] yes |
|
General |
|
|
General Function |
mirror, password protection, watermark, IP address filter |
|
Power |
12VDC, PoE+ |
|
Power Consumption and Current |
Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light |
|
Reset |
yes |
|
Demist |
Demist by heating the glass |
|
Material |
ADC12 |
|
Dimensions |
Ø 166 mm × 375 mm (Ø 6.5" × 14.7") |
Know before you buy
Quick answers about the DS-2SE4C225MWG-E (12F0), and how it compares.
How far can it see?
25x optical zoom (4.8 to 120 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR/White 100m/30m (IR on the PTZ lens, white light on the wide lens).
How fast does it turn?
It pans at up to 80°/s and tilts at up to 80°/s (preset speed).
Why two lenses?
The wide 2MP lens (106.1° view) records the whole area all the time, while the PTZ lens zooms in on what matters, so nothing is missed while the PTZ looks elsewhere.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces.
How is it powered?
A PoE+ switch port powers it over the network cable, or use a 12 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
