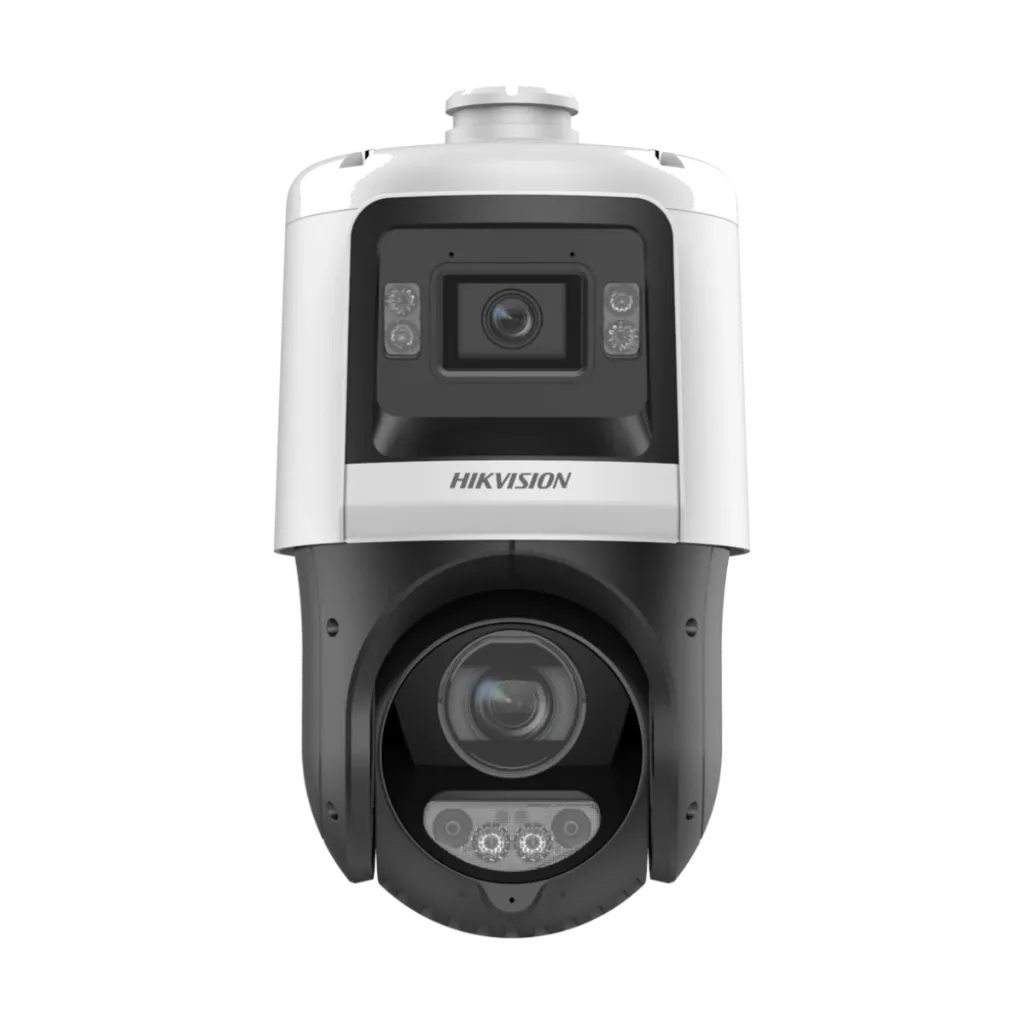

DS-2SE4C425MWG-E (14F0)
Pro Series 4-inch TandemVu: 4MP wide lens + 4MP 25x PTZ
- Wide 96° lens plus 25x optical zoom, pans up to 80°/s
- Illumination: IR/White 100m/30m
- Tells people from vehicles (deep learning)
- Strobe light and audio alarm
DS-2SE4C425MWG-E (14F0)
Pro Series 4-inch TandemVu: 4MP wide lens + 4MP 25x PTZ
- Wide 96° lens plus 25x optical zoom, pans up to 80°/s
- Illumination: IR/White 100m/30m
- Tells people from vehicles (deep learning)
- Strobe light and audio alarm
Key specs
- Pro Series, 4-inch; PTZ lens: 4MP (2560 × 1440), 25x optical zoom, 5 to 125 mm; pans up to 80°/s
- Wide lens: 4MP (2560 × 1440), 2.8 mm, 96° view
- Illumination: IR/White 100m/30m (IR on the PTZ lens, white light on the wide lens)
- Line crossing, intrusion, region entrance and exit, people and vehicle filter
- Face capture, up to 5 faces at once
- Built-in dual microphone and speaker (8 m); strobe light and audio alarm
- Alarm in/out 1/1, microSD up to 512 GB
- IP67, TVS 6000 V; power: PoE+ (802.3at) or 12 VDC
| Camera | |
|---|---|
| PTZ lens resolution | 2560 × 1440 (4MP) |
| Wide lens | 2560 × 1440, 2.8 mm, 96° view |
| Image sensor | 1/2.8" |
| WDR | 120 dB |
| Lens and light | |
| Focal length | 5 to 125 mm |
| Optical zoom | 25x |
| Illumination | IR/White 100m/30m (PTZ lens / wide lens) |
| Pan and tilt | |
| Size | 4-inch speed dome |
| Pan / tilt speed | up to 80°/s / 80°/s (preset) |
| Dimensions | Ø 166 mm × 294.8 mm |
| Smart functions | |
| Events | line crossing, intrusion, region entrance and exit |
| Deep learning | people and vehicle classification |
| Face capture | up to 5 faces at once |
| Wide lens to PTZ linkage | linked tracking capture |
| General | |
| Microphone | built-in dual microphone |
| Speaker | built-in, up to 8 m |
| Active deterrence | strobe light and audio alarm |
| Alarm in / out | 1/1 |
| Memory card | microSD up to 512 GB |
| Power | PoE+ (802.3at) or 12 VDC |
| Protection | IP67, TVS 6000 V |
Know before you buy
Quick answers about the DS-2SE4C425MWG-E (14F0), and how it compares.
How far can it see?
25x optical zoom (5 to 125 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR/White 100m/30m (IR on the PTZ lens, white light on the wide lens).
How fast does it turn?
It pans at up to 80°/s and tilts at up to 80°/s (preset speed).
Why two lenses?
The wide 4MP lens (96° view) records the whole area all the time, while the PTZ lens zooms in on what matters, so nothing is missed while the PTZ looks elsewhere. Linkage between the two: linked tracking capture.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 5 at once).
How is it powered?
A PoE+ (802.3at) switch port powers it over the network cable, or use a 12 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
