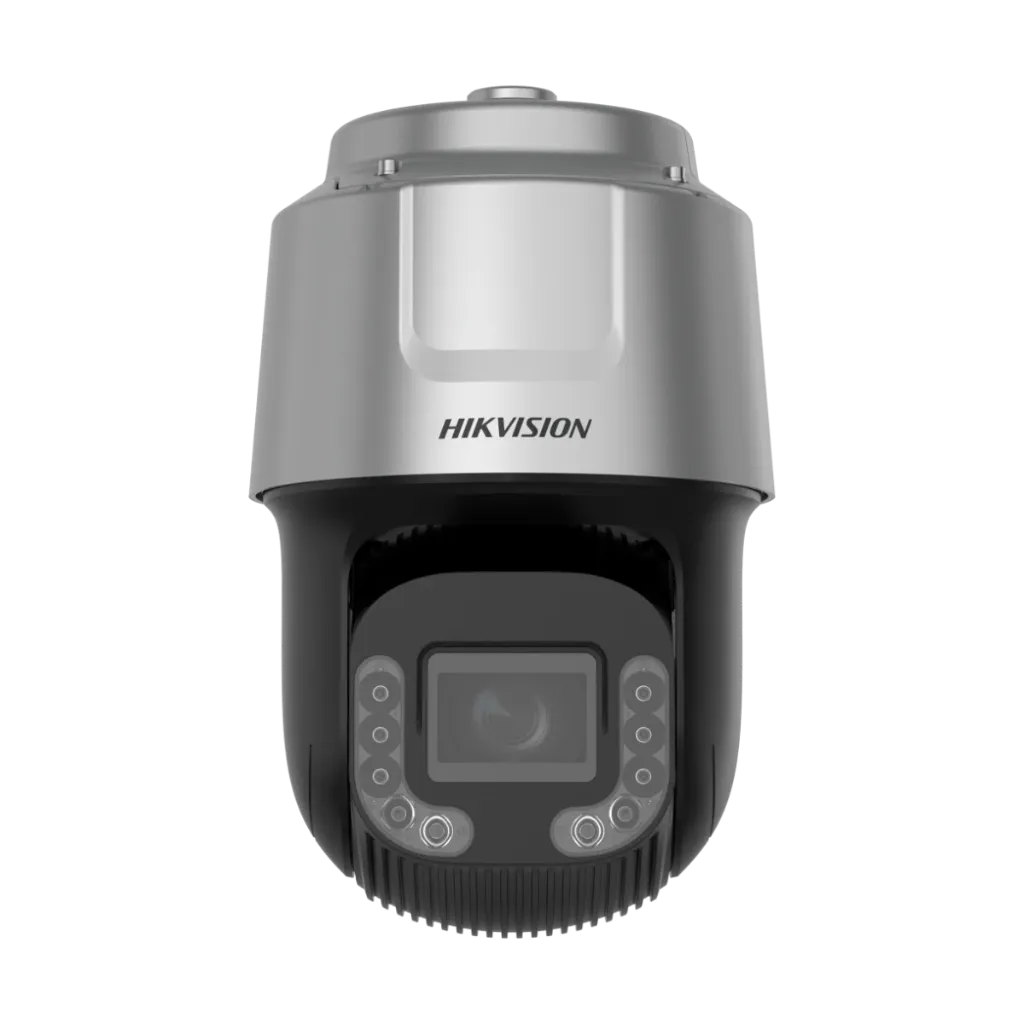

DS-2DF8C442IXG1-ELWY
Ultra Series 8-inch 4MP 42x IR PTZ Camera
- 42x optical zoom, pans up to 280°/s
- Illumination: IR 400m
- Auto-tracking 3.0: follows a moving target
- Licence plate recognition (checkpoint)
DS-2DF8C442IXG1-ELWY
Ultra Series 8-inch 4MP 42x IR PTZ Camera
- 42x optical zoom, pans up to 280°/s
- Illumination: IR 400m
- Auto-tracking 3.0: follows a moving target
- Licence plate recognition (checkpoint)
Key specs
- Ultra Series, 8-inch, 4MP (2688 × 1520), 1/1.8" sensor, 150 dB WDR
- 42x optical zoom, 6 to 252 mm, EIS (gyroscope); pans up to 280°/s
- Illumination: IR 400m
- Line crossing, intrusion, region entrance and exit, people and vehicle filter
- Face capture, up to 30 faces at once; face comparison libraries
- Auto-tracking 3.0
- Licence plate recognition (checkpoint scenario)
- Wiper (rain-sensing), alarm in/out 7/2, microSD up to 256 GB
- IP67, IK10, TVS 6000 V, NEMA 4X anti-corrosion; power: Hi-PoE (802.3bt) or 36 VDC
| Camera | |
|---|---|
| Max. resolution | 2688 × 1520 (4MP) |
| Image sensor | 1/1.8" |
| WDR | 150 dB |
| Lens and light | |
| Focal length | 6 to 252 mm |
| Optical zoom | 42x |
| Image stabilisation | EIS (gyroscope) |
| Illumination | IR 400m |
| Pan and tilt | |
| Size | 8-inch speed dome |
| Pan / tilt speed | up to 280°/s / 250°/s (preset) |
| Dimensions | Ø 267 mm × 430 mm |
| Smart functions | |
| Events | line crossing, intrusion, region entrance and exit |
| Deep learning | people and vehicle classification |
| Face capture | up to 30 faces at once |
| Face comparison | Yes, face libraries |
| Smart tracking | Auto-tracking 3.0 |
| Licence plate recognition | checkpoint scenario |
| General | |
| Wiper | Yes, rain-sensing |
| Alarm in / out | 7/2 |
| Memory card | microSD up to 256 GB |
| Power | Hi-PoE (802.3bt) or 36 VDC, max. 62 W |
| Protection | IP67, IK10, TVS 6000 V, NEMA 4X anti-corrosion |
Know before you buy
Quick answers about the DS-2DF8C442IXG1-ELWY, and how it compares.
How far can it see?
42x optical zoom (6 to 252 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 400m.
How fast does it turn?
It pans at up to 280°/s and tilts at up to 250°/s (preset speed).
Does it follow a moving target?
Yes. With auto-tracking 3.0 the camera pans, tilts and zooms to keep a moving target in view.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit. Deep learning tells people from vehicles, so leaves, rain and animals raise fewer false alarms. It also captures faces (up to 30 at once). At checkpoints it can read licence plates.
How is it powered?
A Hi-PoE (802.3bt) switch port powers it over the network cable; a standard PoE or PoE+ port is not enough. Or use a 36 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
