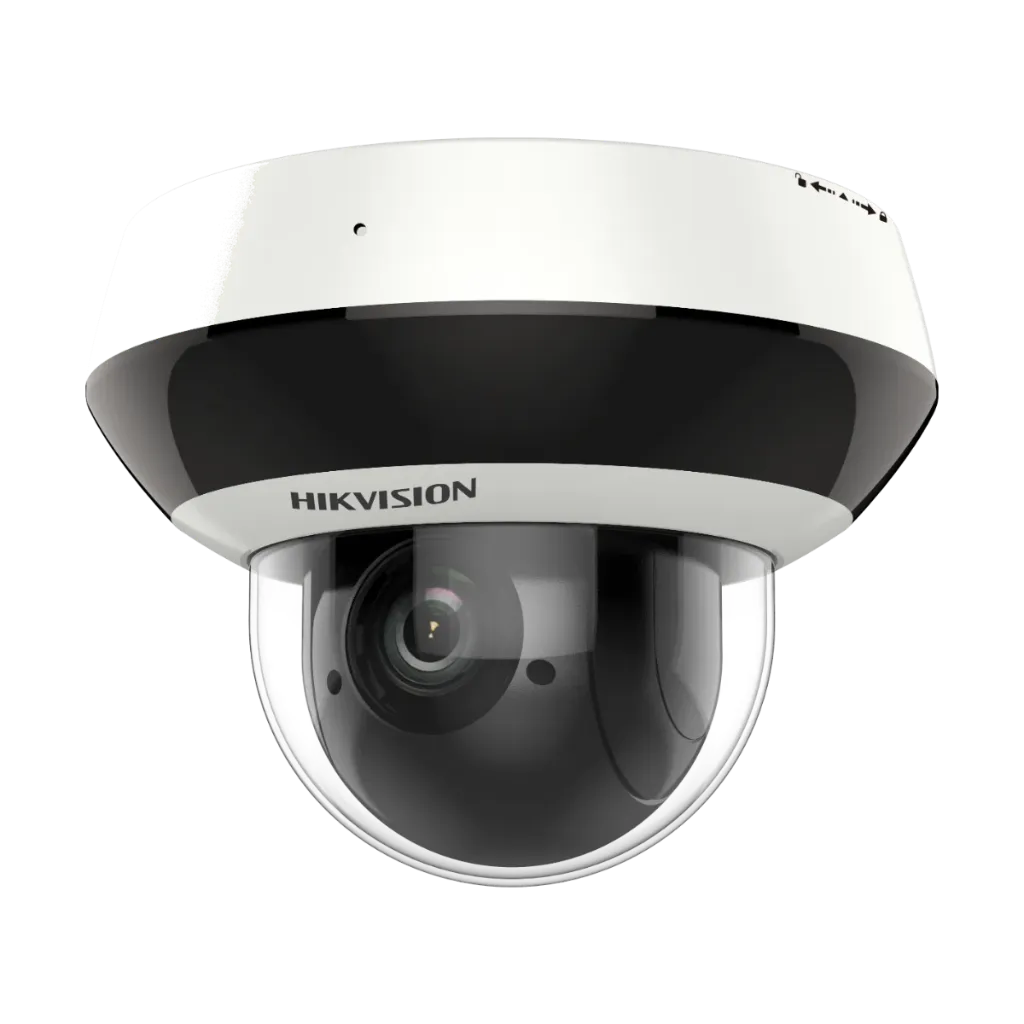

DS-2DE2A204IW-DE3 (S6)
Value Series 2-inch 2MP 4x IR PTZ Camera
- 4x optical zoom, pans up to 100°/s
- Illumination: IR 20m
- Line crossing and intrusion alerts
DS-2DE2A204IW-DE3 (S6)
Value Series 2-inch 2MP 4x IR PTZ Camera
- 4x optical zoom, pans up to 100°/s
- Illumination: IR 20m
- Line crossing and intrusion alerts
Key specs
- Value Series, 2-inch, 2MP (1920 × 1080), 1/3" sensor, 120 dB WDR
- 4x optical zoom, 2.8 to 12 mm, EIS; pans up to 100°/s
- Illumination: IR 20m
- Line crossing, intrusion, region entrance and exit, unattended baggage and object removal
- microSD up to 256 GB
- IP66, IK10, TVS 4000 V; power: PoE (802.3af) or 12 VDC
|
Camera Module |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
1920 × 1080 |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/1 s to 1/30,000 s |
|
Day & Night |
IR cut filter |
|
Zoom |
4x optical, 16x digital |
|
Slow Shutter |
Yes |
|
Lens |
|
|
Focal Length |
2.8 to 12 mm |
|
FOV |
Horizontal FOV 100.5° to 32.6°, vertical FOV 52.8° to 18.3°, diagonal FOV 120.2° to 37.5° |
|
Focus |
Auto, semi-auto, manual |
|
Aperture |
Max. F1.5 |
|
Zoom Speed |
Approx. 2 s |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
IR Distance: up to 20 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
PTZ |
|
|
Movement Range (Pan) |
0° to 355° |
|
Movement Range (Tilt) |
0° to 90° |
|
Pan Speed |
Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s |
|
Proportional Zoom |
Yes |
|
Presets |
300 |
|
Preset Freezing |
Yes |
|
Park Action |
Preset |
|
3D Positioning |
Yes |
|
PTZ Status Display |
Yes |
|
Scheduled Task |
Preset, dome reboot, dome adjust |
|
Power-off Memory |
Yes |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264 / MJPEG |
|
H.264 Type |
Baseline Profile / Main Profile / High Profile |
|
H.265 Type |
Main profile |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
8 fixed regions for each stream |
|
Audio |
|
|
Audio Compression |
G.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
|
Audio Bit rate |
64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32-192 Kbps (MP2L2) / 32 Kbps (PCM) / 16-64 Kbps (AAC) |
|
Audio Sampling Rate |
AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
>52 dB |
|
Defog |
Digital defog |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
24 programmable polygon privacy masks, mask color or mosaic configurable |
|
Regional Focus |
Yes |
|
Regional Exposure |
Yes |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support microSD / SDHC / SDXC card, up to 256 GB |
|
Built-in Microphone |
1 built-in microphone, picking up sounds in the radius up to 5 meters |
|
Audio |
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|
Reset |
Yes |
|
Power Output |
12 VDC, max. 60 mA |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception |
|
Smart Event |
Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset) |
|
General |
|
|
Power |
12 VDC, Max. 9.2 W; PoE (802.3af) |
|
Dimension |
Ø 130.7 mm ×101.7 mm (Ø 5.15" × 4.00") |
|
Weight |
Approx. 530 g (1.17 lb.) |
|
Operating Condition |
-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing) |
|
General Function |
Mirror, password protection |
|
Approval |
|
|
Protection |
IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
Know before you buy
Quick answers about the DS-2DE2A204IW-DE3 (S6), and how it compares.
How far can it see?
4x optical zoom (2.8 to 12 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR 20m.
How fast does it turn?
It pans at up to 100°/s and tilts at up to 100°/s (preset speed).
Which alerts does it give?
Line crossing, intrusion, region entrance and exit, unattended baggage and object removal.
How is it powered?
A PoE (802.3af) switch port powers it over the network cable, or use a 12 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
