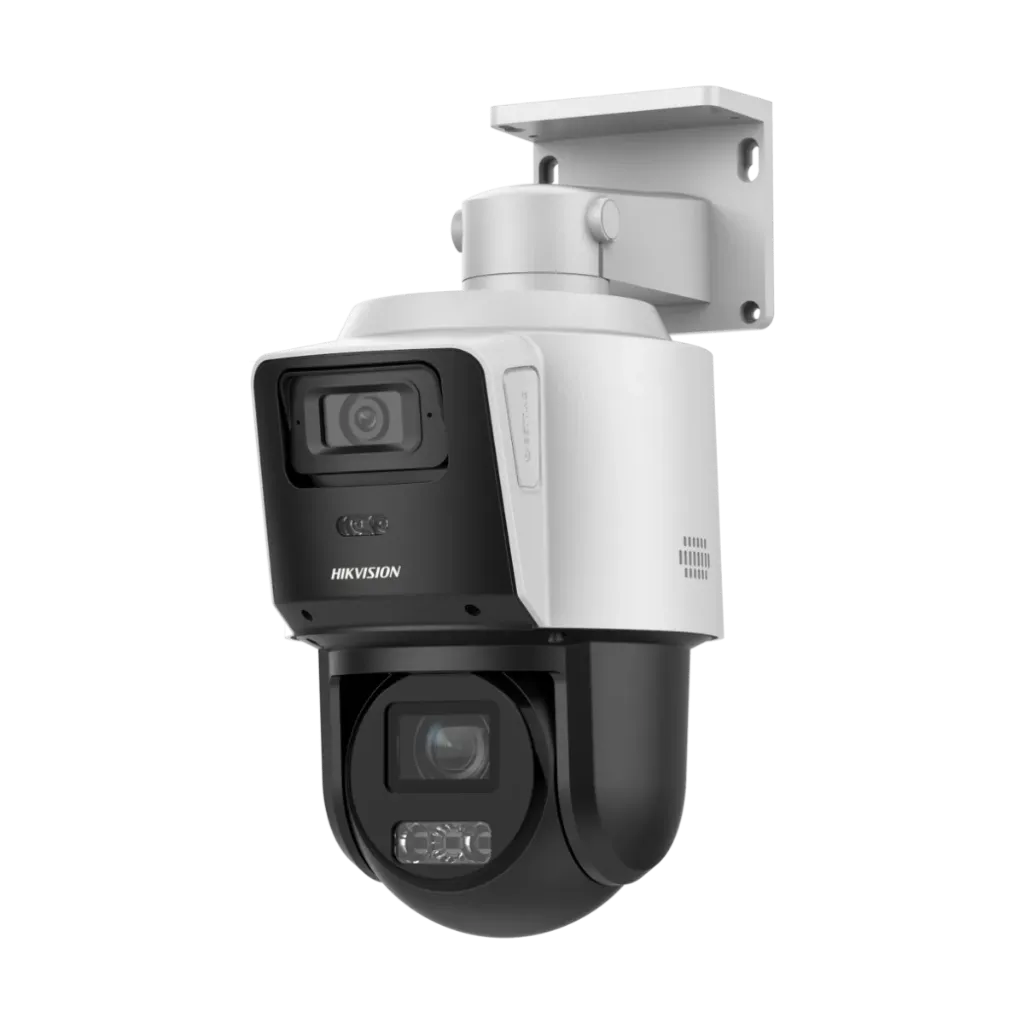

DS-2SE3C404MWG-E/14 2.8mm
Value Series 3-inch TandemVu: 4MP wide lens + 4MP 4x PTZ
- Wide 114.9° lens plus 4x optical zoom, pans up to 30°/s
- Illumination: IR/White 40m/30m
- Line crossing and intrusion alerts
- Built-in microphone and speaker
DS-2SE3C404MWG-E/14 2.8mm
Value Series 3-inch TandemVu: 4MP wide lens + 4MP 4x PTZ
- Wide 114.9° lens plus 4x optical zoom, pans up to 30°/s
- Illumination: IR/White 40m/30m
- Line crossing and intrusion alerts
- Built-in microphone and speaker
Key specs
- Value Series, 3-inch; PTZ lens: 4MP (2560 × 1440), 4x optical zoom, 2.8 to 12 mm; pans up to 30°/s
- Wide lens: 4MP (2560 × 1440), 2.8 mm, 114.9° view
- Illumination: IR/White 40m/30m (IR on the PTZ lens, white light on the wide lens, which also has IR up to 30 m)
- Line crossing, intrusion, region entrance and exit
- Built-in microphone and speaker
- microSD up to 512 GB
- IP66; power: PoE+ or 12 VDC
|
Camera |
|
|
Image Sensor |
[Bullet channel]: 1/2.8" Progressive Scan CMOS [PTZ channel]: 1/2.8" progressive scan CMOS |
|
Min. Illumination |
[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1 s to 1/30,000 s |
|
Slow Shutter |
yes |
|
Zoom |
[PTZ channel] 4 × optical, 16 × digital |
|
Day & Night |
ICR |
|
Max. Resolution |
[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
|
Lens |
|
|
Focus |
auto, manual, semi-auto |
|
Focal Length |
[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical |
|
Zoom Speed |
[PTZ channel]: approx. 3.3 s |
|
FOV |
[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7° [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39° |
|
Aperture |
[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 |
|
Illuminator |
|
|
Supplement Light Type |
[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR |
|
Smart Supplement Light |
Yes |
|
Supplement Light Range |
[PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m |
|
PTZ |
|
|
Movement Range (Pan) |
0° to 350° |
|
Movement Range (Tilt) |
[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° |
|
Pan Speed |
pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
|
Tilt Speed |
tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
|
Proportional Pan |
yes |
|
Presets |
300 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Power-off Memory |
yes |
|
Park Action |
preset, patrol scan |
|
3D Positioning |
Yes |
|
PTZ Status Display |
Yes |
|
Preset Freezing |
Yes |
|
Scheduled Task |
dome reboot, preset, patrol scan, dome adjust, aux output |
|
Video |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Main Stream |
[Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
[Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Third Stream |
[Bullet channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
H.265, H.264, MJPEG |
|
Video Bit Rate |
32 kbps to 16384 kbps |
|
H.264 Type |
main profile, baseline profile, high profile |
|
H.265 Type |
main profile |
|
Scalable Video Coding (SVC) |
yes |
|
Network |
|
|
Network Storage |
NAS (NFS, SMB/ CIFS), ANR, ANR |
|
Protocols |
TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, Qos, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4/IPv6, DDNS, ICMP, UPnP |
|
Image |
|
|
Image Settings |
sharpness, saturation, brightness, contrast |
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
≥ 52 dB |
|
Defog |
Digital defog |
|
Day/Night Switch |
day, night, auto, scheduled-switch |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
|
Regional Focus |
[Bullet channel] No, [PTZ channel] Yes |
|
Regional Exposure |
[Bullet channel] No, [PTZ channel] Yes |
|
Image Parameters Switch |
Yes |
|
Interface |
|
|
Ethernet Interface |
RJ45, self-adaptive 10M/100M Ethernet port |
|
On-board Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
|
Reset |
yes |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception, alarm input and output |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection |
|
Linkage |
[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
|
General |
|
|
General Function |
mirror, watermark, IP address filter, password protection |
|
Power |
12 VDC, PoE+ |
|
Operating Condition |
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
|
Demist |
Demist by heating the glass |
|
Material |
PC |
|
Dimension |
311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14") |
|
Weight |
Approx. 1.37 kg (3.02 lb.) |
|
Approval |
|
|
Protection |
IP66 Standard, Surge Protection and Voltage Transient Protection |
Know before you buy
Quick answers about the DS-2SE3C404MWG-E/14 2.8mm, and how it compares.
How far can it see?
4x optical zoom (2.8 to 12 mm) brings distant scenes close without losing detail, unlike digital zoom. At night: illumination IR/White 40m/30m (IR on the PTZ lens, white light on the wide lens).
How fast does it turn?
It pans at up to 30°/s and tilts at up to 30°/s (preset speed).
Why two lenses?
The wide 4MP lens (114.9° view) records the whole area all the time, while the PTZ lens zooms in on what matters, so nothing is missed while the PTZ looks elsewhere.
Which alerts does it give?
Line crossing, intrusion, region entrance and exit.
How is it powered?
A PoE+ switch port powers it over the network cable, or use a 12 VDC power supply. See our PoE switches.
What else do I need?
A Hikvision NVR to record it, a switch port or power supply, a network cable and a wall or pole bracket. Tell us the site and our engineers send a free BOQ.
Can I buy it online?
PTZ cameras are installed products, so we start with a free pre-sales consultation: our engineers check the distance, mounting and power for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi. 1 year warranty, carry-in.
