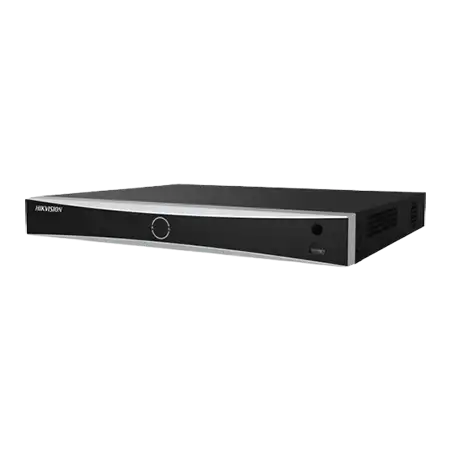

DS-7616NXI-I2/S
16-ch AcuSense 4K NVR, I Series

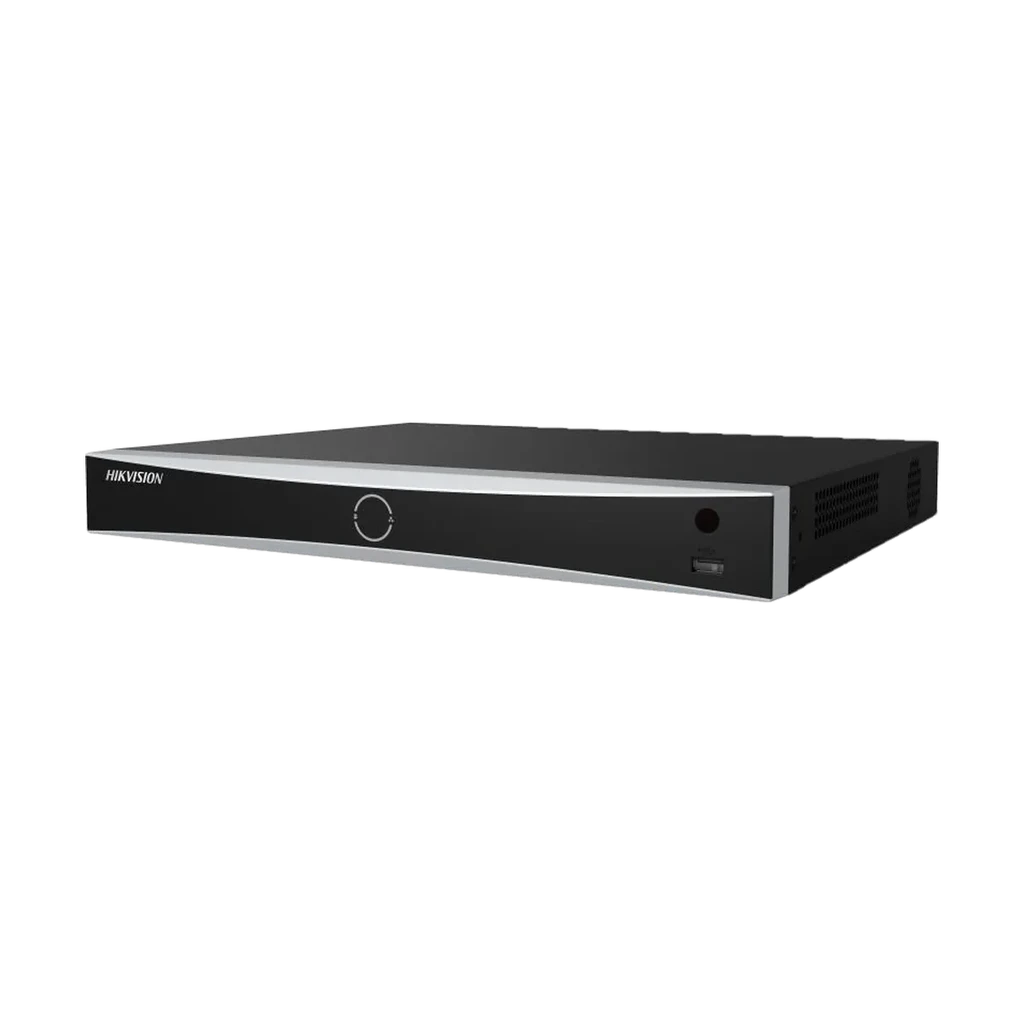

DS-7616NXI-I2/S
16-ch AcuSense 4K NVR, I Series
Key specs
- 16 IP camera channels
- 2 hard drive slots (SATA)
- AI: perimeter protection, face recognition, AcuSearch, Motion Detection 2.0
- Face recognition: the NVR finds faces on 4 channels up to 8MP from normal cameras; compares faces on 8 channels with face-capture cameras; face library up to 50,000
- AcuSearch: all channels with AcuSense cameras (AcuSearch on in the camera)
- Perimeter protection by the NVR: 4 channels at 2MP; all channels with AcuSense cameras
- Motion Detection 2.0 by the NVR: all channels (Hikvision cameras)
- Decoding: up to 32 cameras at 1080p
- H.265+ / H.265 / H.264+ / H.264
|
Intelligent Analytics |
|
|
AI by NVR |
Facial recognition, perimeter protection, motion detection 2.0 |
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
|
Engine |
1, engine mode is adjustable |
|
Facial Recognition |
|
|
Face Picture Library |
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
|
Face Picture Comparison |
8-ch |
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
Facial Detection and Analytics Performance |
4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
|
Motion Detection 2.0 |
|
|
By NVR |
All channels for Hikvision cameras |
|
By Camera |
All channels |
|
Perimeter Protection |
|
|
By NVR |
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
|
By Camera |
All channels |
|
ANPR |
|
|
By Camera |
All channels |
|
Vehicle Attributes |
Plate number, license plate color, license plate type |
|
Plate Attributes |
Vehicle brand, vehicle color, vehicle type |
|
Video and Audio |
|
|
IP Video Input |
16-ch |
|
Incoming Bandwidth |
160 Mbps |
|
Outgoing Bandwidth |
256 Mbps |
|
HDMI Output |
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
VGA Output |
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
Video Output Mode |
HDMI/VGA independent output |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Decoding |
|
|
Decoding Format |
H.265+ / H.265 / H.264+ / H.264 |
|
Recording Resolution |
32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA 32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
|
Synchronous playback |
16-ch |
|
Decoding Capability |
Enable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps) |
|
Audio Compression |
G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM |
|
Dual-Stream Recording |
Support |
|
Stream Type |
Video, Video & Audio |
|
Network |
|
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
API |
ONVIF (profile S/G); SDK; ISAPI |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 14 TB capacity for each disk |
|
Alarm In/Out |
4/1 |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
≤ 30 W (without HDD) |
|
Working Temperature |
-10° C to 55° C (14° F to 131° F) |
|
Working Humidity |
10% to 90% |
|
Chassis |
1U chassis |
|
Dimension (W × D × H) |
385 × 317 × 52 mm (15.2"× 12.5" × 2.0") |
|
Weight |
≤ 2.5 kg (without HDD, 5.5 lb.) |
|
Certification |
|
|
Obtained Certification |
CE, CB, REACH, WEEE, UKCA, LOA |
|
CE |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
Know before you buy
Quick answers about the DS-7616NXI-I2/S, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
What are AcuSense, AcuSearch and AcuSeek, and how does this NVR use them?
AcuSense tells people and vehicles apart from other movement, so leaves, rain, animals and car lights cause far fewer false alarms. It drives Motion Detection 2.0 (people and vehicle alerts) and perimeter protection (line crossing and intrusion). AcuSearch finds a person or vehicle in recordings by features such as clothing colour or vehicle type. AcuSeek searches recordings by typed words, like "white car at the gate".
With AcuSense cameras the camera does the detection, so these work on all channels. With normal cameras the NVR does it itself, only on a limited number of channels. AcuSearch and AcuSeek on all channels need AcuSense cameras with AcuSearch switched on. Key Specs shows what this model does in each case.
Can it run all the AI functions at once?
No, one at a time. This NVR has one AI engine: you choose which AI function it runs, for example perimeter protection, face recognition or AcuSearch. Detection done by AcuSense cameras themselves does not use this engine. If you need two together, choose a model that runs 2 AI engines at once.
Will it add AI to my older cameras?
Yes. Motion Detection 2.0 runs on the NVR itself, so older cameras without AI also get people and vehicle alerts, with far fewer false alarms from animals, leaves and car lights.
Can it recognise faces on all cameras?
From normal cameras, only on a few channels (see Key Specs). For face recognition on all channels, use 2 Line face-capture cameras. The NVR's AI engine is then set to face recognition, so perimeter protection and the other AI functions do not run.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
