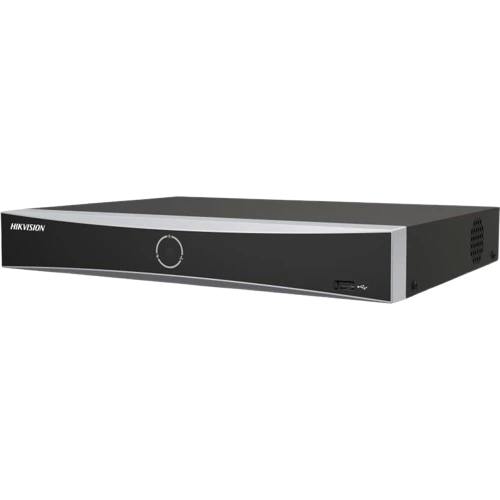

DS-7604NXI-K1
4-ch AcuSense 4K NVR, K Series
DS-7604NXI-K1
4-ch AcuSense 4K NVR, K Series
Key specs
- 4 IP camera channels
- 1 hard drive slot (SATA)
- AI: Motion Detection 2.0, perimeter protection, face recognition
- Face recognition: the NVR finds faces on 1 channel at 8MP from normal cameras; compares faces on 4 channels with face-capture cameras; face library up to 20,000
- Perimeter protection by the NVR: 1 channel at 4MP; all channels with AcuSense cameras
- Decoding: 2 cameras at 12MP or 16 at 1080p (AI off; fewer with AI on)
- Up to 40 Mbps incoming bandwidth
- H.265+ / H.265 / H.264+ / H.264
|
Intelligent Analytics |
|
|
|
AI by Device |
Facial recognition, perimeter protection, motion detection 2.0 |
|
|
AI by Camera |
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
|
|
Facial Recognition |
|
|
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
|
Face Picture Library |
Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB) |
|
|
Facial Detection and Analytics Performance |
1-ch, 4 MP |
|
|
Face Picture Comparison (Captured from Camera) |
2-ch |
|
|
Motion Detection 2.0 |
|
|
|
By Device |
All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
|
|
By Camera |
All channels |
|
|
Perimeter Protection |
|
|
|
By Device |
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|
|
By Camera |
All channels |
|
|
Video and Audio |
|
|
|
IP Video Input |
4-ch |
|
|
Incoming Bandwidth |
40 Mbps |
|
|
Outgoing Bandwidth |
80 Mbps |
|
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
|
VGA Output |
1-ch, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
|
Video Output Mode |
HDMI1/VGA simultaneous output as default, HDMI1/VGA can be set to independent output |
|
|
CVBS Output |
N/A |
|
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
|
Decoding |
|
|
|
Decoding Format |
H.265 / H.265+ / H.264+ / H.264 |
|
|
Recording Resolution |
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA |
|
|
Synchronous Playback |
4-ch |
|
|
Decoding Capability |
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
|
Stream Type |
Video, Video & Audio |
|
|
Network |
||
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
|
Auxiliary Interface |
||
|
SATA |
1 SATA interface |
|
|
Capacity |
Up to 10 TB capacity for each HDD |
|
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
|
General |
||
|
Power Supply |
12 VDC, 1.5 A |
|
|
Consumption |
≤ 10 W (without HDD) |
|
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
|
Working Humidity |
10% to 90% |
|
|
Dimension (W × D × H) |
320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
|
|
Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
|
|
Certification |
||
|
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|
|
Obtained Certification |
CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA |
|
Know before you buy
Quick answers about the DS-7604NXI-K1 (B), and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
What are AcuSense, AcuSearch and AcuSeek, and how does this NVR use them?
AcuSense tells people and vehicles apart from other movement, so leaves, rain, animals and car lights cause far fewer false alarms. It drives Motion Detection 2.0 (people and vehicle alerts) and perimeter protection (line crossing and intrusion). AcuSearch finds a person or vehicle in recordings by features such as clothing colour or vehicle type. AcuSeek searches recordings by typed words, like "white car at the gate".
With AcuSense cameras the camera does the detection, so these work on all channels. With normal cameras the NVR does it itself, only on a limited number of channels. AcuSearch and AcuSeek on all channels need AcuSense cameras with AcuSearch switched on. Key Specs shows what this model does in each case.
What is the difference between the (D) and (E) versions?
(E) is the newer version with NVR 5.0 firmware and a new interface. It adds AcuSearch, Motion Detection 2.0 on all channels (cameras up to 4MP), perimeter protection and face recognition on 2 cameras up to 4MP (or 1 camera at 5 to 8MP), face comparison on 8 channels (4 on the K1) and a face library of 50,000.
(D) gives Motion Detection 2.0 on all channels, also for older cameras, perimeter protection on 1 channel (K1) or 2 channels (K2, K4), face recognition on 1 camera, face comparison on 4 channels and a face library of 20,000. No AcuSearch. Models with no letter work like the (D).
Can it run all the AI functions at once?
No, one at a time. This NVR has one AI engine: you choose which AI function it runs, for example perimeter protection, face recognition or AcuSearch. Detection done by AcuSense cameras themselves does not use this engine. If you need two together, choose a model that runs 2 AI engines at once.
Will it add AI to my older cameras?
Yes. Motion Detection 2.0 runs on the NVR itself, so older cameras without AI also get people and vehicle alerts, with far fewer false alarms from animals, leaves and car lights.
Can it recognise faces on all cameras?
From normal cameras, only on a few channels (see Key Specs). For face recognition on all channels, use 2 Line face-capture cameras. The NVR's AI engine is then set to face recognition, so perimeter protection and the other AI functions do not run.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
