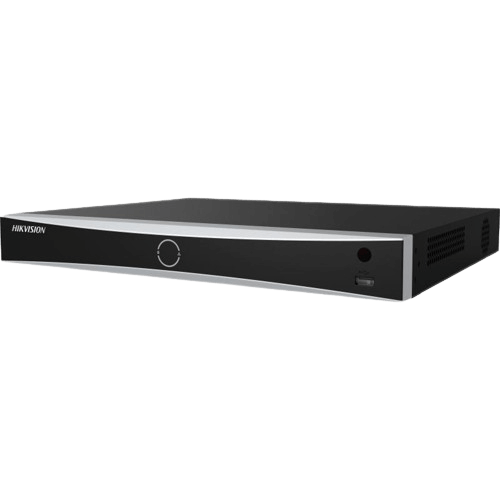

iDS-7616NXI-M2/X
16-ch DeepinMind AI NVR, M Series
iDS-7616NXI-M2/X
16-ch DeepinMind AI NVR, M Series
Key specs
- 16 IP camera channels
- 2 hard drive slots (SATA)
- AI: perimeter protection, face recognition, video structuralization, AcuSearch
- Face recognition: the NVR finds faces on 8 channels at 2MP, 4 at 4MP or 2 at 8MP from normal cameras; compares faces on 16 channels with face-capture cameras; face library up to 100,000
- AcuSearch: all channels with AcuSense cameras; up to 4 channels from normal cameras
- Perimeter protection with AcuSense cameras: all channels
- Decoding: 2 cameras at 32MP or 16 at 4MP
- H.265+ / H.265 / H.264+ / H.264
|
Intelligent Analytics |
||
|
AI by NVR |
Facial recognition, perimeter protection, video structuralization, throwing objects from building |
|
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA |
|
|
Engine |
1 engine can run an intelligent algorithm, engine mode is adjustable |
|
|
Facial Recognition |
||
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
|
Face Picture Library |
Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library |
|
|
Face Picture Comparison (Captured from Camera) |
16-ch; Comparison speed: 24 pictures per second |
|
|
Facial Detection and Analytics Performance |
8-ch 2 MP, up to 8 MP |
|
|
Perimeter Protection |
||
|
By NVR |
12-ch 2 MP, up to 8 MP |
|
|
By Camera |
All channels |
|
|
Video Structuralization |
||
|
Structured Analysis |
6-ch 2 MP, up to 8 MP |
|
|
Face Picture Library |
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 500,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
|
Face Picture Comparison |
8-ch; Comparison speed: 16 pictures per second |
|
|
Throwing Objects from Building |
||
|
By NVR |
8-ch 2 MP, up to 8 MP |
|
|
By Camera |
All channels |
|
|
ANPR |
||
|
By Camera |
All channels |
|
|
Plate Attributes |
Vehicle brand, vehicle color, vehicle type |
|
|
Vehicle Attributes |
Plate number, license plate color, license plate type |
|
|
Video and Audio |
||
|
IP Video Input |
16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
|
Incoming Bandwidth |
256 Mbps |
|
|
Outgoing Bandwidth |
256 Mbps |
|
|
HDMI Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
VGA Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Video Output Mode |
HDMI/VGA independent output |
|
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
|
Decoding |
||
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
|
Decoding Capability |
2-ch@32MP (30 fps)/2-ch@24MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps) |
|
|
Synchronous Playback |
16-ch |
|
|
Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / 720p *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
|
Network |
||
|
Remote Connection |
128 |
|
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
|
Auxiliary Interface |
||
|
SATA |
2 SATA interfaces; 3.5-inch HDD |
|
|
eSATA |
1 eSATA interface |
|
|
Capacity |
Up to 14 TB capacity for each HDD |
|
|
Serial Interface |
N/A |
|
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
|
Alarm In/Out |
4/1 |
|
|
General |
||
|
Power Supply |
12 VDC, 5 A |
|
|
Consumption |
≤ 50 W (without HDD) |
|
|
Working Temperature |
-10 to 55° C (14 to 131° F) |
|
|
Working Humidity |
10 to 90% |
|
|
Dimension (W × D × H) |
385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
|
|
Weight |
≤ 3 kg (without HDD, 2.2 lb.) |
|
|
Certification |
||
|
Obtained Certification |
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
|
CE |
EN 55032: 2015+A1:2020, ENIEC61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020 |
|
Know before you buy
Quick answers about the iDS-7616NXI-M2/X, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
What are AcuSense, AcuSearch and AcuSeek, and how does this NVR use them?
AcuSense tells people and vehicles apart from other movement, so leaves, rain, animals and car lights cause far fewer false alarms. It drives Motion Detection 2.0 (people and vehicle alerts) and perimeter protection (line crossing and intrusion). AcuSearch finds a person or vehicle in recordings by features such as clothing colour or vehicle type. AcuSeek searches recordings by typed words, like "white car at the gate".
With AcuSense cameras the camera does the detection, so these work on all channels. With normal cameras the NVR does it itself, only on a limited number of channels. AcuSearch and AcuSeek on all channels need AcuSense cameras with AcuSearch switched on. Key Specs shows what this model does in each case.
Can it run all the AI functions at once?
No, one at a time. This NVR has one AI engine: you choose which AI function it runs, for example perimeter protection, face recognition or AcuSearch. Detection done by AcuSense cameras themselves does not use this engine. If you need two together, choose a model that runs 2 AI engines at once.
Can it recognise faces on all cameras?
From normal cameras, only on a few channels (see Key Specs). For face recognition on all channels, use 2 Line face-capture cameras. The NVR's AI engine is then set to face recognition, so perimeter protection and the other AI functions do not run.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
