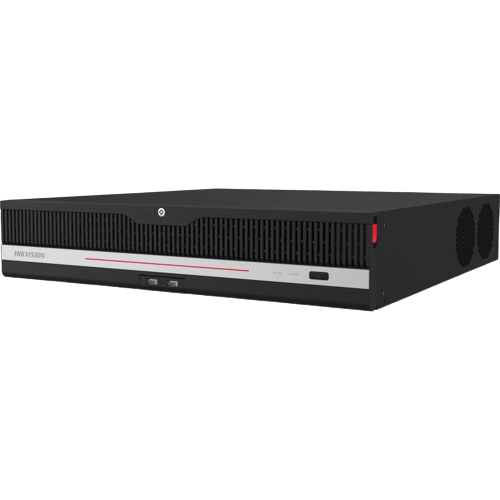

iDS-9664NXI-M8/X
64-ch DeepinMind AI NVR, M Series
iDS-9664NXI-M8/X
64-ch DeepinMind AI NVR, M Series
Key specs
- 64 IP camera channels
- 8 hard drive slots (SATA)
- AI: perimeter protection, face recognition, video structuralization, AcuSearch
- Face recognition: the NVR finds faces on 16 channels at 2MP, 8 at 4MP or 4 at 8MP from normal cameras; compares faces on 48 channels with face-capture cameras; face library up to 100,000
- AcuSearch: all channels with AcuSense cameras; up to 8 channels from normal cameras
- Perimeter protection with AcuSense cameras: all channels
- RAID 0, 1, 5, 6, 10
- Decoding: 2 cameras at 32MP or 32 at 1080p
- H.265+ / H.265 / H.264+ / H.264
|
Intelligent Analytics |
||
|
AI by NVR |
Facial recognition, perimeter protection, video structuralization, throwing objects from building |
|
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
|
|
Engine |
2, each engine can run an intelligent algorithm, engine mode is adjustable |
|
|
Facial Recognition |
||
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
|
Face Picture Library |
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
|
Face Picture Comparison (Captured from Camera) |
48-ch (24-ch for each engine); Comparison speed: 48 pictures per second |
|
|
Facial Detection and Analytics performance |
16-ch 2 MP (8-ch for each engine), up to 8 MP |
|
|
Perimeter Protection |
||
|
By NVR |
24-ch 2 MP (12-ch for each engine), up to 8 MP |
|
|
By Camera |
All channels |
|
|
Video Structuralization |
||
|
Structured Analysis |
12-ch 2 MP (6-ch for each engine), up to 8 MP |
|
|
Face Picture Library |
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
|
Face Picture Comparison |
16-ch; Comparison speed: 32 pictures per second |
|
|
Throwing Objects from Building |
||
|
By NVR |
16-ch 2 MP (8-ch for each engine), up to 8 MP) |
|
|
By Camera |
All channels |
|
|
ANPR |
||
|
By Camera |
All channels |
|
|
Plate Attributes |
Plate number, license plate color, license plate type |
|
|
Vehicle Attributes |
Vehicle brand, vehicle color, vehicle type |
|
|
Video and Audio |
|
|
|
IP Video Input |
64-ch Up to 32 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
|
Incoming Bandwidth |
400 Mbps |
|
|
Outgoing Bandwidth |
400 Mbps |
|
|
HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/6 0Hz, 1920 × 1080/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
|
|
VGA 1 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
VGA 2 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Video Output Mode |
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
|
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
|
Audio Output |
2-ch, RCA (Linear, 1 KΩ) |
|
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
|
Decoding |
|
|
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
|
Decoding Capability |
2-ch@32MP (30 fps) / 2-ch@24MP (30 fps) / 4-ch@12MP (20 fps) / 8-ch@8MP (25 fps) / 16-ch@4MP (30 fps) / 32-ch@1080p (30 fps) |
|
|
Synchronous Playback |
16-ch |
|
|
Recording Resolution |
32 MP/24
MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p |
|
|
Network |
|
|
|
Remote Connection |
128 |
|
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
|
RAID |
|
|
|
RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
|
|
Auxiliary Interface |
|
|
|
DC 12V |
12 VDC, 1 A power output |
|
|
SATA |
8 SATA interfaces; 3.5-inch HDD |
|
|
eSATA |
1 eSATA interface |
|
|
Capacity |
Up to 14 TB capacity for each HDD |
|
|
Serial Interface |
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
|
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
|
Alarm In/Out |
16/9 |
|
|
General |
|
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
|
Consumption |
≤ 50 W (without HDD) |
|
|
Working Temperature |
-10 to 55° C (14 to 131° F) |
|
|
Working Humidity |
10 to 90% |
|
|
Dimension (W × D × H) |
445 × 465 × 93 mm (17.5"× 18.3" × 3.7") |
|
|
Weight |
≤ 10 kg (without HDD, 28.7 lb.) |
|
|
Certification |
|
|
|
Obtained Certification |
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
Know before you buy
Quick answers about the iDS-9664NXI-M8/X, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
What are AcuSense, AcuSearch and AcuSeek, and how does this NVR use them?
AcuSense tells people and vehicles apart from other movement, so leaves, rain, animals and car lights cause far fewer false alarms. It drives Motion Detection 2.0 (people and vehicle alerts) and perimeter protection (line crossing and intrusion). AcuSearch finds a person or vehicle in recordings by features such as clothing colour or vehicle type. AcuSeek searches recordings by typed words, like "white car at the gate".
With AcuSense cameras the camera does the detection, so these work on all channels. With normal cameras the NVR does it itself, only on a limited number of channels. AcuSearch and AcuSeek on all channels need AcuSense cameras with AcuSearch switched on. Key Specs shows what this model does in each case.
Can it run 2 AI functions at once?
Yes. This NVR runs 2 AI engines at once, so two AI functions work together. Most other Hikvision NVRs run one at a time.
Can it recognise faces on all cameras?
From normal cameras, only on a few channels (see Key Specs). For face recognition on all channels, use 2 Line face-capture cameras. This NVR has more than one AI engine, so while one engine does face recognition, the other keeps running another AI function.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
