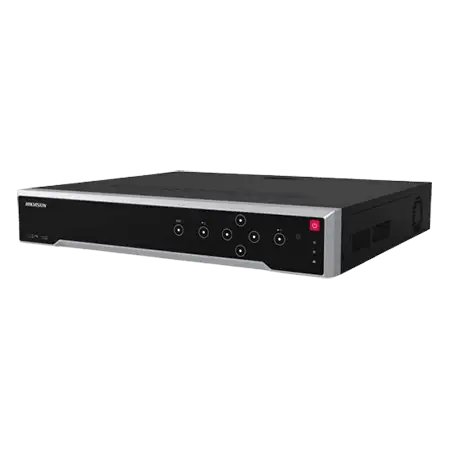

DS-7764NI-M4
64-ch 8K NVR, M Series
- 8K or dual 4K output, 2 HDMI and 1 VGA
- 400 Mbps in and 400 Mbps out
- Plays back 2 cameras at 32MP or 32 at 1080p
- Up to 8 IP speakers can be connected
DS-7764NI-M4
64-ch 8K NVR, M Series
- 8K or dual 4K output, 2 HDMI and 1 VGA
- 400 Mbps in and 400 Mbps out
- Plays back 2 cameras at 32MP or 32 at 1080p
- Up to 8 IP speakers can be connected
Key specs
- 64 IP camera channels
- 4 hard drive slots (SATA)
- Decoding: 2 cameras at 32MP or 32 at 1080p
- Up to 400 Mbps incoming bandwidth, 400 Mbps outgoing
- 8K or dual 4K video output
- H.265+ / H.265 / H.264+ / H.264
|
Video and Audio |
|
|
IP Video Input |
64-ch Up to 32 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Incoming Bandwidth |
400 Mbps |
|
Outgoing Bandwidth |
400 Mbps |
|
HDMI 1 Output |
8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
|
HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
|
VGA Output |
1920 × 1080 / 60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Video Output Mode |
HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265+ / H.265 / H.264+ / H.264 |
|
Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p / 720p *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Synchronous Playback |
16-ch |
|
Decoding Capability |
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
|
Dual-Stream Recording |
Support |
|
Stream Type |
Video, Video & Audio |
|
Network |
|
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
|
RAID |
|
|
RAID Type |
N/A |
|
Auxiliary Interface |
|
|
eSATA |
1 eSATA interface |
|
SATA |
4 SATA interfaces |
|
Capacity |
Up to 16 TB capacity for each HDD |
|
Serial Interface |
2 RS-485 (half-duplex), 1 RS-232 |
|
Alarm In/Out |
16/9 |
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
Ctrl 12V |
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
|
DC 12V |
12 VDC, 1 A power output |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
≤ 15 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Chassis |
19-inch rack-mounted 1.5U chassis |
|
Dimension (W × D × H) |
445 × 400 × 75 mm (17.5"× 15.7" × 3.0") |
|
Weight |
≤ 5 kg (without HDD, 11 lb.) |
|
Certification |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032: 2015+A1: 2020, ENIEC61000-3-2 : 2019+A1 : 2021, EN 61000-3-3: 2013+A1: 201 9, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020 |
Know before you buy
Quick answers about the DS-7764NI-M4, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
Does this NVR have AI?
Not of its own. It records the AI events of AcuSense cameras (people and vehicle alerts, line crossing, intrusion) and gives more bandwidth for high-resolution cameras. Go for it when all your cameras are already AcuSense. For AI on normal cameras, choose an AcuSense Pro K or AcuSense Pro I NVR.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
