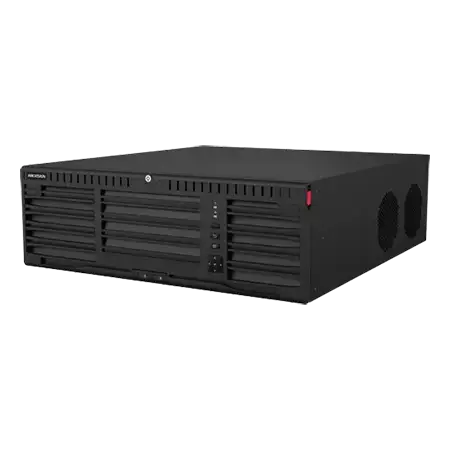

DS-96128NI-M16
128-ch 8K NVR, RAID
- RAID 0, 1, 5, 6, 10 and hot spare
- 8K or dual 4K output, 2 HDMI and 2 VGA
- 400 Mbps in, 400 Mbps out
- Works with people counting, ANPR and fisheye cameras
DS-96128NI-M16
128-ch 8K NVR, RAID
- RAID 0, 1, 5, 6, 10 and hot spare
- 8K or dual 4K output, 2 HDMI and 2 VGA
- 400 Mbps in, 400 Mbps out
- Works with people counting, ANPR and fisheye cameras
Key specs
- 128 IP camera channels
- 16 hard drive slots (SATA)
- RAID 0, 1, 5, 6, 10 and N+M hot spare
- Decoding: up to 40 cameras at 1080p
- Up to 400 Mbps incoming bandwidth, 400 Mbps outgoing
- 8K or dual 4K video output
- H.265+ / H.265 / H.264+ / H.264
|
Video and Audio |
|
|
IP Video Input |
128-ch |
|
Incoming Bandwidth |
400 Mbps |
|
Outgoing Bandwidth |
400 Mbps |
|
HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
|
VGA 1 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
VGA 2 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Video Output Mode |
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Audio Output |
2-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
Decoding |
|
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
Recording Resolution |
32 MP / 24 MP / 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3MP / 1080p / UXGA / 720p |
|
Synchronous playback |
16-ch |
|
Decoding Capability |
2-ch@32 MP (30 fps) / 8-ch@8 MP (30 fps) / 16-ch@4 MP (30 fps) / 32-ch@1080p (30 fps) |
|
Network |
|
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
RAID |
|
|
RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
|
Auxiliary Interface |
|
|
Serial Interface |
1 RS-485 (full-duplex), 1 RS-232 |
|
SATA |
16 SATA interfaces supporting hot-plug |
|
eSATA |
1 eSATA interface |
|
Capacity |
Up to 14 TB capacity for each disk |
|
Alarm In/Out |
16/9 |
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
|
DC 12V |
12 VDC, 1 A power output |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
≤ 50 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Chassis |
3U chassis |
|
Dimension (W × D × H) |
445 × 496 × 150 mm (17.5" × 19.5" × 5.9") |
|
Weight |
≤ 12.5 kg (without HDD, 27.6 lb.) |
|
Certification |
|
|
Obtained Certification |
CE, FCC |
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
Know before you buy
Quick answers about the DS-96128NI-M16, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
Does this NVR have AI?
Not of its own. It records the AI events of AcuSense cameras (people and vehicle alerts, line crossing, intrusion) and gives more bandwidth for high-resolution cameras. Go for it when all your cameras are already AcuSense. For AI on normal cameras, choose an AcuSense Pro K or AcuSense Pro I NVR.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
