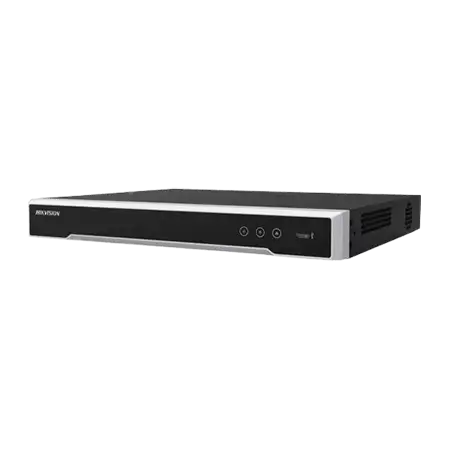

DS-7632NI-K2/16P
32-ch NVR, Value Series, 16 PoE ports
- Records up to 32 IP cameras
- 16 PoE ports: plug in cameras, no extra power
- Plays back 1 camera at 12MP or 8 at 1080p
- 256 Mbps incoming bandwidth
DS-7632NI-K2/16P
32-ch NVR, Value Series, 16 PoE ports
- Records up to 32 IP cameras
- 16 PoE ports: plug in cameras, no extra power
- Plays back 1 camera at 12MP or 8 at 1080p
- 256 Mbps incoming bandwidth
Key specs
- 32 IP camera channels
- 2 hard drive slots (SATA)
- 16 built-in PoE ports for cameras
- Decoding: 1 camera at 12MP or 8 at 1080p
- Up to 256 Mbps incoming bandwidth
- H.265+ / H.265 / H.264+ / H.264
|
Video and Audio |
|
|
|
IP Video Input |
32-ch |
|
|
Incoming Bandwidth |
256 Mbps |
|
|
Outgoing Bandwidth |
160 Mbps |
|
|
HDMI Output |
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
|
VGA Output |
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
|
Video Output Mode |
HDMI/VGA independent output |
|
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
|
Decoding |
|
|
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
|
Synchronous Playback |
16-ch |
|
|
Decoding Capability |
1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
|
Stream Type |
Video, Video & Audio |
|
|
Audio Compression |
G.711ulaw / G.711alaw / G.722 / G.726 |
|
|
Network |
|
|
|
Remote Connection |
128-ch |
|
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
|
Network Interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
|
PoE |
|
|
|
Interface |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
|
Power |
≤ 200 W |
|
|
Standard |
IEEE 802.3 af/at |
|
|
Auxiliary Interface |
|
|
|
SATA |
2 SATA interfaces |
|
|
Capacity |
Up to 10 TB capacity for each HDD |
|
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
|
Alarm In/Out |
4/1 |
|
|
General |
|
|
|
Power Supply |
100 to 240 VAC, 50 to 60Hz |
|
|
Consumption |
≤ 15 W (without HDD and PoE off) |
|
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
|
Working Humidity |
10 to 90 % |
|
|
Dimension (W × D × H) |
385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
|
|
Weight |
≤ 3 kg (without HDD, 6.6 lb.) |
|
|
Certification |
||
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
|
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|
Know before you buy
Quick answers about the DS-7632NI-K2/16P, and how it compares.
Which Hikvision NVR line do I need?
Value Series (NI-Q): basic recording. AcuSense Pro K (NXI-K): AI for people and vehicles, perimeter and face recognition on a few cameras. AcuSense Pro I (NXI-I): AI on more channels. VPro: AcuSeek on most models, 2 AI engines on some. M Series 8K (NI-M): 8K output and more bandwidth for high-resolution cameras, no AI of its own: go for it when all cameras are already AcuSense. DeepinMind (iDS): AI on many channels. Super NVR (86 and 96): large sites, RAID.
Does it come with a hard disk?
No. Hikvision NVRs come without hard disks. Key Specs shows how many disks it takes. Our engineers size the disks for the number of cameras and the days of recording you need.
Can I buy this NVR online?
Hikvision NVRs are installed products, so we start with a free pre-sales consultation: our engineers suggest the NVR, hard disks and cameras for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
