HP5 2MP · 1080p
Smart Video Doorphone
Camera, doorbell and intercom in one slim kit
Made for bigger homes, the EZVIZ HP5 pairs a slim 2MP (1080p) outdoor doorbell camera with a 7-inch indoor touch monitor. See who is at the door, talk to them and let them in through the gate or front door, from the monitor or from your phone, wherever you are.
2MP (1080p) Resolution
7-Inch Color Touch Screen
Remote Door & Gate Unlock¹
2-Wire Installation
Control from the EZVIZ App
Two-Way Talk with Voice Changer
Ultra-Slim Design
Built-In Doorbell, Multiple Ringtones²
RFID Unlock, 2 Tags Included
Weatherproof Outdoor Panel
Dual-Band Wi-Fi 2.4 / 5 GHz
microSD up to 512 GB & CloudPlay³Built for houses and villas
Replacing an old, bulky intercom in a renovated home, or moving into a large villa? The HP5 kit gives you clear video, two-way talk and door control over just two wires, with a weatherproof outdoor panel that suits any entrance.

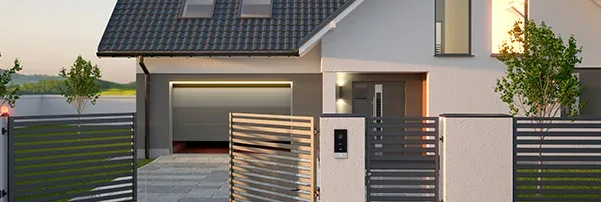

Weatherproof outdoor panel with rain shield

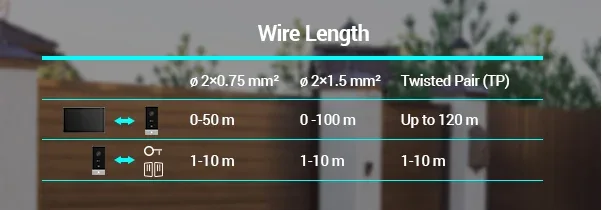

Monitor to panel: up to 50 m, 100 m or 120 m
2 × 0.75 mm², 2 × 1.5 mm² or twisted pair cable
2-Wire InstallationWorks with 4-wire systems too
Waterproof Outdoor Panel
Gate & Door Dual Control¹Three ways to open the door
No more hunting for keys. Open up with a tap of an RFID tag, from the indoor monitor or from the EZVIZ app, and see exactly who you are letting in.

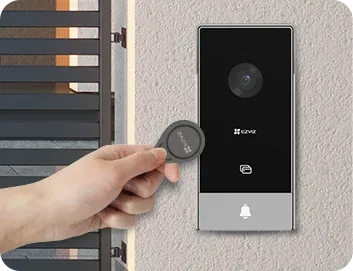

Tap an RFID tag (2 included)

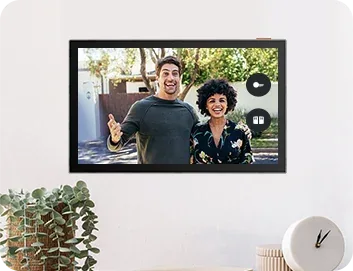

Unlock from the indoor monitor

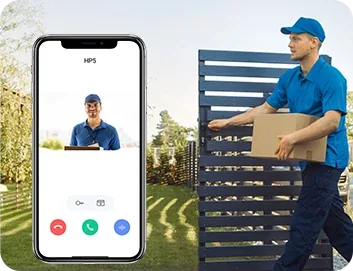

Open remotely in the EZVIZ app
A 7-inch touch screen to see, talk and control
Set up the system, answer visitors and save important clips on the 7-inch color touch screen. When someone rings, the screen wakes up on its own so you can see who is outside.
Versatile features
- Clear live view
- Two-way talk
- Gate and door unlock
- Video history and storagemicroSD card up to 512 GB³
- Up to 20 ringtones²
Answer the door from anywhere
Not at home? Answer the doorbell on your phone, talk to the visitor and open the door for them. With strangers, switch on the voice changer to keep your identity private.
Two-Way Talk
Remote Unlock¹
Voice Changer for PrivacySharp 2MP (1080p) video, day and night

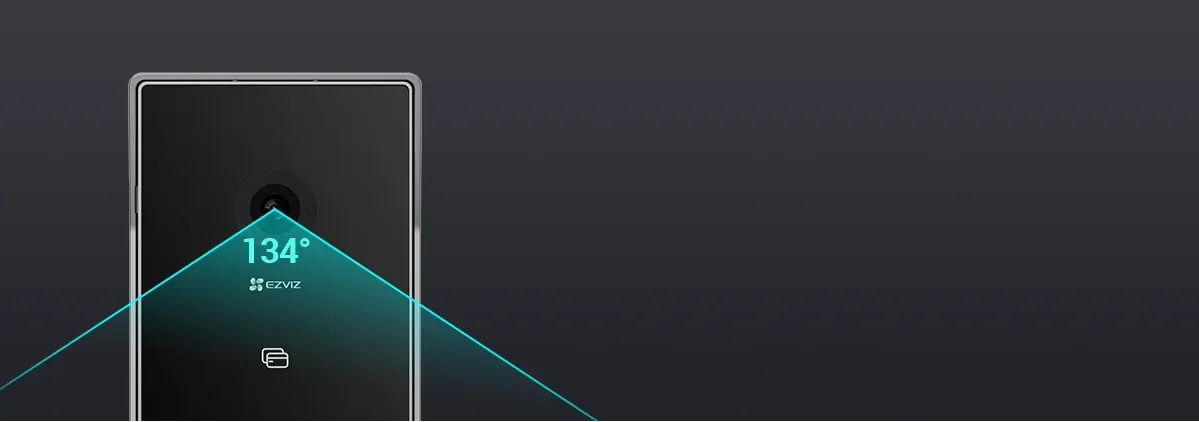

A 134° wide view shows visitors from head to toe in clear detail, and infrared night vision reaches up to 6 m after dark.

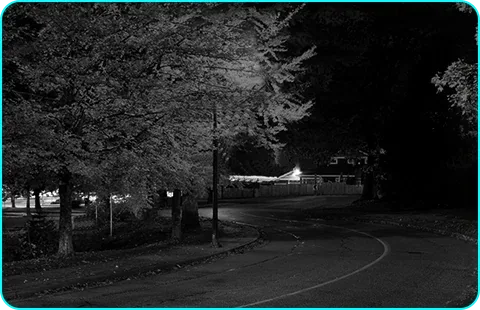

IR night vision up to 6 m
Slim, glossy and easy to fit
Both units share a clean, glossy black finish that looks at home on a modern gate or wall. The outdoor panel is slim enough for tight spots, and the monitor sits almost flat on the wall.

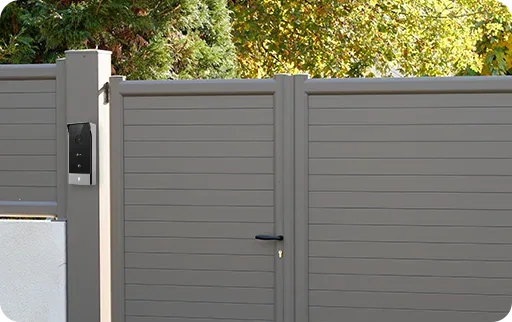

Outdoor panel, just 22.5 mm deep

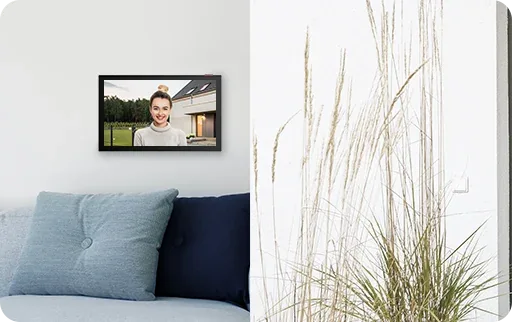

Indoor monitor, just 15 mm deep
Steady dual-band Wi-Fi
Connect the indoor monitor on 2.4 GHz or 5 GHz for faster response, more bandwidth and a stable link when you answer or unlock from your phone.
- 2.4 GHz and 5 GHz
- Lower latency
- More bandwidth
- Stable signal
Smaller files, smoother playback
H.265 compression keeps 1080p video smooth while cutting file sizes by up to 50% compared with H.264, so storage lasts longer and remote viewing uses less data.⁴
Keep every visit on record

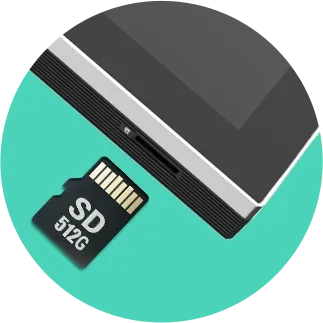

Save recordings to a microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully encrypted cloud storage.³
microSD card up to 512 GB
EZVIZ CloudPlay cloud storage

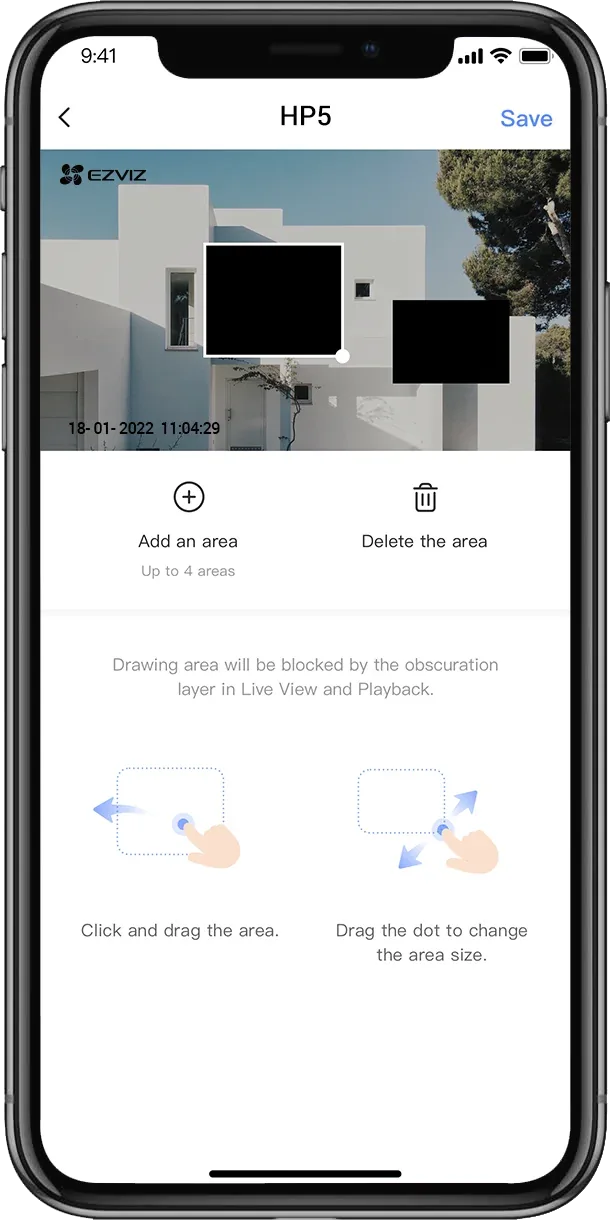

Privacy ZoneYour data, protected
The HP5 is designed to protect your data and privacy. Mask the areas you do not want recorded, and your video stays encrypted in transit and in storage.
- Privacy ZoneMask up to 4 areas from recording⁵
- TLSEncrypted data transmission
- AES-128Encrypted data storage
EZVIZ is certified by DNV for information security (ISO/IEC 27001), personal data protection (ISO/IEC 27701), cloud security (CSA STAR) and more.
Size and dimensions
-30°C to 60°C
180 × 111 × 15 mm
Up to 120 m
100 to 240 V AC
- Check the user manual for installation requirements and compatibility. The gate output is a dry contact rated 12 V / 2 A. An electric strike lock must have mechanical memory and draw no more than 12 V / 1.1 A.
- Ringtones can be changed on the indoor monitor or in the EZVIZ app. The outdoor panel plays one fixed ringtone.
- microSD card sold separately. EZVIZ CloudPlay is available in selected markets only.
- EZVIZ lab results under standard conditions. Actual savings vary with scene activity and environment.
- Privacy zones are drawn as rectangles, up to 4 in total.
HP5 2MP · 1080p
Smart Video Doorphone
Camera, doorbell and intercom in one slim kit
Made for bigger homes, the EZVIZ HP5 pairs a slim 2MP (1080p) outdoor doorbell camera with a 7-inch indoor touch monitor. See who is at the door, talk to them and let them in through the gate or front door, from the monitor or from your phone, wherever you are.
2MP (1080p) Resolution7-Inch Color Touch ScreenRemote Door & Gate Unlock¹2-Wire InstallationControl from the EZVIZ AppTwo-Way Talk with Voice ChangerUltra-Slim DesignBuilt-In Doorbell, Multiple Ringtones²RFID Unlock, 2 Tags IncludedWeatherproof Outdoor PanelDual-Band Wi-Fi 2.4 / 5 GHzmicroSD up to 512 GB & CloudPlay³Built for houses and villas
Replacing an old, bulky intercom in a renovated home, or moving into a large villa? The HP5 kit gives you clear video, two-way talk and door control over just two wires, with a weatherproof outdoor panel that suits any entrance.
Weatherproof outdoor panel with rain shield
Monitor to panel: up to 50 m, 100 m or 120 m
2 × 0.75 mm², 2 × 1.5 mm² or twisted pair cable
2-Wire InstallationWorks with 4-wire systems tooWaterproof Outdoor PanelGate & Door Dual Control¹Three ways to open the door
No more hunting for keys. Open up with a tap of an RFID tag, from the indoor monitor or from the EZVIZ app, and see exactly who you are letting in.
Tap an RFID tag (2 included)
Unlock from the indoor monitor
Open remotely in the EZVIZ app
A 7-inch touch screen to see, talk and control
Set up the system, answer visitors and save important clips on the 7-inch color touch screen. When someone rings, the screen wakes up on its own so you can see who is outside.
Versatile features
- Clear live view
- Two-way talk
- Gate and door unlock
- Video history and storagemicroSD card up to 512 GB³
- Up to 20 ringtones²
Answer the door from anywhere
Not at home? Answer the doorbell on your phone, talk to the visitor and open the door for them. With strangers, switch on the voice changer to keep your identity private.
Two-Way TalkRemote Unlock¹Voice Changer for PrivacySharp 2MP (1080p) video, day and night
A 134° wide view shows visitors from head to toe in clear detail, and infrared night vision reaches up to 6 m after dark.
IR night vision up to 6 m
Slim, glossy and easy to fit
Both units share a clean, glossy black finish that looks at home on a modern gate or wall. The outdoor panel is slim enough for tight spots, and the monitor sits almost flat on the wall.
Outdoor panel, just 22.5 mm deep
Indoor monitor, just 15 mm deep
Steady dual-band Wi-Fi
Connect the indoor monitor on 2.4 GHz or 5 GHz for faster response, more bandwidth and a stable link when you answer or unlock from your phone.
- 2.4 GHz and 5 GHz
- Lower latency
- More bandwidth
- Stable signal
Smaller files, smoother playback
H.265 compression keeps 1080p video smooth while cutting file sizes by up to 50% compared with H.264, so storage lasts longer and remote viewing uses less data.⁴
Keep every visit on record
Save recordings to a microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully encrypted cloud storage.³
microSD card up to 512 GB
EZVIZ CloudPlay cloud storage
Privacy ZoneYour data, protected
The HP5 is designed to protect your data and privacy. Mask the areas you do not want recorded, and your video stays encrypted in transit and in storage.
- Privacy ZoneMask up to 4 areas from recording⁵
- TLSEncrypted data transmission
- AES-128Encrypted data storage
EZVIZ is certified by DNV for information security (ISO/IEC 27001), personal data protection (ISO/IEC 27701), cloud security (CSA STAR) and more.
Size and dimensions
-30°C to 60°C
180 × 111 × 15 mm
Up to 120 m
100 to 240 V AC
- Check the user manual for installation requirements and compatibility. The gate output is a dry contact rated 12 V / 2 A. An electric strike lock must have mechanical memory and draw no more than 12 V / 1.1 A.
- Ringtones can be changed on the indoor monitor or in the EZVIZ app. The outdoor panel plays one fixed ringtone.
- microSD card sold separately. EZVIZ CloudPlay is available in selected markets only.
- EZVIZ lab results under standard conditions. Actual savings vary with scene activity and environment.
- Privacy zones are drawn as rectangles, up to 4 in total.
Key specs
- 2MP (1080p) outdoor unit, 134° view, IR night vision up to 6 m
- 7-inch indoor touch screen (1024 × 600)
- Opens the door and the gate: RFID card (2 included), app, indoor screen
- 2-wire connection, up to 50 m (100 m with 1.5 mm² cable)
- Two-way talk with voice changer, up to 20 ringtones
- 2.4 / 5 GHz Wi-Fi, live view and playback in the EZVIZ app
- microSD up to 512 GB, EZVIZ Cloud
- Weatherproof outdoor unit with tamper alarm, −30 to 60 °C
|
Specifications |
|
|
Model |
CS-HP5-R100-1W2TFC |
|
Outdoor Doorbell |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|
Lens |
2.0 mm @ F1.6, viewing angle: 134° (Diagonal) |
|
Day & Night |
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
|
Max. Resolution |
1920 × 1080 (1080p) |
|
DNR |
2D / 3D DNR |
|
Video Compression |
H.265 / H.264 |
|
Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
|
Connection and Function |
|
|
Connection Method |
Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
|
Transmission Distance |
Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
|
Open the door (Gate) |
Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
|
Unlock (Electric strike plate) |
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
|
Door Open Methods |
1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
|
Outdoor Doorbell Interface |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Doorbell Button |
1 doorbell button (Can be set to become illuminated or not). |
|
Terminal |
Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
|
Functions |
|
|
Tamper Alarm |
Supports |
|
Video Intercom |
Long-distance video two-way talk |
|
General |
|
|
Operation Conditions |
-30°C to 60°C , Humidity 95% or less (non-condensing) |
|
IP Grade |
Waterproof, with shield cover |
|
Size |
153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch) |
|
Interior Display |
|
|
Display size |
7” touch screen |
|
Resolution |
1024 × 600 |
|
Interface |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Button |
Screen On / Off Button |
|
Terminal |
Two wiring ports to connect 1st outdoor doorbell. |
|
Storage |
Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
|
Network Parameters |
|
|
Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Protocol |
EZVIZ Connect Protocol |
|
Wi-Fi Parameters |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ac |
|
Frequency Range |
2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
|
Channel Bandwidth |
Supports 20MHz |
|
Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
|
Function |
|
|
Multiple ringtones |
Up to 20 ringtones |
|
Functions |
Live view, playback, two-way talk, video call |
|
General |
|
|
Operation Conditions |
-10°C to 45°C, humidity 95% or less (non-condensing) |
|
Size |
180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
|
Power Supply |
DC 24V 1.5A power supply, adaptor (100-240Vac) |
|
Power Consumption |
8W, Max. 24W |
|
Products Weight (HP5) |
|
|
Net Weight |
639g (22.54oz) |
|
With Package |
1505g (53.09 oz) |
Know before you buy
Quick answers about the HP5, and how it compares.
What does the HP5 include?
A 2MP outdoor unit with IR night vision up to 6 m, a 7-inch indoor touch screen and 2 RFID cards. Watch and talk to visitors on the screen or in the EZVIZ app, and play back recordings.
HP5 or HP7?
The HP7 has a sharper 3MP camera with a wider 162° view and alerts you when someone lingers at the door. The HP5 does the same job in 2MP for less.
Can I add a second indoor screen?
Yes. The EZVIZ SD7 smart screen works as an extra indoor station: answer the door and talk to visitors from another room, and watch your EZVIZ cameras on the same screen. It runs on a battery, so you can move it around the house.
What wiring does it need, and can it open my door or gate?
The outdoor and indoor units connect with just 2 wires, up to 50 m apart (100 m with 1.5 mm² cable), so an old doorbell or intercom cable can often be reused. The indoor screen needs a power point.
It can release an electric door lock and a gate from the screen, an RFID card or the EZVIZ app. The electric lock or gate motor is separate; ask us on WhatsApp what suits your door.
Which EZVIZ door phone should I choose?
| Model | Camera | Inside screen | Wiring | Opens door or gate |
|---|---|---|---|---|
| DP2C | 2MP, 155° | 4.3-inch | None, battery, fits the door peephole | No |
| HP5 | 2MP, 134° | 7-inch touch | 2 wires, up to 50 m | Yes, door and gate |
| HP7 | 3MP, 162°, detects people | 7-inch touch | 2 wires, up to 50 m | Yes, door and gate |
Flat or apartment door with a peephole: DP2C. House with a gate or main door you want to open from inside or from your phone: HP5, or HP7 for a wider view and people detection.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
