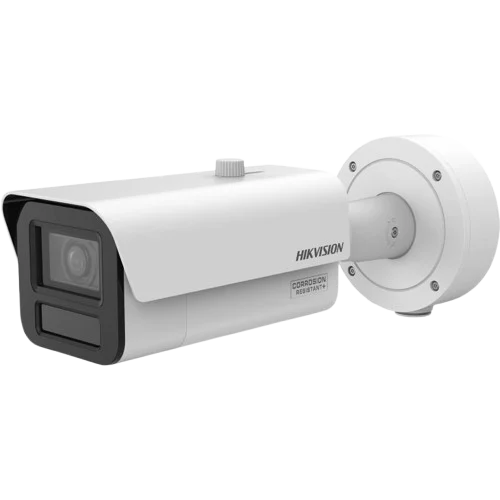

iDS-2CD7A46G2/P-IZHS 2.8-12mm
Hikvision iDS-2CD7A46G2/P-IZHS 4MP DeepinView ANPR Moto Varifocal Bullet Camera, DarkFighter 2.0 technology, 1/1.8" Progressive Scan CMOS, 150 dB AWDR technology, Efficient H.265+ compression technology, 5 streams, Built-in heater, Built-in G-sensor for vibration detection, Built-in power meter for historical power statistics, License plate recognition & vehicle attribution recognition, 60m Supplement Light Range, 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) on monitoring mode, 4 fixed regions for each stream, Target Cropping, ≥ 52 dB SNR, Built-in memory card slot, Motion detection (support alarm triggering by specified target types (human and vehicle)), Road Traffic and Vehicle Detection: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario), Support vehicle attribute detection, Support vehicle and non-vehicle counting, Blocklist and allow list: up to 10,000 records, Demist, IP67 & IK10.
Type: IP |
Shape: Varifocal Bullet |
Resolution: 4MP |
Technology: Infrared |
A.I. Features: Automatic Number Plate Recognition (ANPR) |
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
DeepinView ANPR Varifocal Bullet Camera
Hikvision iDS-2CD7A46G2/P-IZHS 4MP DeepinView ANPR Varifocal Bullet Camera
Road Traffic and Vehicle Detection
Support license plate recognition of vehicles & motorcycles (only in checkpoint scenario), Support vehicle attribute detection, & vehicle and non-vehicle counting, Blocklist and allow list: up to 10,000 records
Frame Rate
Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720),
Up to 100 fps (1920 × 1080)
IR Range
Up to 60m Supplement Light Range
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB
Perimeter Protection
With Deep learning based target detection & classification, the camera carries out the duty of perimeter protection, line crossing, intrusion, region entrance & exiting. filter out the mistaken alarm caused by the interference of leaf's & animal etc.
150 dB WDR, BLC, HLC, 3D DNR, Distortion Correction, Defog, Demist, Image Stabilization: EIS, Built-in power meter
Protection
Water and dust resistant (IP67) & Vandal proof (IK10)
Camera |
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
Max. Resolution |
2688 × 1520 |
Min. Illumination |
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
Shutter Time |
1 s to 1/100,000 s |
Day & Night |
IR cut filter, Blue glass module (less ghost phenomenon) |
Lens |
|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1° |
Focus |
Auto, Semi-auto, Manual |
Iris Type |
P-iris |
Aperture |
2.8 to 12 mm: F1.38 to F2.53 |
DORI |
|
DORI |
Wide: 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard. |
Illuminator |
|
Supplement Light Type |
IR |
Supplement Light Range |
2.8 to 12 mm: Monitoring: 60 m |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
Video |
|
Main Stream |
Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
Fourth Stream |
50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
Fifth Stream |
50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub-stream: H.265 / H.264 / MJPEG, Third stream: H.265 / H.264, Fourth stream: H.265 / H.264 / MJPEG, Fifth stream: H.265 / H.264 / MJPEG |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile, Main Profile, High Profile |
H.265 Type |
Main Profile |
Bit Rate Control |
CBR, VBR |
Scalable Video Coding (SVC) |
H.264 & H.265 encoding |
Region of Interest (ROI) |
4 fixed regions for each stream |
Target Cropping |
Yes |
e-PTZ |
Support Patrol and Auto Tracking settings |
Network |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
API |
ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Image |
|
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger |
Wide Dynamic Range (WDR) |
150 dB |
Image Enhancement |
BLC, HLC, 3D DNR, Distortion Correction, Defog |
Privacy Mask |
8 programmable polygon privacy masks |
SNR |
≥ 52 dB |
Picture Overlay |
LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format. |
Image Stabilization |
EIS |
Interface |
|
Video Output |
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
Ethernet Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
On-Board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 1TB |
Alarm |
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
Audio |
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
Reset Key |
Yes |
Event |
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection |
Smart Event |
scene change detection, audio exception detection, defocus detection |
Linkage |
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
Deep Learning Function |
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
Metadata |
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic |
Road Traffic and Vehicle Detection |
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
General |
|
Material |
Aluminum alloy body |
Dimension |
Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8") |
Package Dimension |
425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1") |
Weight |
Approx. 2170 g (4.78 lb.) |
With Package Weight |
Without -Y: Approx. 3364 g (7.42 lb.), -Y: Approx. 3275 g (7.22 lb.) |
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log |
Heater |
Yes |
Demist |
Yes |
Device Management |
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
Approval |
|
EMC |
CE-EMC: EN 55032: 2015+A1: 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
Environment |
CE-RoHS: 2011 / 65 / EU, WEEE: 2012 / 19 / EU, Reach: Regulation (EC) No 1907/2006 |
Protection |
IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
Automotive and Railway |
EN50121-4 |
Other |
PVC FREE |
Camera |
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
Max. Resolution |
2688 × 1520 |
Min. Illumination |
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
Shutter Time |
1 s to 1/100,000 s |
Day & Night |
IR cut filter, Blue glass module (less ghost phenomenon) |
Lens |
|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1° |
Focus |
Auto, Semi-auto, Manual |
Iris Type |
P-iris |
Aperture |
2.8 to 12 mm: F1.38 to F2.53 |
DORI |
|
DORI |
Wide: 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard. |
Illuminator |
|
Supplement Light Type |
IR |
Supplement Light Range |
2.8 to 12 mm: Monitoring: 60 m |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
Video |
|
Main Stream |
Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
Fourth Stream |
50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
Fifth Stream |
50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub-stream: H.265 / H.264 / MJPEG, Third stream: H.265 / H.264, Fourth stream: H.265 / H.264 / MJPEG, Fifth stream: H.265 / H.264 / MJPEG |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile, Main Profile, High Profile |
H.265 Type |
Main Profile |
Bit Rate Control |
CBR, VBR |
Scalable Video Coding (SVC) |
H.264 & H.265 encoding |
Region of Interest (ROI) |
4 fixed regions for each stream |
Target Cropping |
Yes |
e-PTZ |
Support Patrol and Auto Tracking settings |
Network |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
API |
ISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, Profile G, Profile T, Profile M) |
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Image |
|
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger |
Wide Dynamic Range (WDR) |
150 dB |
Image Enhancement |
BLC, HLC, 3D DNR, Distortion Correction, Defog |
Privacy Mask |
8 programmable polygon privacy masks |
SNR |
≥ 52 dB |
Picture Overlay |
LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format. |
Image Stabilization |
EIS |
Interface |
|
Video Output |
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
Ethernet Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
On-Board Storage |
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 1TB |
Alarm |
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
Audio |
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
Reset Key |
Yes |
Event |
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection |
Smart Event |
scene change detection, audio exception detection, defocus detection |
Linkage |
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
Deep Learning Function |
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
Metadata |
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic |
Road Traffic and Vehicle Detection |
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
General |
|
Material |
Aluminum alloy body |
Dimension |
Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8") |
Package Dimension |
425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1") |
Weight |
Approx. 2170 g (4.78 lb.) |
With Package Weight |
Without -Y: Approx. 3364 g (7.42 lb.), -Y: Approx. 3275 g (7.22 lb.) |
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log |
Heater |
Yes |
Demist |
Yes |
Device Management |
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
Approval |
|
EMC |
CE-EMC: EN 55032: 2015+A1: 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
Safety |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
Environment |
CE-RoHS: 2011 / 65 / EU, WEEE: 2012 / 19 / EU, Reach: Regulation (EC) No 1907/2006 |
Protection |
IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
Automotive and Railway |
EN50121-4 |
Other |
PVC FREE |
