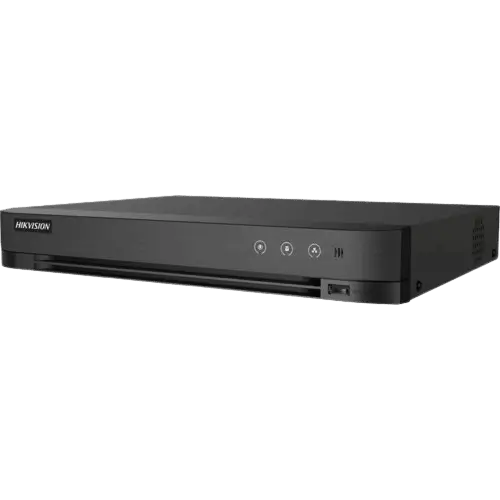

iDS-7208HQHI-M1/XT

Facial Recognition

Face Picture Library

Up to 16 face picture libraries

Face Picture Comparison (Captured from Camera)

Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

Recording

Video Compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps; 4 MP lite/1080p@15fps;720p @20fps

For   5MP stream access: 5MP lite@12fps; 4MP lite / 1080p@15fps; 720p @20fps

For 4 MP stream access: 4 MP lite/ 1080p@15fps; 720p @25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA / WD1 @25fps (P)/30fps (N)

For 720p stream access: 720p/VGA @25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite / 5MP lite@12fps; 4MP lite @15fps; 1080p lite / 720p lite / VGA @25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch (up to 10-ch) Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K (2960 x 1665)@20 fps, 5MP (2560 × 1944)@20 fps, 4MP (2560 × 1440)@30 fps, 4MP (2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input

1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable

Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs.

If your device only has 1 audio input, the tag may not describe it.

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

8-ch

Network

Remote Connection

64

Total Bandwidth

96 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

Serial Interface

RS-485 (half-duplex)

SATA

1 SATA interface, up to 10 TB capacity for each disk

Alarm In/Out

N/A (optional to support)

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 18 W (without HDD)

Working Temperature

-10 °C to + 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Weight

≤ 1.78 kg (3.9 lb) (without HDD)
