iDS-7616NXI-M2/X

iDS-7616NXI-M2/X

Hikvision iDS-7616NXI-M2/X 16-ch DeepinMind M Series NVR, Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity, H.265+/H.265/H.264+/H.264 video formats, Up to 16-ch IP cameras can be connected, Intelligent analytics based on deep learning algorithm, Up to 12-ch perimeter protection, Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture, Up to 6-ch video structuralization, ANR (Automatic Network Replenishment), independent HDMI and VGA outputs, 2 SATA interfaces, Support multiple VCA, 12 VDC, 5A.

DeepinMind NVR

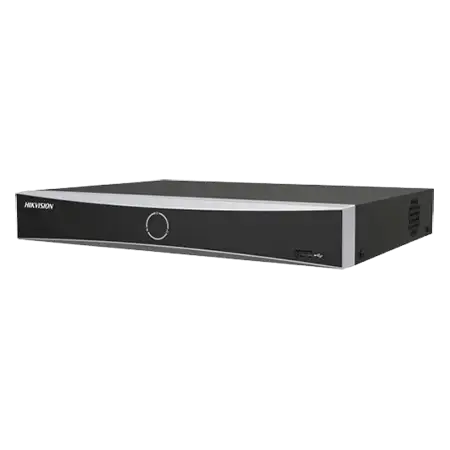

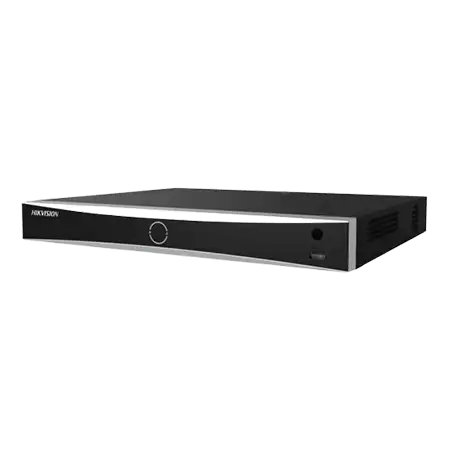

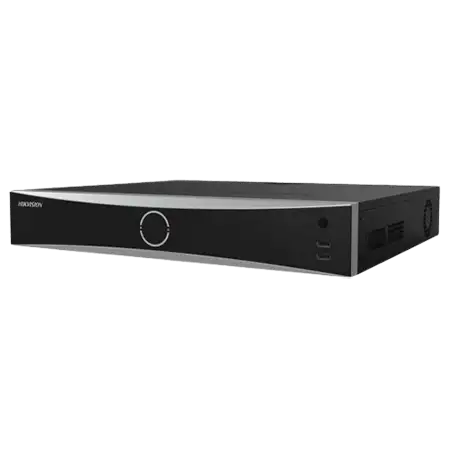

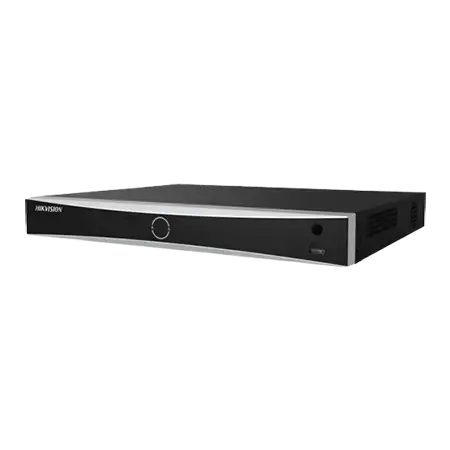

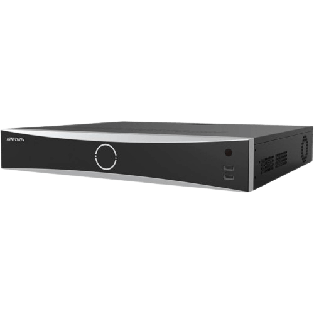

Hikvision iDS-7616NXI-M2/X 16-ch DeepinMind M Series NVR

Decoding Capacity

2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25

fps)/16-ch@4 MP (30 fps)

Bandwidth

Incoming Bandwidth 256 Mbps

Outgoing Bandwidth 256 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

Provide independent HDMI and VGA outputs

Alarm In/Out: 4/1, 1 × eSATA interface,  2 SATA interfaces

Smart Function

Up to 12-ch perimeter protection, Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture, Up to 6-ch video structuralization

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, throwing objects from building

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA

Engine

1 engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library

Face Picture Comparison (Captured from Camera)

16-ch; Comparison speed: 24 pictures per second

Facial Detection and Analytics Performance

8-ch 2 MP, up to 8 MP

Perimeter Protection

By NVR

12-ch 2 MP, up to 8 MP

By Camera

All channels

Video Structuralization

Structured Analysis

6-ch 2 MP, up to 8 MP

Face Picture Library

Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 500,000 face pictures in face capture (each picture 4 MB, total capacity 20 GB)

Face Picture Comparison

8-ch;

Comparison speed: 16 pictures per second

Throwing Objects from Building

By NVR

8-ch 2 MP, up to 8 MP

By Camera

All channels

ANPR

By Camera

All channels

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Vehicle Attributes

Plate number, license plate color, license plate type

Video and Audio

IP Video Input

16-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

256 Mbps

HDMI Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265 / H.265+ / H.264 / H.264+

Decoding Capability

2-ch@32MP (30 fps)/2-ch@24MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / 720p

*: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 14 TB capacity for each HDD

Serial Interface

N/A

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

4/1

General

Power Supply

12 VDC, 5 A

Consumption

50 W (without HDD)

Working Temperature

-10 to 55° C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight

3 kg (without HDD, 2.2 lb.)

Certification

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015+A1:2020, ENIEC61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020
