iDS-7732NXI-M4/X

iDS-7732NXI-M4/X

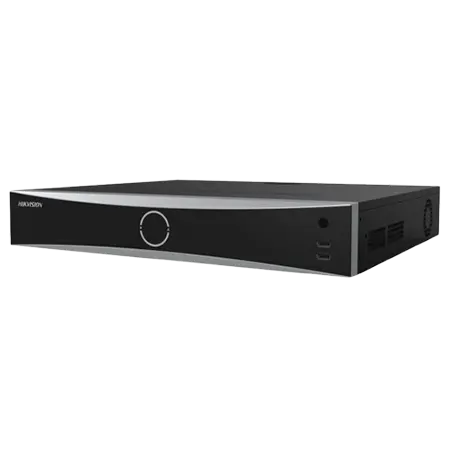

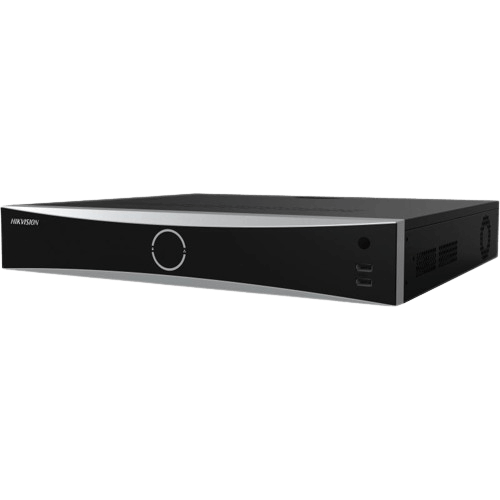

Hikvision iDS-7732NXI-M4/X 32-ch DeepinMind M Series NVR, Intelligent analytics based on deep learning algorithm, Up to 24-ch perimeter protection, Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture, Up to 12-ch video structuralization, 4 SATA interfaces, Support multiple VCA (Video Content Analytics) events, Incoming Bandwidth: 320 Mbps, Outgoing Bandwidth: 400 Mbps, Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR and people counting, 100 to 240 VAC, 50 to 60 Hz.

DeepinMind NVR

Hikvision iDS-7732NXI-M4/X 32-ch DeepinMind M Series NVR,

Decoding Capacity

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity

Bandwidth

Incoming Bandwidth: 320 Mbps

Outgoing Bandwidth: 400 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

2 HDMI (different source) and 1 VGA interfaces

Alarm In/Out: 16/4, 1 × eSATA interface,  4 SATA interfaces

Smart Function

Up to 24-ch perimeter protection, Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture, Up to 12-ch video structuralization

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, throwing objects from building

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA

Engine

2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture 4 MB, total capacity 20 GB)

Face Picture Comparison (Captured from Camera)

32-ch (16-ch for each engine);

Comparison speed: 48 pictures per second

Facial Detection and Analytics Performance

16-ch 2 MP (8-ch for each engine), up to 8 MP

Perimeter Protection

By NVR

24-ch 2 MP (12-ch for each engine), up to 8 MP

By Camera

All channels

Video Structuralization

Structured Analysis

12-ch 2 MP (6-ch for each engine), up to 8 MP

Face Picture Libray

Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture 4 MB, total capacity 20 GB)

Face Picture Comparison

16-ch;

Comparison speed: 32 pictures per second

Throwing Objects from Building

By NVR

16-ch 2 MP (8-ch for each engine), up to 8 MP

By Camera

All channels

ANPR

By Camera

All channels

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Vehicle Attributes

Plate number, license plate color, license plate type

Video and Audio

IP Video Input

32-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output,
HDMI1/HDMI2 independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265 / H.265+ / H.264 / H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12MP (20 fps)/8-ch@8 MP (25fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / 720p

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

4 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 14 TB capacity for each HDD

Serial Interface

1 RS-232, 2 RS-485 (full-duplex), 1 keyboard

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

16/4 (16/9 is optional)

Ctrl 12V

N/A

DC 12V

N/A

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

50 W (without HDD)

Working Temperature

-10 to 55° C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight

5 kg (without HDD, 11 lb.)

Certification

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
