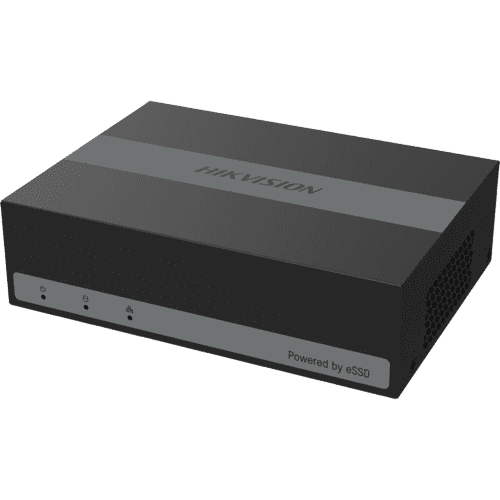

iDS-E08HQHI-B

Hikvision iDS-E08HQHI-B 8-ch 8-ch 1080p 1U H.265 eSSD AcuSense DVR, Deep learning based human and vehicle targets classification of Motion Detection 2.0, Deep learning-based perimeter protection, Scene-adaptive bitrate control video compression, Up to 3K/5MP Lite@12 fps encoding capability, Audio via coaxial cable, IP Video Input: 2-ch (Up to 6MP resolution), Built-in 1024 GB eSSD (960 GB available), 12 VDC.

https://www.esco.pk/web/image/product.template/23831/image_1920?unique=1736883

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD
Channels: 4-8 Ch

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

eDVR Series

Hikvision iDS-E08HQHI-B 8-ch 8-ch 1080p 1U H.265 eSSD AcuSense DVR

Encoding Resolution

Up to 3K/5MP Lite@12 fps encoding capability

Video Compression

H.265 Pro/H.265 Video Compression

False Alarm Reduction

Deep learning based human and vehicle targets classification of MD 2.0

Video Output

HDMI/VGA simultaneous output

Interface

8-Ch Audio via coaxial cable

IP Camera Input

2-ch (Up to 6MP resolution)

eSSD

Built-in 1024 GB eSSD (960 GB available)

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 8-ch

Recording

Video Compression

H.265 Pro/H.265

Encoding Resolution

When 1080p Lite mode is not enabled:

5 MP Lite / 3K / 4MP Lite / 1080p / 1080p Lite / 720p / WD1 / 4CIF;

When 1080p Lite mode is enabled:

5 MP / 3K Lite / 4MP Lite / 1080p Lite / 720p / WD1 / 4CIF;

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 5 MP stream access:

5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p / WD1 @ 20 fps

For 1080p stream access:

1080p/720p@15 fps;

For 720p stream access:

720p @ 25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

5MP/3K Lite @12 fps; 4MP Lite/@15 fps; 1080p Lite/720p @25 fps (P)/30 fps (N)

Video Bitrate

According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Stream Type

Video, Video & Audio

Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch

Up to 6 MP resolution

Support H.265+/H.265 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60

AHD Input

5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input

Support

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

HDMI Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

8-ch via coaxial cable

Audio Output

1-ch via HDMI

Synchronous Playback

4-ch

Network

Total Bandwidth

96 Mbps

Incoming bandwidth: 8 Mbps

Remote Connection

64

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Capacity

Built-in 1024 GB eSSD (960 GB available)

Note:

The device can store about 2 weeks videos for 8-ch analog cameras (default parameters), this estimation is for reference only.

Alarm In/Out

N/A

USB Interface

Rear panel: 2 × USB 2.0

General

Power Supply

12 VDC, 1 A

Consumption

8.2 W (with eSSD)

Working Temperature

-10 °C to 45 °C (14 °F to 113 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

170 × 121.6 × 46 mm (6.7 × 4.79 × 1.81 inch)

Weight

0.5 kg (with eSSD, 1.1 lb.)
