LB20-PC60-8D (Pair)

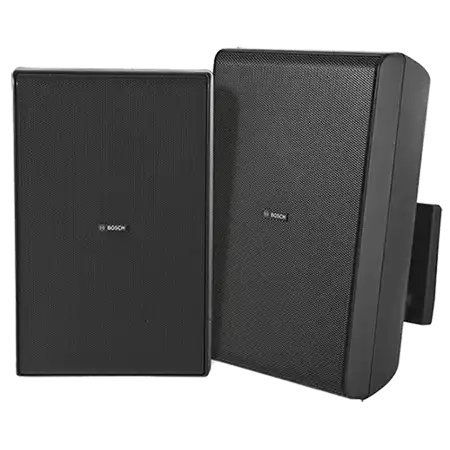

Bosch LB20-PC60-8D Cabinet speaker 8" 70/100V black pair, Two-way 8-inch cabinet loudspeaker, with easy wall mount system, Internal 60W 70/100-volt line, transformer with 8 Ohm bypass, weather-resistant, IP54 (packaged in pairs), black, Coverage angle : Horizontal 90°, Vertical 90°.

https://www.esco.pk/web/image/product.template/3434/image_1920?unique=70390d8

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Speaker Type

    Bosch LB20-PC60-8D 60W Cabinet speaker 8" 70/100V Black pair

    Frequency Response

    -3 dB: 70 Hz - 20 kHz, -10 dB: 50 Hz - 20 kHz

    Transformer Taps

    70 V: 7.5 W, 15 W, 30 W, 60 W, 8 Ω

    100 V: 15 W, 30 W, 60 W, 8 Ω

    Power

    90 W (360 W Peak) Continuous Pink Noise (100 hours)

    Sound Pressure Level

     Max SPL (calculated): 110 dB (116 dB Peak)

    Applications

    It's ideal for a wide variety of indoor and outdoor applications, such as retail, restaurants, fitness clubs, hospitality, theme parks, venues and others.

    Technical Specifications

    Frequency response (-3 dB)

    70 Hz - 20 kHz

    Frequency response (-10 dB)

    50 Hz - 20 kHz

    Sensitivity

    90 dB

    Max SPL (calculated)

    110 dB (116 dB Peak)

    Coverage angle:

    Horizontal 90°, Vertical 90°

    Power handling:

    90 W (360 W Peak) Continuous Pink Noise (100 hours)

    Low Z

    Yes

    Nominal impedance

    8 Ω

    Minimum impedance

    6 Ω

    Recommended High-Pass:

    50 Hz (24 dB/octave)

    Input transformer (70V/100V):

    60 W

    Transformer taps

    70 V: 7.5 W, 15 W, 30 W, 60 W, 8 Ω

    100 V: 15 W, 30 W, 60 W, 8 Ω

    LF transducer

    8 inch (203 mm)

    HF transducer

    1 inch (25 mm)

    Connectors

    Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)

    Environmental

    IP54 (per IEC-60529)

    Color

    Black (RAL 9004)

    Dimensions (H x W x D)

    390 mm x 250 mm x 224 mm (15.4 in x 9.8 in x 8.8 in)

    Net weight

    5.8 kg (12.8b)

    Included hardware:

    Mounting bracket and 5-mm Allen wrench
