LB20-SW400-D

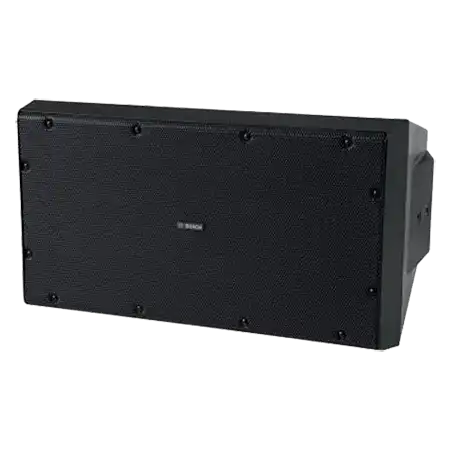

Bosch LB20-SW400-D Cabinet Subwoofer 2x10", Black Color, Two 10 inch high-excursion woofers, 400 W power handling provides for 120 dB, maximum SPL (126 dB peak), Frequency response (-10 dB): 33 Hz - 500 Hz, Sensitivity: 94 dB, Power handling: 400 W (1600 W Peak) Continuous, Pink Noise (100 hours), Nominal impedance: 8 Ω (stereo mode); 4 Ω(mono mode), IP-54 (per IEC-60529); IP-65 with port covers.

https://www.esco.pk/web/image/product.template/6811/image_1920?unique=c4bde45

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Speaker Type

    Bosch LB20-SW400 Cabinet subwoofer 2x10", Black Color

    Frequency Response

    (-10 dB): 33 Hz - 500 Hz

    Protections

    IP-54 (per IEC-60529); IP-65 with port covers

    Power Handling

    400 W (1600 W Peak) Continuous Pink Noise (100 hours)

    Sound Pressure Level

     Max SPL (calculated): 120 dB (126 dB Peak)

    Applications

    Ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

    Technical Specifications

    Frequency response (-10 dB):

    33 Hz - 500 Hz

    Sensitivity2:

    94 dB

    Max. SPL (Calculated):

    120 dB (126 dB Peak)

    Power handling:

    400 W (1600 W Peak) Continuous Pink Noise (100 hours)

    Low Z:

    Yes

    Nominal impedance:

    (2) 8 Ω (stereo mode); (1) 4 Ω (mono mode)

    Recommended High-Pass:

    40 Hz (24 dB/octave)

    Input transformer (70 V/100 V):

    Optional accessory

    Transformer taps:

    Optional accessory

    LF transducer:

    Two 10 inch (254 mm)

    Connectors:

    Two removable locking 4-pin connector (Euroblock) - Input and output.

    Max. wire size 12 AWG (2.05 mm).

    Environmental:

    IP-54 (per IEC-60529); IP-65 with

    port covers

    Color:

    Black (RAL 9004) or white (RAL 9003)

    Dimensions (H x W x D):

    356 mm x 651 mm x 491 mm

    (14.0 in x 25.6 in x 19.3 in)

    Net weight3:

    17.9 kg (39.5 lb)

    Shipping weight:

    21 kg (46.3 lb)

    Included hardware:

    (2) Subwoofer feet, Allen wrench, weather input cover, (8) screws for the weather input cover, (2) IP65 port covers, (12) IP65 port cover screws

    Packaged quantity:

    1
