LBB9600/20

Bosch LBB 9600/20 Condenser Handheld Microphone, unidirectional, matt-black finish, on/off switch, supplied with 7 m (23 ft) cable, 3-pin lockable male and female XLR connectors, Frequency range 100 Hz to 16 kHz, Sensitivity : 2 mV/Pa +/-‑3 dB (-54 dB rel. to 1 V/Pa).

https://www.esco.pk/web/image/product.template/3451/image_1920?unique=563d334

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Bosch LBB 9600/20 Condenser Handheld Microphone

    With its uniform frequency response, uni-directional polar pattern, and rugged construction, the Bosch LBB9600/20 Condenser Handheld Microphone is an ideal solution for both speech and performance. The microphone has low input noise and is unaffected by RF and electrostatic noise. Sliding on / off switch is included and features a 23 '(7 m) connector with XLR locking.

    Features

    • Condenser transducer

    • Unidirectional

    • High speech intelligibility

    • Low sensitivity to case noise and vibrations

    • Phantom powered

    Electrical

    Type

    Handheld

    Polar pattern

    Unidirectional

    Phantom Power Supply

    Voltage range

    11 V to 52 V (acc. to DIN 45596 and IEC 268-15A)

    Current consumption

    <1.5mA

    Performance

    Frequency range

    100 Hz to 16 kHz

    Sensitivity

    2 mV/Pa +/-‑3 dB (-54 dB rel. to 1 V/Pa)

    Rated Output Impedance

    200 ohm

    Equivalent input noise level

    26 dB (A)

    Mechanical

    Dimensions (L x D)

    170 x 54 mm

    Weight

    245 g (8.64 oz)

    Color

    Black

    Switch

    On/off slide

    Cable length

    7 m (23ft)

    Connector

    3‑pin XLR (male)

    Environmental

    Operating temperature

    -20 ºC to +55 ºC (-4 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%

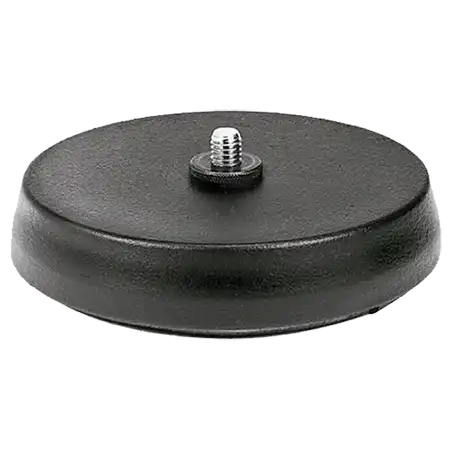

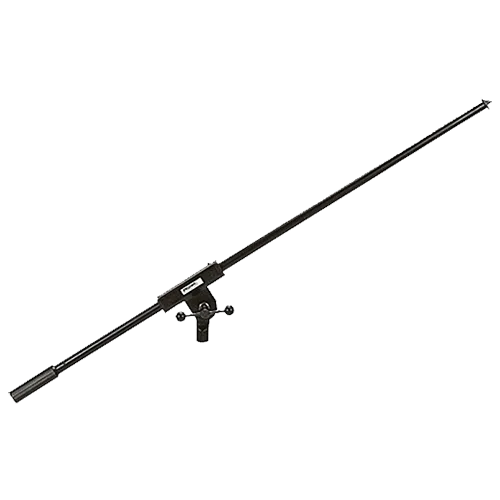

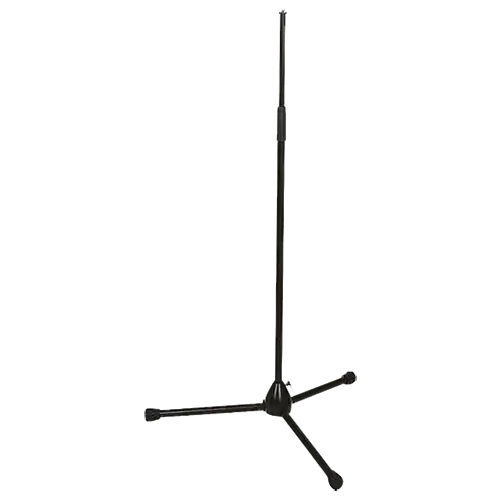

    Suggested Alternatives
