LBC3090/01

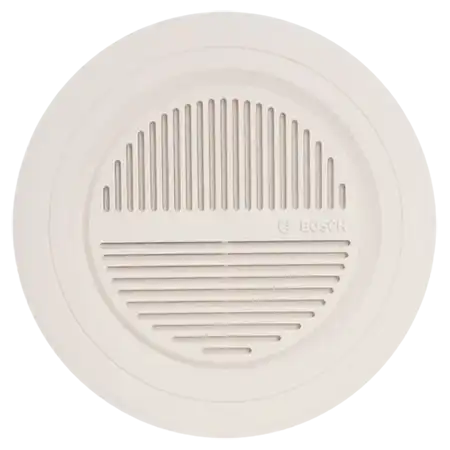

Bosch LBC3090/01 6W Ceiling Loudspeaker, ABS grille, two spring-loaded, clamps for ceiling mounting, protective dust cover, two-way push terminal block, white RAL 9010.

https://www.esco.pk/web/image/product.template/12805/image_1920?unique=d6ca6a1

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LBC3090/01 6W Ceiling Loudspeaker

    Power Tapping

    Power Tapping of 6, 3 and 1.5 Watt.

    Sound Pressure Level

    6 W / 1 W (1 kHz, 1 m) : 99 dB / 91 dB (SPL)

    6 W / 1 W (4 kHz, 1 m) : 103 dB / 95 dB (SPL)

    Effective Frequency Range

    70 Hz to 18 kHz (-10dB)

    Opening Angle

    At 1 kHz/4 kHz (-6 dB) : 160° / 55°

    Key Features

    Suitable for speech and music reproduction, Increased sensitivity, Flush-mounting in ceiling cavity, Protective dust cover, Comply with international safety regulations

    Color

    White

    Coverage angle HxV (-6 dB, 1 kHz) (°)

    210 x 50 °

    Coverage angle HxV (-6 dB, 4 kHz) (°)

    132 x 22 °

    Dimensions (Ø x H) (mm)

    210 x 88 mm

    Frequency range (-10 dB) (Hz)

    70 – 18000 Hz

    Operating relative humidity, non-condensing (%)

    0 – 95 %

    Operating temperature (°C)

    -25 – 55 °C

    Rated input voltage (V)

    100 V

    Sensitivity (1 W, 1 m, 1 kHz octave) (dB)

    91 dB

    Storage temperature (°C)

    -40 – 70 °C

    Weight (kg)

    1.10 kg
