LBC3090/31

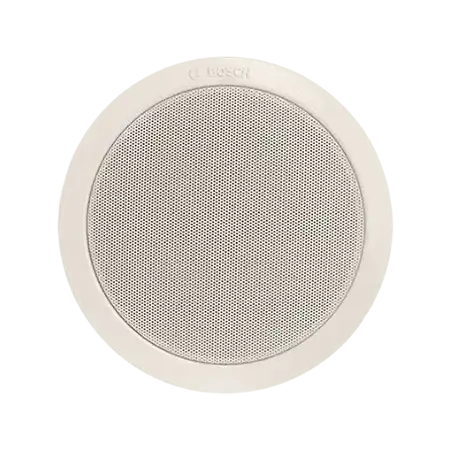

Bosch LBC3090/31 Ceiling loudspeaker 6W metal with clamps, integrated circular metal, grille, two spring-loaded clamps for ceiling mounting, protective dust cover, two-way screw terminal block, white RAL 9010, Maximum power 9W, Rated power 6 / 3 / 1.5 W, Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 99 dB / 91 dB (SPL), Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 104 dB / 96 dB (SPL), Effective frequency range (-10 dB) : 70 Hz to 18 kHz Opening angle at 1 kHz/4 kHz (-6 dB) : 160° / 55°, Rated voltage 100 V.

https://www.esco.pk/web/image/product.template/3460/image_1920?unique=10fd905

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Loudspeaker Type

    Bosch LBC3090/31 Ceiling loudspeaker 6W metal with clamps

    Power Tapping

    Power Tapping of 6, 3 and 1.5 Watt.

    Sound Pressure Level

    6 W / 1 W (1 kHz, 1 m) : 99 dB / 91 dB (SPL)

    6 W / 1 W (4 kHz, 1 m) : 104 dB / 96 dB (SPL)

    Effective Frequency Range

    70 Hz to 18 kHz (-10dB)

    Opening Angle

    At 1 kHz/4 kHz (-6 dB) : 160° / 55°

    Key Features

    Suitable for speech and music reproduction,

    Increased sensitivity, Flush-mounting in ceiling cavity

    Color

    White

    Coverage angle HxV (-6 dB, 1 kHz) (°)

    210 x 50 °

    Coverage angle HxV (-6 dB, 4 kHz) (°)

    132 x 22 °

    Dimensions (Ø x H) (mm)

    199 x 89 mm

    Frequency range (-10 dB) (Hz)

    70 – 18000 Hz

    Operating relative humidity, non-condensing (%)

    0 – 95 %

    Operating temperature (°C)

    -25 – 55 °C

    Rated input voltage (V)

    100 V

    Sensitivity (1 W, 1 m, 1 kHz octave) (dB)

    91 dB

    Storage temperature (°C)

    -40 – 70 °C
