LC3-UC06

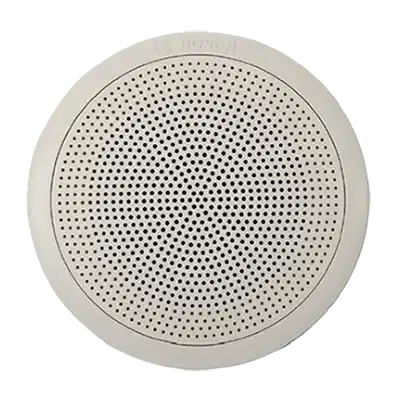

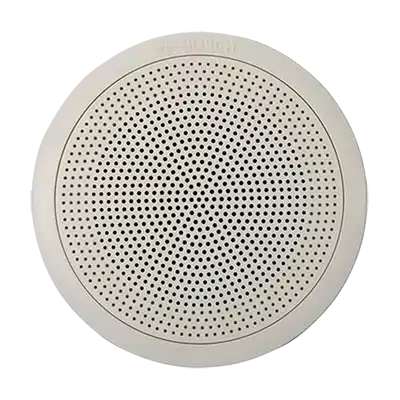

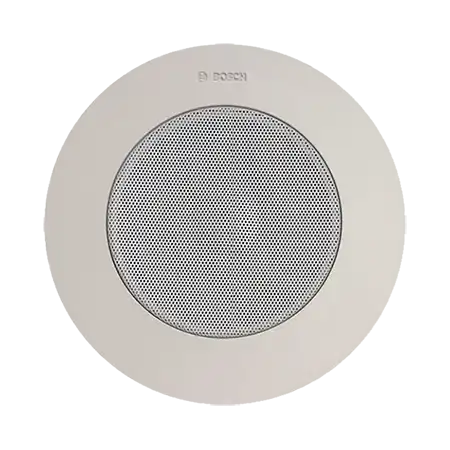

Bosch LC3-UC06 Ceiling loudspeaker 6W, circular ABS grille and frame, ceiling mounted by 2 integral spring arms, white RAL 9010, 94 dB / 86 dB (SPL) at 6 W power / 1 W (1 kHz, 1 m), 103 dB / 95 dB (SPL) at 6 W power / 1 W (4 kHz, 1 m), Opening angle at 1 kHz / 4kHz (-6 dB) : 180° / 85°.

https://www.esco.pk/web/image/product.template/3392/image_1920?unique=6b93b64

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LC3-UC06 6W Ceiling Loudspeaker

    Power Tapping

    Power Tapping of 6, 3 and 1.5 Watt.

    Sound Pressure Level

    6 W / 1 W (1 kHz, 1 m) : 94 dB / 86 dB (SPL), 6W / 1W (4 kHz, 1 m) : 103dB / 95dB (SPL)

    Effective Frequency Range

    90 Hz to 20 kHz (-10dB)

    Opening Angle

    At 1 kHz/4 kHz (-6 dB) : 180° / 85°

    Applications

    Suitable for speech and music reproduction in indoor places.

    Electrical

    Maximum power

    9 W

    Rated power

    6 W (6/3/1.5 W)

    Sound pressure level

    at 6 W / 1 W (1 kHz, 1 m)

    94 dB / 86 dB (SPL)

    Sound pressure level

    at 6 W / 1 W (4 kHz, 1 m)

    103 dB / 95 dB (SPL)

    Effective frequency range (-10 dB)

    90 Hz to 20 kHz

    Opening angle at 1 kHz/4 kHz (-6 dB)

    180° / 85°

    Rated voltage

    100 V

    Rated impedance

    1667 ohm

    Electrical Connection

    Flying leads: Length is 150 mm (5.90 in)

    Mechanical

    Diameter

    180 mm (7.08 in)

    Mounting cut-out

    167 mm (6.57 in)

    Max. ceiling thickness

    5 to 25 mm (0.19 to 0.98 in)

    Maximum depth

    59 mm (2.32 in)

    Material (frame, front grille)

    ABS

    Weight

    475 g (1.04 lb)

    Color

    White (RAL 9010)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
