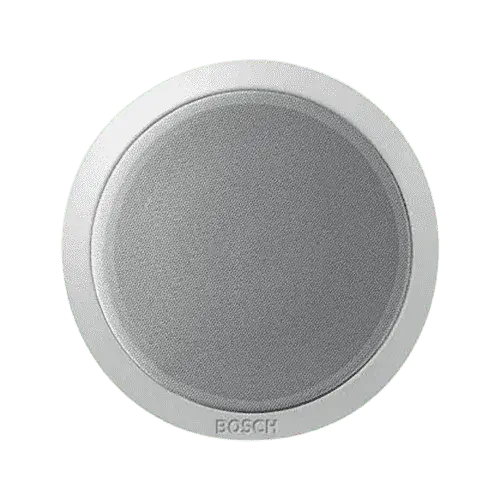

LHM0606/10

Bosch LHM0606/10 6W Ceiling Loudspeaker, Metal with clamp, Easy to install, Unobtrusive in virtually all interiors, Maximum power 9W, Rated power : 6 / 3 / 1.5 W, Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 94 dB / 86 dB (SPL), Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 106 dB / 98 dB (SPL), Effective frequency range (-10 dB) : 80 Hz to 18 kHz, Opening angle at 1 kHz/4 kHz (-6 dB) : 175° / 55°, Rated voltage 100 V, Rated impedance 1667 ohm.

https://www.esco.pk/web/image/product.template/3459/image_1920?unique=2b4f36c

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Loudspeaker Type

    Bosch LHM0606/10 6W Ceiling Loudspeaker, Metal with clamp

    Power Tapping

    Maximum power 9 W, Rated power 6 / 3 / 1.5 W

    Sound Pressure Level

    Sound pressure level at 6 W / 1 W (1 kHz, 1 m): 94 dB / 86 dB (SPL),

    Sound pressure level at 6 W / 1 W (4 kHz, 1 m): 106 dB / 98 dB (SPL)

    Effective Frequency Range

    Effective frequency range (-10 dB): 80 Hz to 18 kHz

    Opening Angle

    Opening angle at 1 kHz/4 kHz (-6 dB): 175° / 55°

    Applications

    Suitable for speech and music reproduction

    Key Specifications

    Color

    White; Customized colors

    Coverage angle HxV (-6 dB, 1 kHz) (°)

    175 x 175 °

    Coverage angle HxV (-6 dB, 4 kHz) (°)

    55 x 55 °

    Frequency range (-10 dB) (Hz)

    80 – 18000 Hz

    Operating relative humidity, non-condensing (%)

    0 – 95 %

    Operating temperature (°C)

    -25 – 55 °C

    Rated input voltage (V)

    100 V

    Rated power (W)

    6 W

    Storage temperature (°C)

    -40 – 70 °C
