LA1-UM20E-1

LA1-UM20E-1

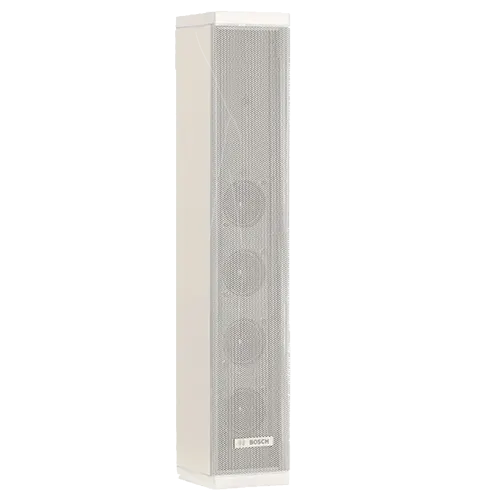

Bosch LA1-UM20E-1 20W Metal Column Loudspeaker, Maximum power 30W, Rated input voltage : 12.65 / 70 / 100 V , Rated impedance 8/251/500 ohm, 20 / 10 / 5 / 2.5 W Power Tapping, 105 / 92 dB SPL at 1 W (1 kHz, 1 m), Effective frequency range (-10 dB) : 240 Hz to 16 kHz.

    Rs. 0.00 Rs. 0.00 0.0 PKR

    This combination does not exist.

    Add to Cart

    Is our price higher or showing zero? Please chat now and ask for the best price. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    Bosch

    Loudspeaker Type

    Bosch LA1-UM20E-1 20W Metal Column Loudspeaker

    Power Tapping

    Power Tapping of 20 / 10 / 5 / 2.5 W

    Protection

    Slim-line weatherproof design

    Thermal fuse, heat-resistant, and high temperature wiring.

    Sound Pressure Level

    1 W (1 kHz, 1 m) : 105 / 92 dB (SPL)

    1 W (4 kHz, 1 m) : 108 / 95 dB (SPL)

    Effective Frequency Range

    240 Hz to 16 kHz (-10dB)

    Voice Alarm

     The LA1-UM20E-1 are designed for voice alarm systems.

    Opening Angle

    Horizontal opening angle at 1 kHz / 4 kHz (-6 dB) : 210°/ 94°

    Vertical opening angle at 1 kHz / 4 kHz (-6 dB) : 80°/ 22°

    Applications

    It is an ideal for both indoor and outdoor use in passenger terminals, places of worship, conference venues, parks, swimming pools, factories, exhibition areas.

    Electrical

    Maximum power

    30 W

    Rated power (PHC)

    20 W

    Power tapping

    20 / 10 / 5 / 2.5 W

    Sound pressure level at rated power / 1 W (1 kHz, 1 m)

    105 / 92 dB (SPL)

    Sound pressure level at rated power / 1 W (4 kHz, 1 m)

    108 / 95 dB (SPL)

    Effective frequency range (-10 dB)

    240 Hz to 16 kHz

    Horizontal opening angle at 1 kHz / 4 kHz (-6 dB)

    210°/ 94°

    Vertical opening angle at 1kHz/4kHz (-6 dB)

    80°/ 22°

    Rated input voltage

    12.65/70/100 V

    Rated impedance

    8/251/500 ohm

    Mechanical

    Dimensions (L x W x D)

    450 x 84 x 96 mm

    Weight

    2.9 kg (6.4 lb)

    Color

    White (RAL 9010)

    Material (housing and grille)

    Extruded aluminum / steel

    Connection

    2 m (78.8 in) 3-wire cable

    Connector

    (phase, common, earth)

    3‑pole screw block

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
