Engineered for Controlled, Reliable Sound
The Electro-Voice LRC-1060-B combines controlled dispersion, flexible installation and weather-resistant construction for professional indoor, outdoor and voice-alarm applications.

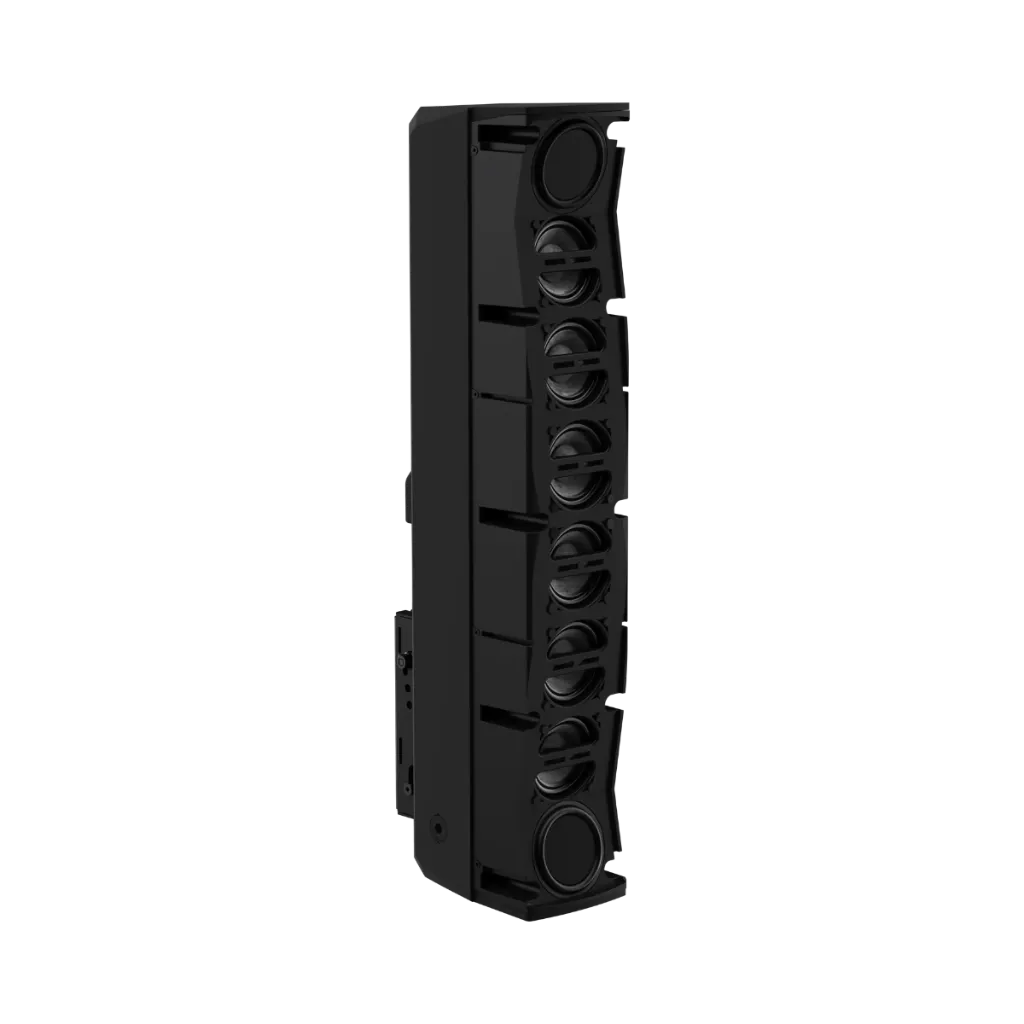

PaSS Dispersion Control
Six 2.5-inch active drivers with proprietary PaSS phase plugs provide smooth frequency response and tightly controlled vertical dispersion.
Wide, Focused Coverage
The fixed 130° horizontal × 20° vertical coverage pattern directs sound toward listeners while reducing unnecessary energy on reflective surfaces.
Flexible System Operation
Supports 70 V and 100 V distributed audio systems with selectable transformer taps, plus 8-ohm low-impedance operation.

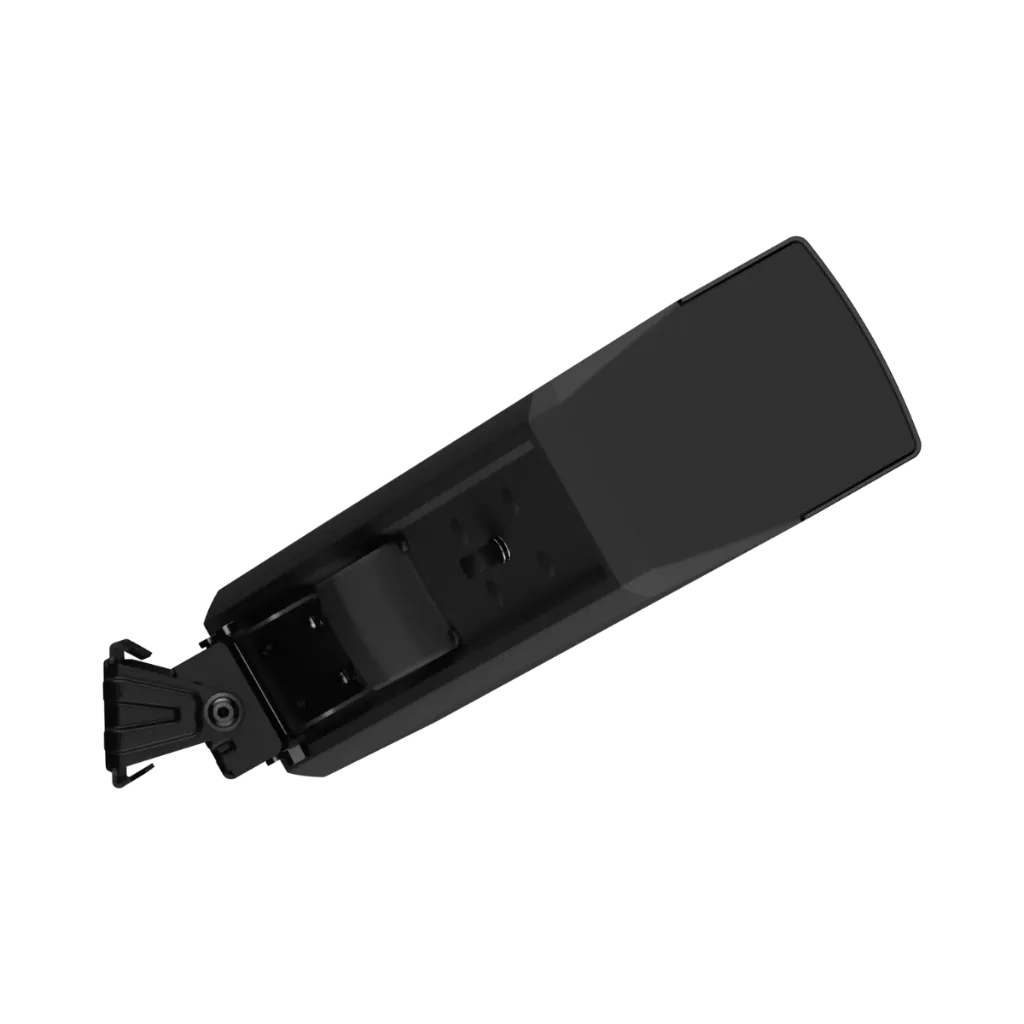

SwifTilt Mounting System
The included SwifTilt bracket supports flush installation, up to ±80° horizontal pan and selectable downward tilt angles up to 25°.
Outdoor-Ready Construction
Its IP56c-rated enclosure is designed for full outdoor exposure, while the paintable finish supports discreet architectural integration.
Voice-Alarm Certified
EN54-24 Type B certification supports use in compliant voice-alarm and evacuation sound systems.

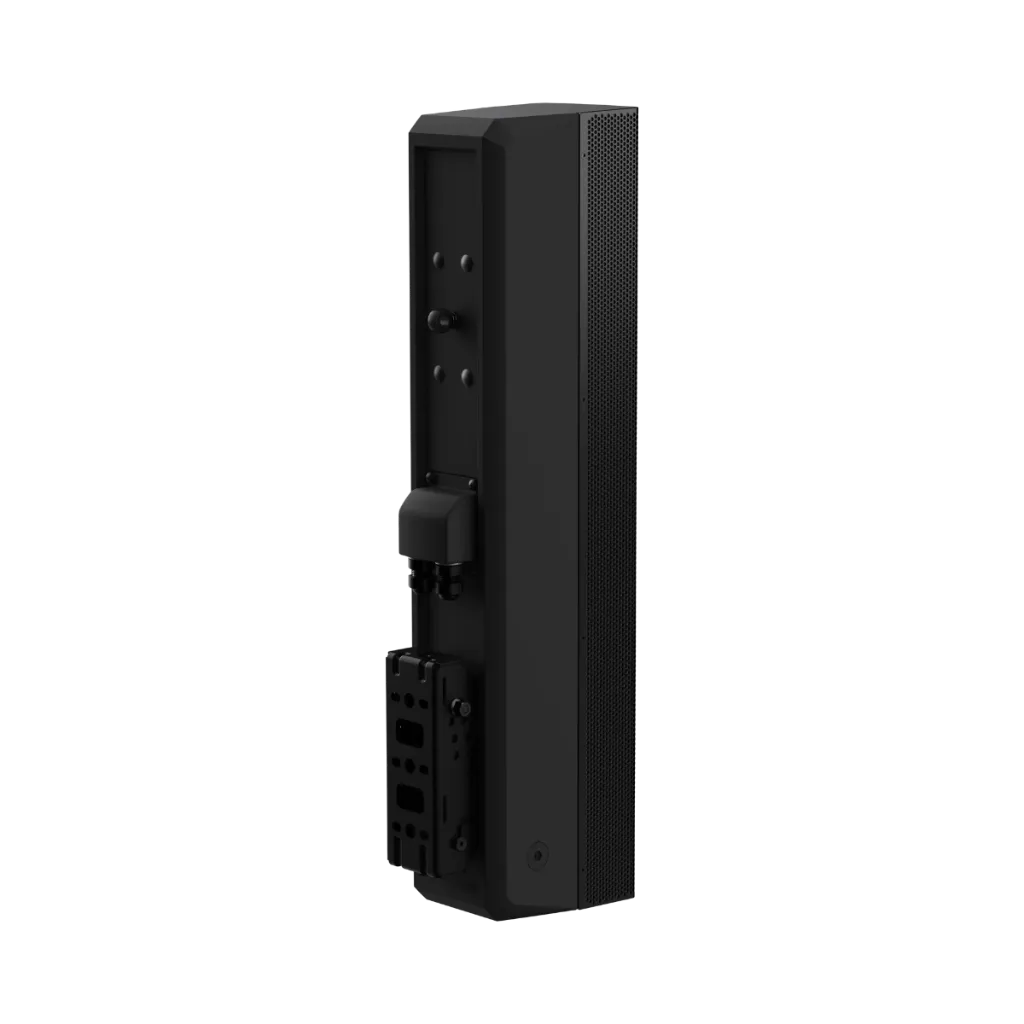

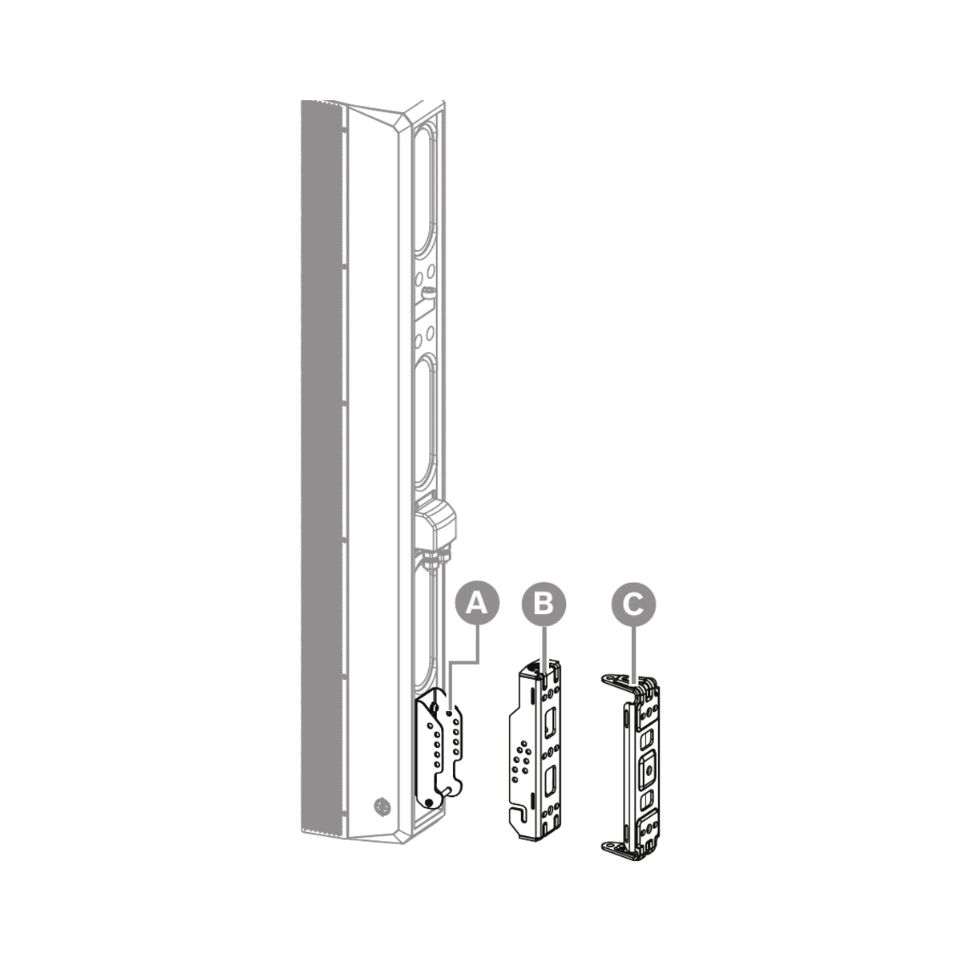

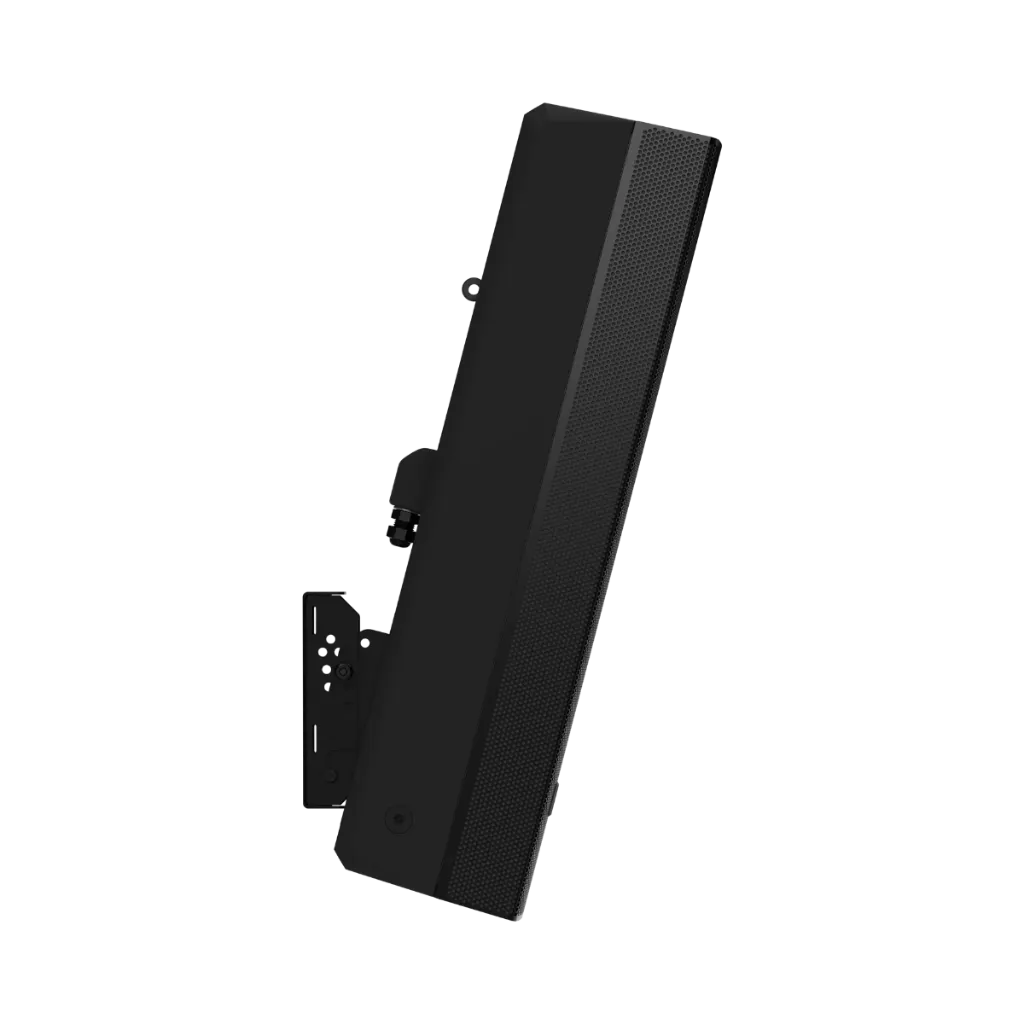

Flexible Installation with SwifTilt

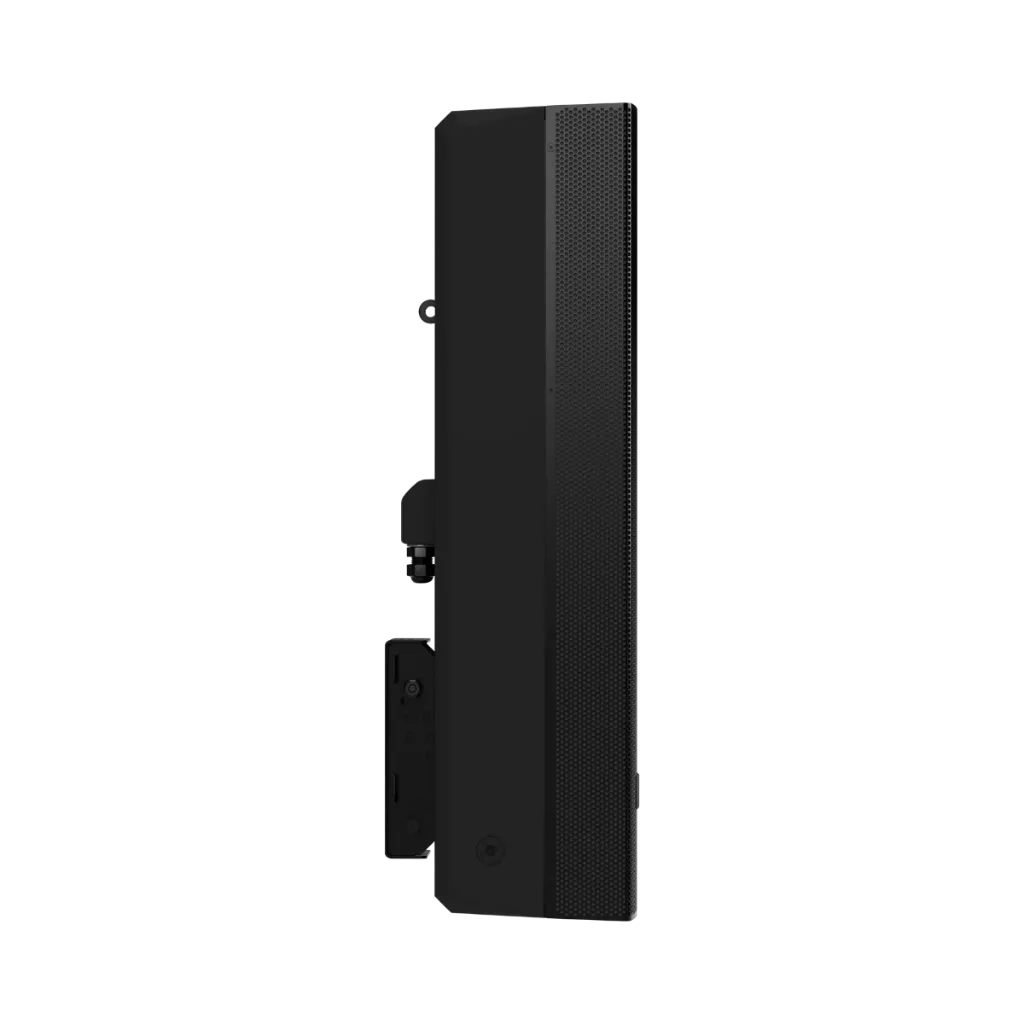

The supplied SwifTilt mounting system keeps the LRC-1060-B close to the wall while providing flexible pan-and-tilt adjustment for accurate coverage positioning.
Key Installation Details
- Horizontal adjustment: Up to ±80° pan at every down-tilt position
- Vertical adjustment: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20° or 25° downward tilt.
- Flexible orientation: Supports standard and inverted mounting
- Clean installation: Conceals the mounting hardware and loudspeaker cabling
- Suspension points: Two M8 mounting points
- Included hardware: Pan bracket, tilt bracket, weather cover, gland nut, dual-ended Allen/TR20 key and pre-installed M8 eyebolt
Controlled Sound for Challenging Spaces
With focused vertical dispersion, weather-resistant construction and discreet architectural styling, the Electro-Voice LRC-1060-B supports clear speech and program audio across indoor and outdoor installed-sound environments.

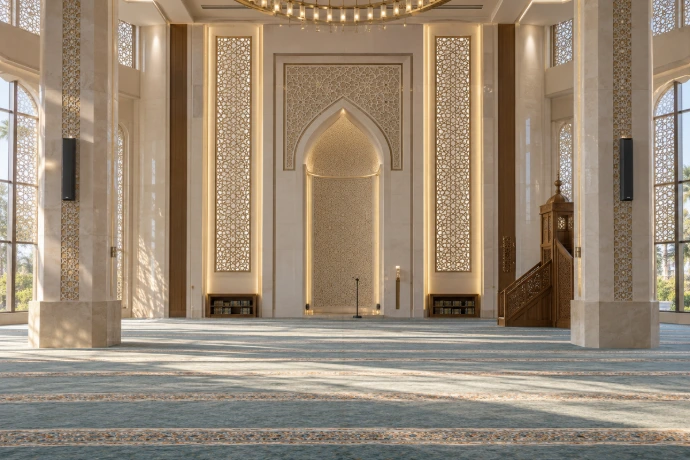

Places of Worship
Provides controlled sound coverage for clear speech and program audio in mosques, churches and other acoustically reflective worship spaces.

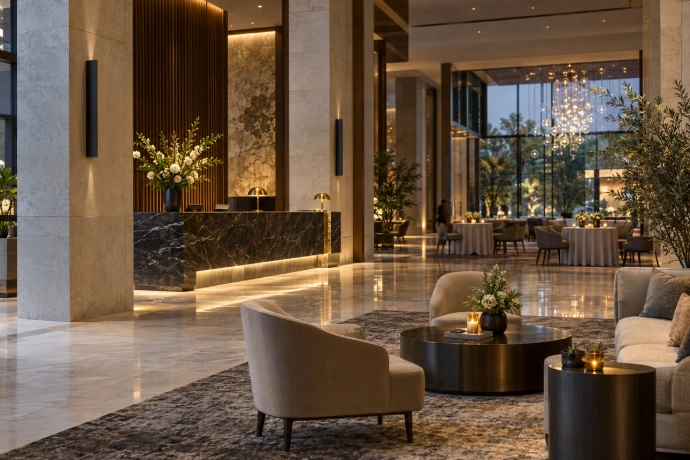

Hospitality Venues
Provides discreet sound coverage for clear speech & program audio in hotels, restaurants & other architecturally sensitive hospitality spaces.

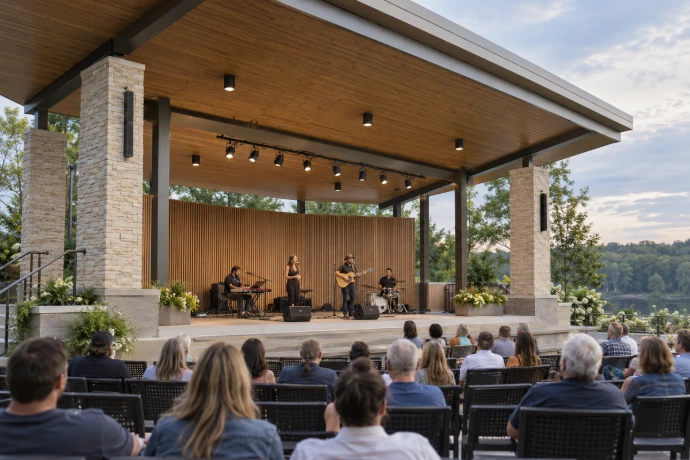

Outdoor Performance
Provides weather-resistant sound coverage for clear speech & program audio in pavilions, amphitheatres & other permanently installed outdoor venues.
Electro-Voice LRC-1060-B Technical Specifications
| Specification | Details |
|---|---|
| Brand | Electro-Voice |
| Model | LRC-1060-B |
| Series | LRC |
| Product Type | Passive line-radiator column speaker |
| Driver Configuration | Six 2.5-inch active full-range drivers and two 2.5-inch passive radiators |
| Frequency Range (−10 dB) | 70 Hz–15 kHz |
| Maximum SPL | 122 dB |
| Axial Sensitivity | 90 dB SPL, 1 W/1 m |
| Coverage (H × V) | 130° × 20°, fixed symmetrical pattern |
| Continuous Power Handling | 100 W |
| Program Power Handling | 200 W |
| Peak Input Voltage (Lo-Z) | 80 V |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 8.5 Ω at 400 Hz |
| Recommended High-Pass Filter | ≥70 Hz Butterworth, 24 dB/octave |
| 70 V Transformer Taps | 60 W, 30 W, 15 W, 8 W, 4 W |
| 100 V Transformer Taps | 60 W, 30 W, 15 W, 8 W |
| Low-Impedance Operation | Supported |
| Connector | 4-pin Euroblock, input and pass-through |
| Maximum Wire Size | 12 AWG |
| Environmental Rating | IP56c, suitable for full outdoor exposure |
| Certification | EN54-24 Type B |
| Colour | RAL 9004 Signal Black |
| Mounting System | SwifTilt multi-angle pan-and-tilt bracket |
| Maximum Horizontal Pan | ±80° at all downward-tilt angles |
| Vertical Downward Tilt | 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20° and 25° |
| Suspension Points | Two M8 points |
| Dimensions (H × W × D) | 580 × 105 × 144 mm |
| Net Weight | 4.4 kg |
| Shipping Weight | 7.4 kg |
| Included Hardware | Tilt bracket, pan bracket, gland-nut weather cover, dual-ended Allen/TR20 key and pre-installed M8 × 20 mm eyebolt |
| Material Number | F.01U.417.794 |
Know before you buy
Quick answers about the LRC-1060-B, and how it compares.
Where does the LRC-1060-B fit?
The compact LRC column, 58 cm tall: speech and music in reverberant rooms with a normal ceiling height, such as mosque halls, classrooms, lobbies, corridors and small churches. The narrow 130° x 20° pattern sends the sound to the listeners, not to the floor and ceiling, so speech stays clear where a box speaker would echo. For bigger rooms and longer throw, LRC-1100-B.
How is it powered?
Built-in transformer with taps of 60, 30, 15, 8 and 4 W on 70 V, or 60, 30, 15 and 8 W on 100 V; or 8 ohm direct at 100 W continuous. EV's ASC circuit keeps the low end intact at the small taps.
Can it go outdoors?
Yes. IP56, rated by Electro-Voice for full outdoor exposure. A weather cover for the cable gland is in the box.
How is it installed, and what is in the box?
The SwifTilt bracket is included: flush to the wall, pan ±80° and down-tilt from 0° to 25° in steps, inverted mounting possible, cable hidden behind the column. In the box: tilt bracket, pan bracket, gland weather cover, Allen/TR20 key and an M8 eyebolt. Two M8 points for suspension. The 4-pin Euroblock has an input and a pass-through, so columns daisy-chain on one line.
Is it certified for voice alarm use?
Yes, EN54-24 certified, so it can be used as the loudspeaker on an EN54 voice alarm system.
Is it available in white?
Yes. Every LRC column comes in signal black (RAL 9004) and signal white (RAL 9003).
We stock the black version. With Pakistan's dusty environment and the few interiors that call for white speakers, we bring the white one in on demand: ask us for lead time and price.
Which speaker for a masjid?
A masjid needs three kinds of coverage.
Prayer hall: wall-mounted cabinet speakers such as LB2-UC15-L1 / LB2-UC30-L1 or LB1-UM20E-L, or column speakers such as LA1-UM20E-1 / LA1-UM40E-1, LA1-UW36-L1 or the LBC3200/00 line array. They carry speech the length of a hall with hard walls and keep it clear; ceiling speakers in a high hall do not. For a premium sound use Electro-Voice EVID surface speakers (EVID-S5.2TB, EVID-S8.2TB); for a high-end hall with long reverberation, the Electro-Voice LRC column speakers (LRC-1060-B, LRC-1100-B, LRC-2100-B), supplied on request.
Low-ceiling rooms, ablution areas, corridors and offices: ceiling speakers (LC1, LC3, LCM, LHM ranges).
Minaret and courtyard: horn speakers LBC3482/00, LBC3483/00, LBC3484/00 or LBC3481/12, LH3-UC25XL for very long throw, or the LBC3474/00 50 W driver on an LBC3479/00 20" flare for the minaret.
Coverage depends on the acoustic characteristics of the hall (size, height, hard or soft surfaces, reverberation), so the best suggestion comes from ESCO's Bosch and Electro-Voice certified engineers: take the free pre-sales consultation and they will size the amplifier and the number of speakers for your masjid.
