LBC3481/12

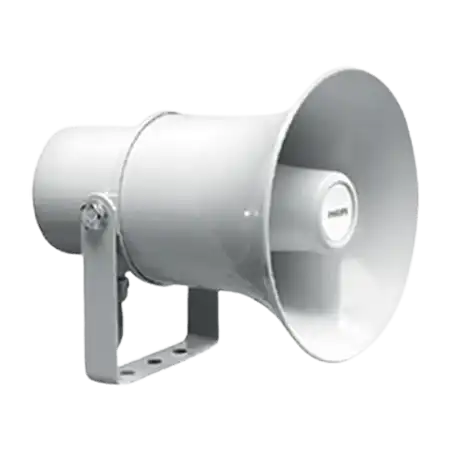

Bosch LBC3481/12 10W Horn loudspeaker, circular, ABS material, water and dust protected according IP65, Rated power (PHC) 10 / 5 / 2.5 W, Sound pressure level at rated power / 1 W (1 kHz, 1 m): 113 dB / 103 dB (SPL), fixed 2 m, 4-wire connection cable, light gray RAL 7035.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Description
Reviews

Loudspeaker Type

Bosch LBC3481/12 10W Horn loudspeaker

Power

Max power: 15 W, Rated power (PHC): 10 / 5 / 2.5 W

Opening Angle

Opening angle 1 kHz / 4 kHz (-6 dB)
Horizontal / Vertical : 160° / 50°

Effective Frequency Range

Effective frequency range (-10 dB): 500Hz to 7kHz

Sound Pressure Level

Sound pressure level at rated power / 1 W (1 kHz, 1 m): 113 dB / 103 dB (SPL)

Applications

Excellent speech reproduction & sound distribution for a wide scope of outdoor applications. Ideal for sports grounds, parks, exhibitions, factories & swimming pools.

Technical Specifications

Electrical

Max power

15 W

Rated power (PHC)

10 / 5 / 2.5 W

Sound pressure level at rated power / 1 W (1 kHz, 1 m)

113 dB / 103 dB (SPL)

Sound pressure level at rated power / 1 W (2 kHz, 1 m)

115 dB / 105 dB (SPL)

Effective frequency range (-10 dB)

500Hz to 7kHz

Opening angle horizontal vertical

1 kHz / 4 kHz (-6 dB)

160° / 50°

160° / 50°

Rated voltage

100 V

Rated impedance

1000 ohm

Connection

2 m, 4-wire cable

Mechanical

Aperture diameter

156 mm (6.14 in)

Overall length

184 mm (7.24 in)

Color

Light grey (RAL 7035)

Weight

1.25 kg (2.75 lb)

Environmental

Operating temperature

-25 ºC to +55 ºC

(-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC

(-40 ºF to +158 ºF)

Relative humidity

<95%
