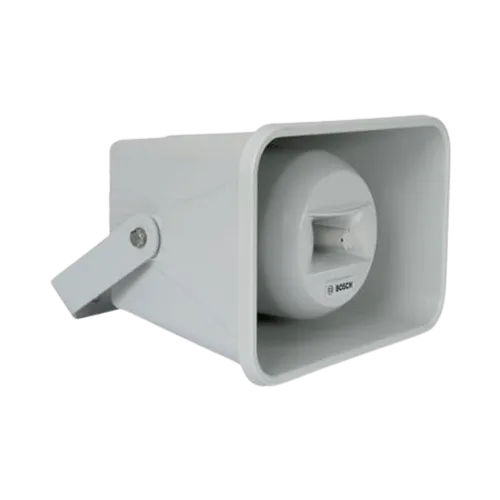

LH1-UC30E

Bosch LH1-UC30E 30W Music horn loudspeaker, ABS material, Maximum power: 45 W, Rated power (PHC): 30 W, Power tapping: 30W / 15W / 7.5W / 3.75W, Sound pressure level at rated power / 1 W(1 kHz, 1 m): 115 / 100 dB (SPL), 212 Hz to 20 kHz Effective frequency range, two-way system for high-quality speech and music, reproduction, IP66, EN54-24 certified, light gray RAL 7035.

https://www.esco.pk/web/image/product.template/14257/image_1920?unique=0feaccd

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LH1-UC30E 30W Music horn loudspeaker,

    Sound Pressure Level

    Sound pressure level at rated power / 1 W (1 kHz, 1 m): 115 / 100 dB (SPL)

    Sound pressure level at rated power / 1 W (1 kHz, 4 m): 100 / 86 dB (SPL)

    Power

    Maximum power 45W, Rated power (PHC) 30W, Power tapping 30 / 15 / 7.5 / 3.75 W

    Effective Frequency Range

    Effective frequency range (- 10 dB): 212 Hz to 20 kHz

    Applications

    The horn is weather protected, suitable for outdoor applications such as sport grounds, leisure parks, exhibition areas & passenger terminals, as well as for indoor public address.

    Opening Angle

    Opening angle at 1 kHz / 4 kHz (‑6 dB):  Horizontal 68° / 68°,  Vertical 100° / 120°

    Electrical

    Maximum power

    45 W

    Rated power (PHC)

    30 W

    Power tapping

    30 / 15 / 7.5 / 3.75 W

    Sound pressure level at rated power / 1 W (1 kHz, 1 m)

    115 / 100 dB (SPL)

    Sound pressure level at rated power / 1 W (1 kHz, 4 m)

    100 / 86 dB (SPL)

    Effective frequency range (- 10 dB)

    212 Hz to 20 kHz

    Opening angle at 1 kHz / 4 kHz (‑6 dB)

    Horizontal

    68° / 68°

    Vertical

    100° / 120°

    Rated input voltage

    Rated impedance



    70V

    100V

    30 W

    167 Ohm

    333 Ohm

    15 W

    333 Ohm

    667 Ohm

    7.5 W

    667 Ohm

    1334 Ohm

    3.75 W

    1334 Ohm

    2668 Ohm

    Connector

    6-pole screw terminal

    * Technical performance data acc. to IEC 60268‑5

    Mechanical

    Dimensions (H x W x D)

    255 x 370 x 354 mm (10.04 x 14.56 x 13.93 in)

    Weight

    5.5 kg (12.45 lb)

    Color

    Light grey (RAL 7035)

    Material (horn / bracket)

    ABS / Aluminum

    Cable diameter

    6 mm to 12 mm (0.24 in to 0.47 in)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage and transport temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
