LBC3493/12

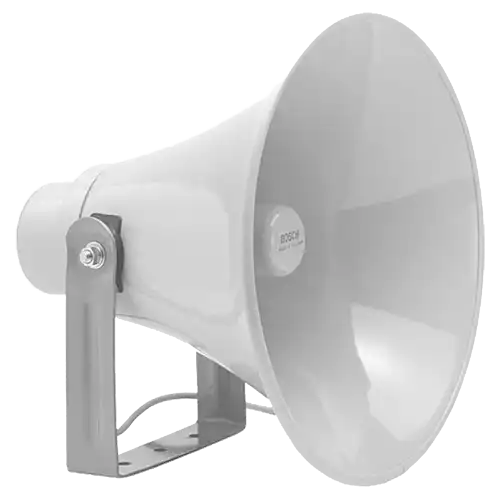

Bosch LBC 3493/12 30W Horn Loudspeaker, Circular, Aluminum/ABS material, water and dust protected according IP65, fixed 2 m, 4-wire connection cable, light gray RAL 7035, 100V Rated Voltage, 30 / 15 / 7.5 W Rated Power, 126 dB / 111 dB (SPL) at rated power / 1 W (1 kHz, 1 m), 380 Hz to 5 kHz Effective Frequency Range (-10dB).

https://www.esco.pk/web/image/product.template/3442/image_1920?unique=21d4292

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LBC3493/12 30W Circular Horn Loudspeaker

    Opening Angle

    At 1 kHz / 4 kHz (-6 dB) Horizontal : 70° / 40°

    At 1 kHz / 4 kHz (-6 dB) Vertical : 70° / 40°

    Applications

    Water and Dust Protection IP65, makes it deal for sports grounds, parks, exhibitions, factories and swimming pools.

    Effective Frequency Range

    380 Hz to 5 kHz

    Sound Pressure Level

     Rated power / 1 W (1 kHz, 1 m) : 126 dB / 111 dB (SPL)

     Rated power / 1 W (2 kHz, 1 m) : 127 dB / 112 dB (SPL)

    Power

    Maximum Power : 45 W, Rated power : 30 / 15 / 7.5 W

    Electrical

    Max power

    45 W

    Rated power (PHC)

    30 / 15 / 7.5 W

    Sound pressure level at rated power / 1 W (1 kHz, 1 m)

    126 dB / 111 dB (SPL)

    Sound pressure level at rated power / 1 W (2 kHz, 1 m)

    127 dB / 112 dB (SPL)

    Effective frequency range (-10 dB)

    380Hz to 5kHz

    Opening angle
    Horizontal
    Vertical

    1 kHz / 4 kHz (-6 dB)
    70° / 40°
    70° / 40°

    Rated voltage

    100 V

    Rated impedance

    333 ohm

    Connection

    2 m, 4-wire cable

    Mechanical

    Aperture diameter

    400 mm (15.75 in)

    Overall length

    353 mm (13.90 in)

    Color

    Light grey (RAL 7035)

    Weight

    3 kg (6.6 lb)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC

    (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC

    (-40 ºF to +158 ºF)

    Relative humidity

    <95%
