LBC3484/00

LBC3484/00

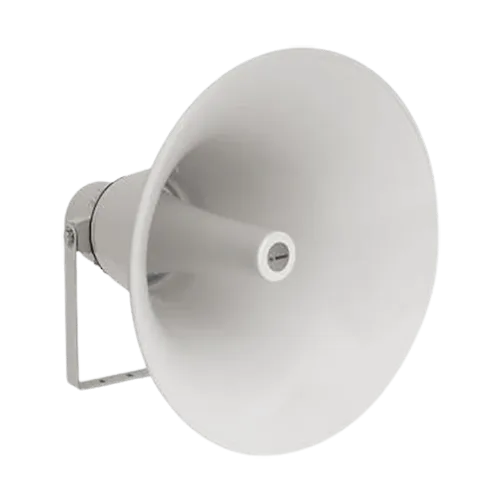

Bosch LBC3484/00 50W 14" Horn Loudspeaker, aluminum, circular, IP65, Rated Power : 50 / 25 / 12.5 W, 127 dB / 110 dB (SPL), Effective Frequency Range : 350 Hz to 4 kHz, Opening angle (1 kHz/4 kHz): 60° / 28°.
LBC3479/00 (20" Horn) + LBC3474/00 (50 W Driver).

Loudspeaker Type

Bosch LBC3484/00 50W 14" Horn Loudspeaker

Power

Maximum power 75 W, Rated power 50 / 25 / 12.5 W

Opening Angle

Opening angle at 1 kHz/4 kHz (-6 dB): 60° / 28°

Effective Frequency Range

Effective frequency range (-10 dB): 350 Hz to 4 kHz

Sound Pressure Level

Sound pressure level at 50 W / 1 W (1 kHz, 1 m): 127 dB / 110 dB (SPL)

Applications

Excellent speech reproduction & sound distribution for a wide scope of outdoor applications. Ideal for sports grounds, parks, exhibitions, factories & swimming pools.

Electrical

Maximum power

75 W

Rated power

50 / 25 / 12.5 W

Sound pressure level

at 50 W / 1 W (1 kHz, 1 m)

127 dB / 110 dB (SPL)

Effective frequency range (-10 dB)

350 Hz to 4 kHz

Opening angle at 1 kHz/4 kHz (-6 dB)

60° / 28°

Rated voltage

100 V

Rated impedance

200 ohm

Connector

Screw terminal block

Mechanical

Dimensions (L x D max)

499 x 490 mm (20 x 19.6 in)

Weight

6 kg (13.22 lb)

Color

Light grey (RAL 7035)

Cable diameter

6 mm to 12 mm

(0.24 in to 0.47 in)

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
