LB2-UC30-L1

Bosch LB2-UC30-L1 Premium-sound Cabinet Loudspeaker, 30W, White, 105/90 dB (SPL), 100 Hz to 19 kHz Effective Frequency Range, 166° / 83° (horizontal) 140° / 76° (vertical) Opening Angle, 15.5/70/100 V rated input range, High-fidelity music and speech reproduction, Selectable 8 ohm, 70 V and 100 V inputs.

https://www.esco.pk/web/image/product.template/3422/image_1920?unique=0af31b3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare
    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    LB2-UC30-L1

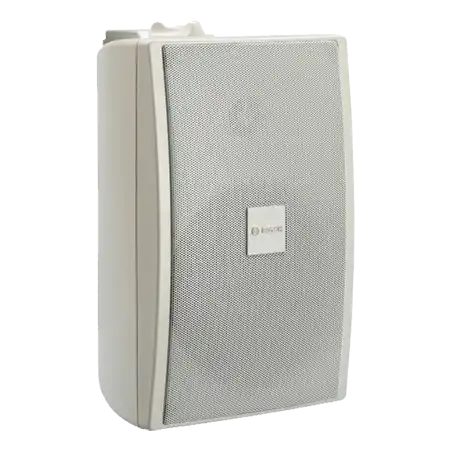

    The LB2-UC30-L1 Premium‑sound cabinet loudspeakers have a woofer and built-in dome tweeter and are intended for clear reproduction of speech, foreground, and BGM to be used in general indoor and outdoor applications.

    Features

    High-fidelity music and speech reproduction, Selectable 8 ohm, 15.5 V, 70 V and 100 V inputs, Compact robust ABS enclosure, Water and dust protected IP65.

    Certification

    All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards.

    Electrical

    Maximum power

    45 W

    Rated power (PHC)

    30 W

    Power tapping

    30/15/7.5/3.75 W

    Sound pressure level

    at rated power / 1 W (1 kHz, 1 m)

    105/90 dB (SPL)

    Effective frequency range (-10 dB)

    100 Hz to 19 kHz

    Opening angle

    at 1 kHz / 4 kHz (-6 dB)

    166° / 83° (hor.) 140° / 76° (ver.)

    Rated input voltage

    15.5/70/100 V

    Rated impedance

    8/163/333 ohm

    Transducers

    127 mm (5”) woofer, 13 mm (0.51 “) dome tweeter

    Connection

    2 m (78.8 in.) two‑wire cable

    Mechanical

    Dimensions (HxWxD)

    250x 60x140 mm 9.84x6.30x5.51 in

    Weight

    Approx. 2.4 kg (5.29 lb)

    Color

    White (RAL 9010)

    Environment

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage and transport temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
