LB1-BW12-D1

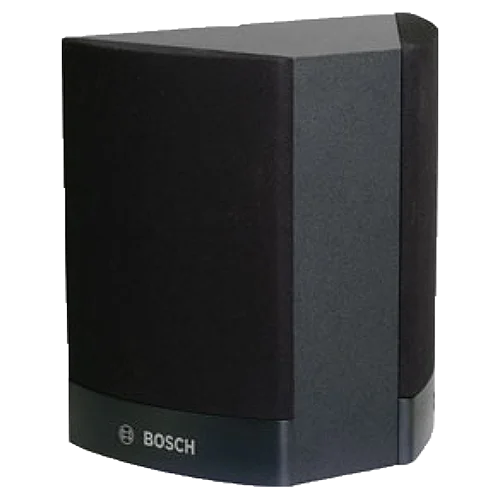

Bosch LB1-BW12-D1 12W Bi-directional Cabinet Speaker, Black, 97 / 86 dB Sound Pressure Level, Rated Impedance: 833 ohm, 140 Hz to 20 kHz Effective frequency range (-10 dB), Opening angle at 1 kHz 4 kHz (-6dB) :270° / 165°, 100V Rated input voltage.

https://www.esco.pk/web/image/product.template/3410/image_1920?unique=738c19a

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

     LB1-BW12-D1

    The LB1-BW12-x is a 12W, cost-effective, bidirectional loudspeaker for indoor use. The baffle design creates a wide opening angle, making this loudspeaker very suitable for use in long corridors.

    Functions

     The cabinets have two dual cone loudspeaker drivers, mounted on an angled baffle, provide wide opening angle. Use in long corridors, such as in shopping arcades.

    Features

    Wedge-shaped design provides bidirectional audio, Angled front baffle provides better sound quality in the listening area

    Electrical*

    Maximum power

    18 W

    Rated power

    12 / 6 / 3 W

    Sound pressure level at 12 W / 1 W (1 kHz, 1 m)

    97 / 86 dB (SPL)

    Effective frequency range (-10 dB)

    140 Hz to 20 kHz

    Opening angle at 1 kHz / 4 kHz (-6 dB)

    270° / 165°

    Rated input voltage

    100 V

    Rated impedance

    833 ohm

    Connector

    4-pole push-in terminal block

    * Technical performance data acc. to IEC 60268-5

    Mechanical

    Dimensions (H x W x D)

    240 x 238 x 133 mm

    (9.4 x 9.3 x 5.24 in)

    Weight

    1.5 kg (3.3 lb)

    Color

    Black

    Cabinet / Cloth (D)

    Matches RAL 9004 / RAL 9004

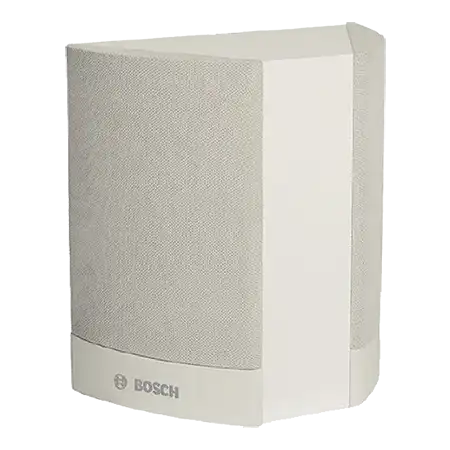

    Cabinet / Cloth (L)

    Matches RAL 9010 / RAL 7044

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)



    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)



    Relative humidity

    <95%
