LB1-UW06-FL1

Bosch LB1-UW06-FL1 6W Cabinet loudspeaker, SPL at 6 W / 1 W: 99 dB / 91 d B, Effective frequency range (-10 dB) : 185 Hz to 17 kHz, Opening angle 1 kHz / 4 kHz (-6 dB) : horizontal 194° / 82°, White Color.

https://www.esco.pk/web/image/product.template/3415/image_1920?unique=0d71dc5

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    LB1-UW06-FL1

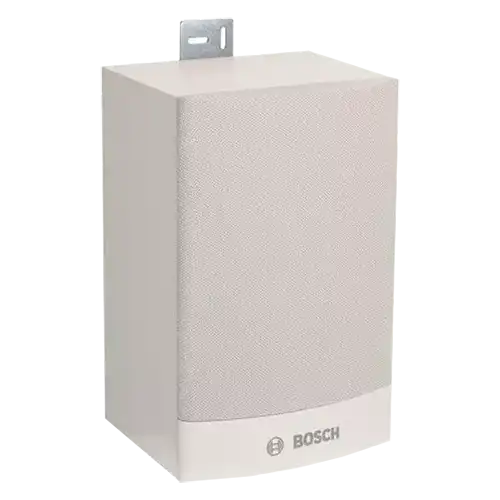

    The LB1-UW06-FD1 is a 6 W, general-purpose, cost-effective loudspeaker for indoor use. Two brackets, fixed to the rear panel, are provided for quick and easy mounting on a wall or ceiling.

    Features

    Good speech intelligibility and BGM reproduction, Mounting brackets for wall or ceiling mounting, Complies with international installation and safety regulations

    Functions

    The robust, solid MDF enclosures are covered with a durable, easy-to-clean vinyl in a choice of white. The ABS fronts are covered with fine woven cloth in matching color.

    Electrical*

    Maximum power

    9W

    Rated power

    6/3/1.5/0.75 W

    Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

    99dB/91dB (SPL)

    Sound pressure level at 6 W / 1 W (4 kHz, 1 m)

    100dB/92dB (SPL)

    Effective frequency range (-10 dB)

    185Hz to 17kHz

    Opening angle at 1 kHz / 4 kHz (-6 dB)

    horizontal 194°/82°

    Rated input voltage

    70 / 100 V

    Rated impedance

    835/1667 ohm

    Connector

    2x 5‑pole push‑in terminal block

    * Technical performance data acc. to IEC 60268-5

    Mechanical

    Dimensions (H x W x D)

    240x151x139 mm

    (9.5x5.9x5.5 in)

    Weight

    1.68 kg (3.7 lb)

    Color

    White

    Cabinet / Cloth (D)

    Matches RAL 9004 / RAL 9004

    Cabinet / Cloth (L)

    Matches RAL 9010 / RAL 7044

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)



    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)



    Relative humidity

    <95%
