LB1-CW06-D1

LB1-CW06-D1

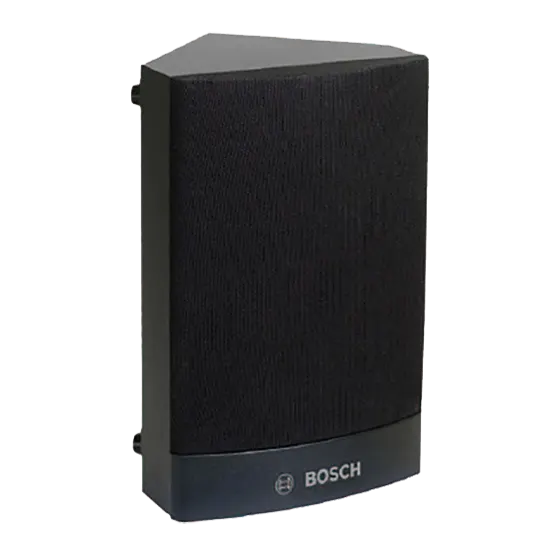

Bosch LB1-CW06-D1 Corner Mounting Cabinet Speaker for paging and background music, Black Color, 6 watts 100 volt line, Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 98 / 90 dB (SPL), Effective frequency range (-10 dB) : 180 Hz to 20 kHz, Opening angle 1 kHz / 4 kHz : Horizontal: 165° / 95° & Vertical: 150° / 75°

LB1-CW06-D1

The LB1-CW06-D1 is a 6W, general purpose cost-effective loudspeaker for indoor use. Two brackets with keyholes, fixed on one side provide quick and easy mounting in corners between two walls, or between a wall and ceiling.

Features

Good speech intelligibility and background music reproduction, Special shape for mounting in corners, MDF construction, Compliance with international installation and safety regulation


Function

The robust, solid MDF enclosures are covered with a durable, easy-to-clean vinyl in Black. The ABS fronts are covered with fine woven cloth in matching color. The cabinet shapes allow installation in corners between walls, & between wall & ceiling.

Electrical*

Maximum power

9 W

Rated power

6 / 3 / 1.5 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

99 dB / 91 dB (SPL)

Effective frequency range (-10 dB)

180 Hz to 20 kHz

Opening angle at 1 kHz / 4 kHz (-6 dB)

horizontal 165° / 95°

Vertical 150° / 75°

Rated input voltage

100 V

Rated impedance

1667 ohm

Connector

4-pole push-in terminal block

* Technical performance data acc. to IEC 60268-5

Mechanical

Dimensions (H x W x D)

240 x 151 x 138 mm (9.5 x 5.9 x 5.6 in)

Weight

0.8 kg (1.8 lb)

Color

Black

Cabinet / Cloth (D)

Matches RAL 9004 / RAL 9004

Cabinet / Cloth (L)

Matches RAL 9010 / RAL 7044

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)



Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)



Relative humidity

<95%
