LB2-UC15-L1

LB2-UC15-L1

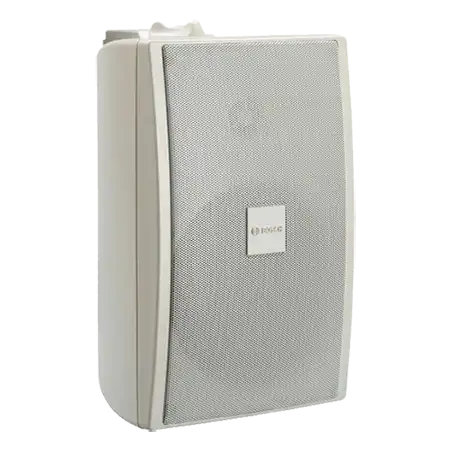

Bosch LB2-UC15-L1 Premium-sound, 15W Cabinet Loudspeaker, White, 99/87 dB (SPL), 95 Hz to 20 kHz Effective Frequency Range, Opening Angle : 184° / 112° horizontal & 170° / 35° Vertical.

LB2-UC15-L1

The LB2-UC15-L1 Premium‑sound cabinet loudspeakers have a woofer and built-in dome tweeter and are intended for clear reproduction of speech, foreground, and BGM to be used in general indoor and outdoor applications.

Features

High-fidelity music and speech reproduction, Selectable 8 ohm, 70 V and 100 V inputs, Compact robust ABS enclosure, Water and dust protected IP65.

Certifications

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards.


Electrical

Maximum power

22.5 W

Rated power (PHC)

15 W

Power tapping

15 / 7.5 / 3.75 / 1.9 W

Sound pressure level

at rated power / 1 W (1 kHz, 1 m)

99 / 87 dB (SPL)

Effective frequency range (-10dB)

95 Hz to 20 kHz

Opening angle

at 1 kHz / 4 kHz (-6 dB)

184° / 112° (hor.)

170° / 35° (ver.)

Rated input voltage

11 / 70 / 100 V

Rated impedance

8 / 326 / 667 ohm

Transducers

101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter

Connection

2 m (78.8 in.) twowire cable

Mechanical

Dimensions (HxWxD)

205 x 136 x 117 mm 8.07 x 5.35 x 4.60 in

Weight

Approx. 1.9 kg (4.18 lb)

Color

White (RAL 9010) (L)

Environment

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage and transport temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
