LBC3483/00

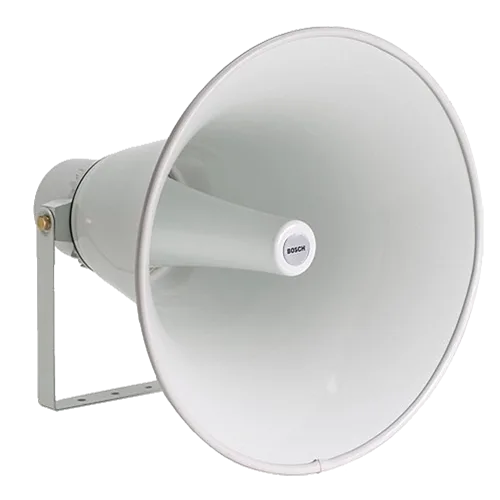

Bosch LBC 3483/00 35W Horn Loudspeaker, aluminum, circular, IP65, Rated Power : 35 / 17.5 / 8.75 W, 127 dB / 112 dB (SPL), Effective Frequency Range : 380 Hz to 5 kHz.

https://www.esco.pk/web/image/product.template/3462/image_1920?unique=fff3709

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LBC3483/00 35W Horn Loudspeaker

    Power

    Maximum Power : 52.5W, Rated power : 35 / 17.5 / 8.75 W

    Opening Angle

    Opening angle at 1 kHz/4 kHz (-6 dB) : 50° / 25°

    Effective Frequency Range

    380 Hz to 5 kHz (-10dB)

    Sound Pressure Level

     35 W/1 W (1 kHz, 1 m) : 127 dB / 112 dB  (SPL)

    Applications

    Splash resistant, makes it ideal for sports grounds, parks, exhibitions, factories, and swimming pools.

    Electrical

    Maximum power

    52.5 W

    Rated power

    35 / 17.5 / 8.75 W

    Sound pressure level

    at 35 W / 1 W (1 kHz, 1 m)

    127 dB / 112 dB (SPL)

    Effective frequency range (-10 dB)

    380 Hz to 5 kHz

    Opening angle at 1 kHz/4 kHz (-6 dB)

    50° / 25°

    Rated voltage

    100 V

    Rated impedance

    286 ohm

    Connector

    Screw terminal block

    Mechanical

    Dimensions (L x D max)

    499 x 490 mm (20 x 19.6 in)

    Weight

    4.5 kg (9.9 lb)

    Color

    Light grey (RAL 7035)

    Cable diameter

    6 mm to 12 mm

    (0.24 in to 0.47 in)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
