LBC3474/00 50W

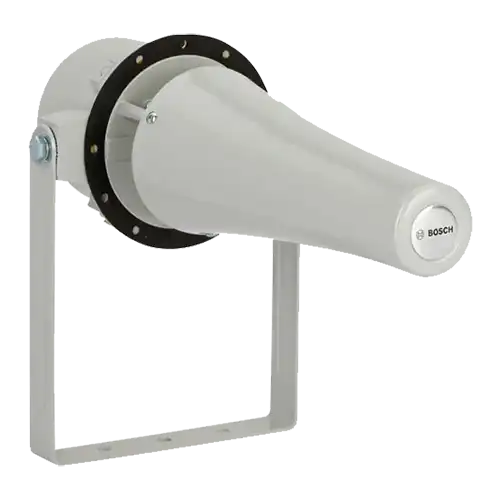

Bosch LBC 3474/00 Horn driver 50 W, for use with LBC3478/00 (14") or LBC3479/00 (20") horns, light gray RAL 7035, 50 / 25 / 12.5 W Rated Power, 127 dB / 110 dB (SPL), Effective frequency range (-10 dB) : 350 Hz to 4 kHz, Opening angle : at 1 kHz/4 kHz (-6 dB) : 60° / 28°.

https://www.esco.pk/web/image/product.template/3360/image_1920?unique=11324b4

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Driver Unit

    Bosch LBC3474/00 50 W Horn Driver Unit

    Power

    Maximum Power : 75 W, Rated power : 50 / 25 / 12.5 W

    Opening Angle

    Opening angle at 1 kHz/4 kHz (-6 dB) : 60° / 28°

    Effective Frequency Range

    350 Hz to 4 kHz (-10dB)

    Sound Pressure Level

    50 W / 1 W (1 kHz, 1 m) : 127 dB / 110 dB (SPL)

    Applications

    Splash resistant, makes it ideal for sports grounds, parks, exhibitions, factories, and swimming pools.

    Electrical

    Maximum power

    75 W

    Rated power

    50 / 25 / 12.5 W

    Sound pressure level at 50 W / 1 W (1 kHz, 1 m)

    127 dB / 110 dB (SPL)

    Effective frequency range (-10 dB)

    350 Hz to 4 kHz

    Opening angle at 1 kHz/4 kHz (-6 dB)

    60° / 28°

    Rated voltage

    100 V

    Rated impedance

    200 ohm

    Connector

    Screw terminal block

    Mechanical

    Dimensions (L x D max)

    Driver: 445 x 175 mm (17.5 x 6.88 in)

    Weight

    Driver: 3.5 kg (7.70 lb)

    Color

    Light grey (RAL 7035)

    Cable diameter

    6 mm to 12 mm

    (0.24 in to 0.47 in)

    Environmental

    Operating temperature

    -25 ºC to +55 ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
