LBC3200/00

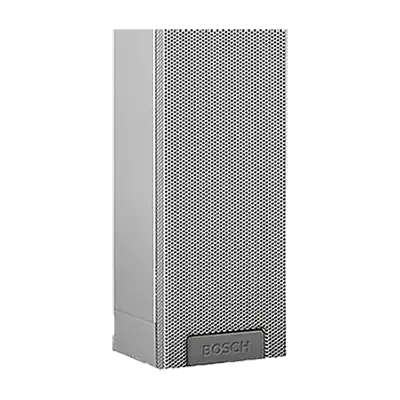

Bosch LBC 3200/00 Line Array Indoor Loudspeaker for small and medium indoor environments, 30W, Rated Power : 30 / 15 / 7.5 W, SPL at 30W/1 W (1 kHz, 1 m) : 106/91 dB (SPL), Effective frequency range (-10 dB) : 190 Hz to 18 kHz, Opening angle at 1 kHz/4 kHz : Horizontal (220°/130°), vertical (70°/18°).

https://www.esco.pk/web/image/product.template/3440/image_1920?unique=e9ccb31

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LBC 3200/00 30W Line Array Indoor Loudspeaker

    Opening Angle

    Horizontal at 1 kHz / 4 kHz (-6 dB) : 220° / 130°

    Vertical at 1 kHz / 4 kHz (-6 dB) : 70° / 18

    Suppressed Side Lobes

    The LBC 3200/00 has highly suppressed side lobes in the vertical plane. This provides a much clearer, less colored sound, and greatly reduces the possibilities for acoustic feedback.

    Power

    Maximum power 45 W, Rated power 30 / 15 / 7.5 W

    Applications

    This loudspeaker, with its good directivity, can handle small and medium indoor environments such as congress venues, meeting rooms, showrooms and canteens

    Sound Reproduction

    With a sound pressure level of 106 dB at 1 m, at 30W and frequencies ranging from 190 Hz to 18 kHz, give loud and clear sound reproduction even at a significant distance from the loudspeaker.

    Electrical

    Maximum power

    45 W

    Rated power

    30 / 15 / 7.5 W

    Sound pressure level

    at 30 W / 1 W (1 kHz, 1 m)

    106 / 91 dB (SPL)

    Sound pressure level

    at 30 W / 1 W (2 kHz, 1 m)

    108 / 93 dB (SPL)

    Effective frequency range (-10 dB)

    190 Hz to 18 kHz

    Opening angle

    1 kHz / 4 kHz (-6 dB)

    Horizontal

    Vertical

    220° / 130°

    70° / 18°

    Rated input voltage

    100 V

    Rated impedance

    333 ohm

    Connector

    Screw terminal block

    Mechanical

    Dimensions (H x W x D)

    600 x 80 x 90 mm (23.62 x 3.15 x 3.54 in)

    Weight

    3 kg (6.6 lb)

    Color

    Light gray (matches RAL 9022)

    Environmental

    Operating temperature

    -25 ºC to +55ºC (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC (-40 ºF to +158 ºF)

    Relative humidity

    <95%
