LA1-UW36-D1

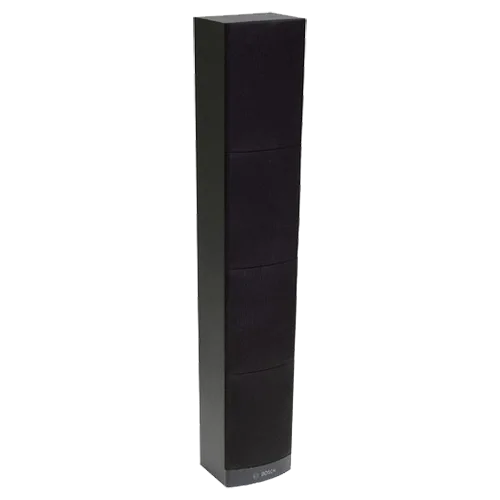

Bosch LA1-UW36-D1 36W Column Loudspeaker, MDF enclosure, finished in black, Rated power 36 / 18 / 9 W, Sound pressure level at 36 W / 1 W (1 kHz, 1 m) : 114 dB / 98 dB (SPL), Effective frequency range (-10 dB) : 160 Hz to 19 kHz.

https://www.esco.pk/web/image/product.template/3419/image_1920?unique=9d04d4a

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Loudspeaker Type

    Bosch LA1-UW36-D1 36W Black Column Loudspeaker

    Power

    Maximum Power : 54W, Rated power : 36 / 18 / 9 W

    Applications

    For indoor use where beaming is desirable, such as places of worship, conference venues, meeting rooms, and canteens.

    Effective Frequency Range

    160 Hz to 19 kHz (-10dB)

    Sound Pressure Level

     36 W / 1 W (1 kHz, 1 m) : 114 dB / 98 dB (SPL)

    Opening Angle

    Horizontal opening angle at 1 kHz / 4 kHz (-6 dB) : 190° / 88°

    Vertical opening angle at 1 kHz / 4 kHz (-6 dB) : 30° / 8°

    Electrical

    Maximum power

    54 W

    Rated power

    36 / 18 / 9 W

    Sound pressure level

    at 24 W / 1 W (1 kHz, 1 m)

    114 dB / 98 dB (SPL)

    Effective frequency range (-10 dB)

    160 Hz to 19 kHz

    Opening angle

    1 kHz / 4 kHz (-6 dB)

    horizontal

    190° / 88°

    vertical

    30° / 8°

    Rated input voltage

    100 V

    Rated impedance

    278 ohm

    Connector

    4‑pole push‑in terminal block

    Mechanical

    Dimensions (H x W x D)

    841x 151 x 129 mm

    (33.1 x 5.9 x 5.1 in)

    Weight

    6 kg ( 13.2 lb)

    Color

    Black

    cabinet / cloth (D)

    Matches RAL 9004 / RAL 9004

    cabinet / cloth (L)

    Matches RAL 9010 / RAL 7044

    Environmental

    Operating temperature

    -25 ºC to +55ºC

    (-13 ºF to +131 ºF)

    Storage temperature

    -40 ºC to +70 ºC

    (-40 ºF to +158 ºF)

    Relative humidity

    <95%
