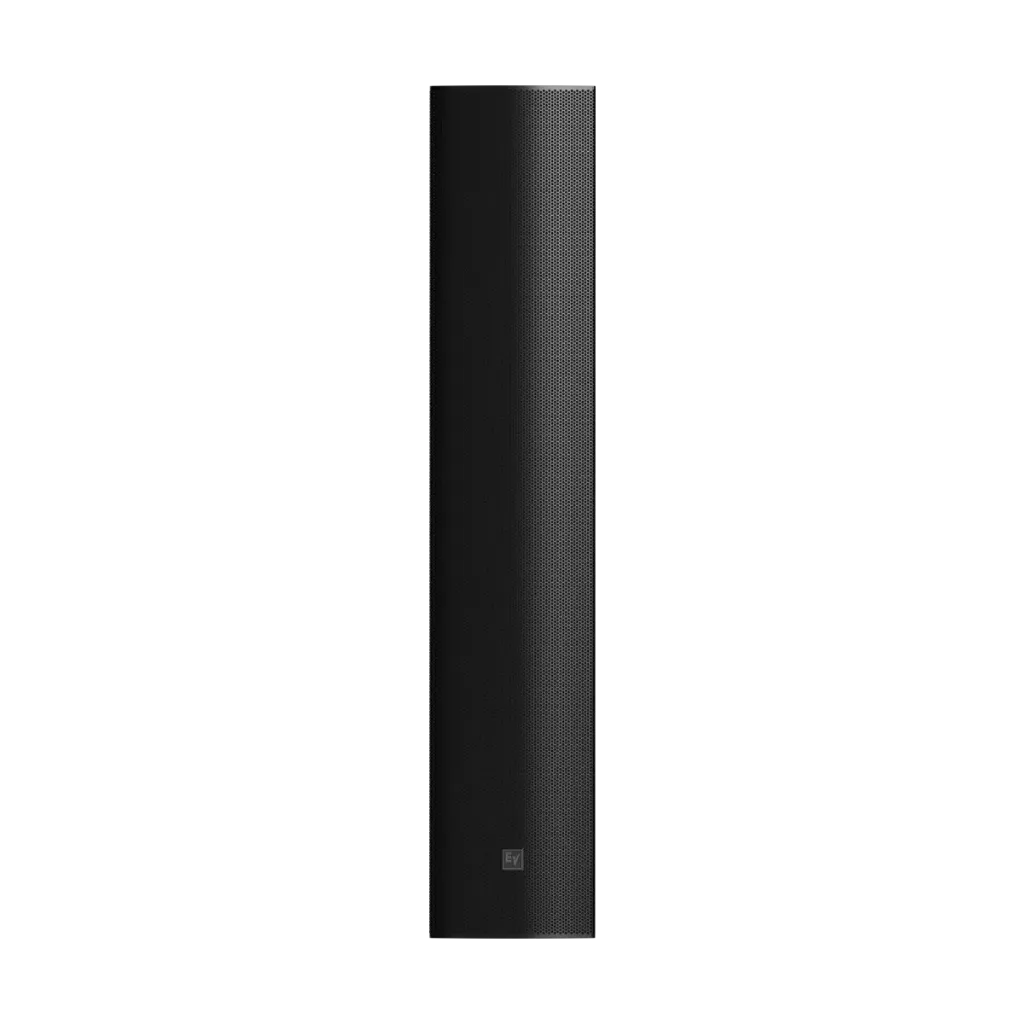

The Full-Range Column
The Electro-Voice LRC-2100-B is the flagship of the LRC line: a two-way column that pairs two 6.5-inch woofers with twelve 2.5-inch mid-high drivers, so one slim enclosure covers speech and full music without a subwoofer.
Bass to 45 Hz
Two 6.5-inch woofers extend the response to 45 Hz, for music and program playback from a single column.
180° Wide, 25° or 45° Vertical
PaSS phase plugs on the twelve 2.5-inch drivers keep the vertical pattern tight; a switch selects 25° or 45°, with a built-in 7.5° down-tilt aimed at the listeners.
128 dB Output
300 W continuous, 600 W program at 8 ohms, with 91.5 dB sensitivity in the narrow pattern.

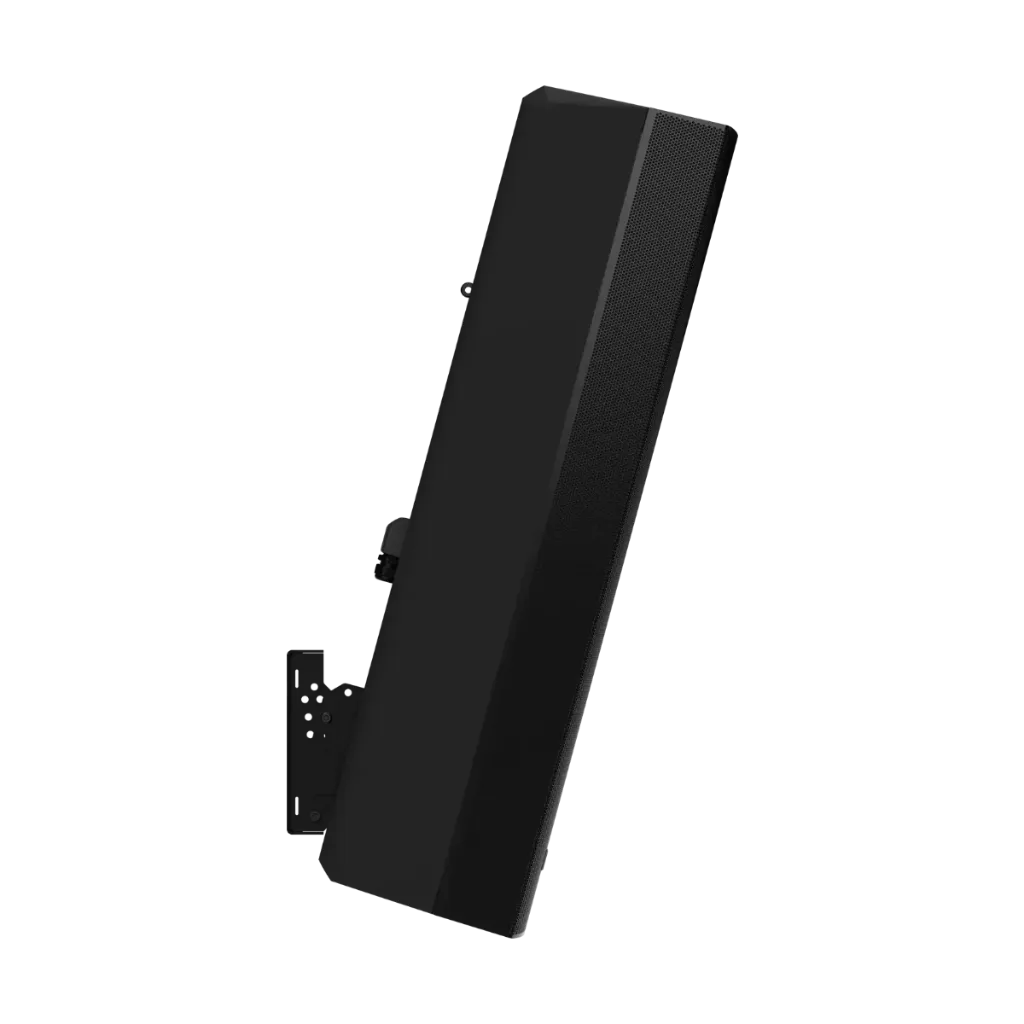

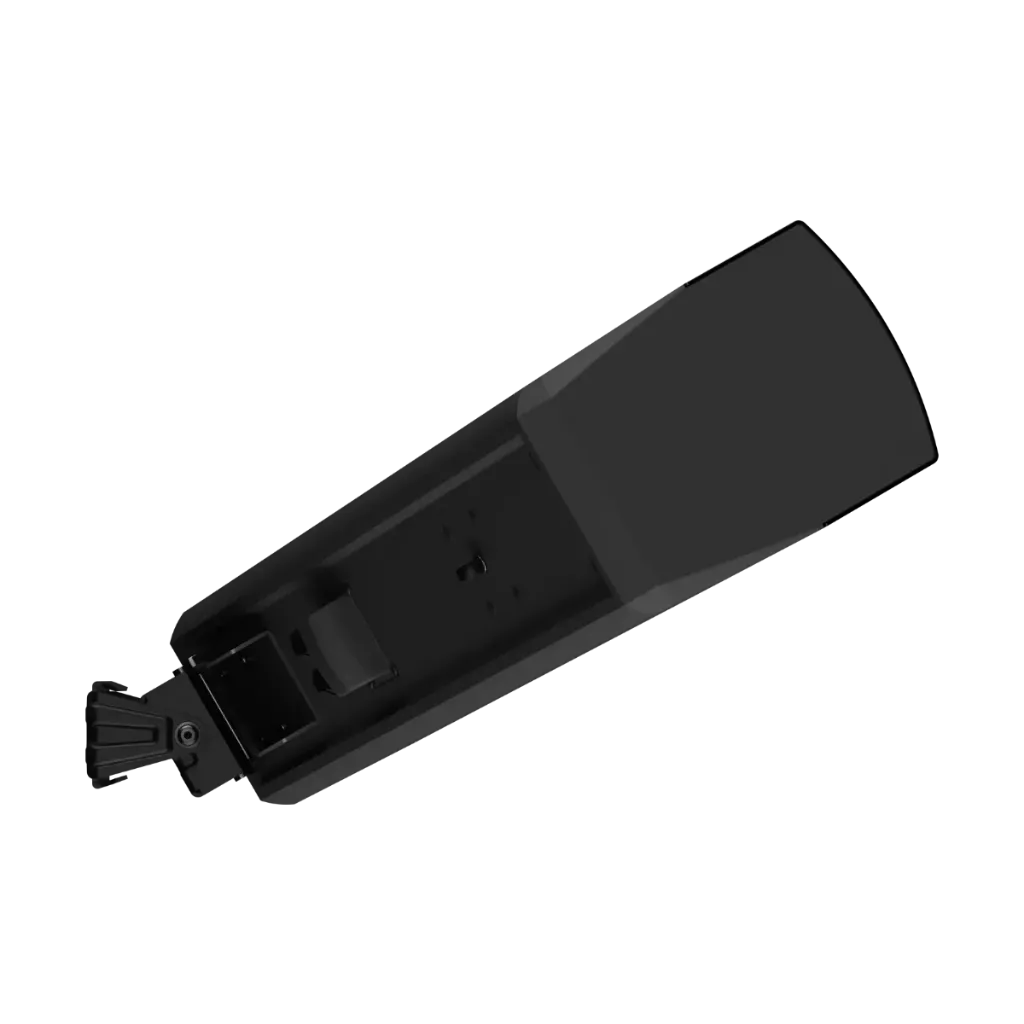

SwifTilt Mounting System
The included bracket mounts flush to the wall, tilts down in steps to 25°, pans ±80° and can be inverted for up-tilt. Six M8 points for suspension.
Indoor or Outdoor
IP55-rated for full outdoor exposure, in a paintable RAL 9004 signal black enclosure (white on request).
Best with Dynacord DSP
Dedicated presets on Dynacord DSP matrix processors and amplifiers balance output and protection; supported in EASE, EASE Focus3, PREVIEW and SONICUE.
Installation Details
- Horizontal adjustment: up to ±80° pan at every down-tilt position
- Vertical adjustment: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20° or 25° downward tilt; invert the column for up-tilt
- Suspension points: six M8 x 20 mm inserts
- Connection: 4-pin Euroblock input and pass-through, up to 10 AWG cable, gland nut weather cover
- Included hardware: tilt bracket, pan bracket, gland nut weather cover, dual-ended Allen key and pre-installed M8 eyebolt
- Size and weight: 950 × 185 × 250 mm, 15.7 kg
The LRC-2100-B is a low-impedance (8 Ω) loudspeaker: it runs from a power amplifier with a 50 Hz high-pass filter, not from a 70/100 V line. For 70/100 V systems see the LRC-1060-B and LRC-1100-B.
Where the LRC-2100-B Fits
Full-range sound from a discreet column, for rooms where a separate subwoofer is not wanted.
Places of Worship
Clear speech and full music in large mosque halls, churches and other reverberant spaces, with the vertical pattern kept off the floor and ceiling.
Auditoriums and Halls
Main or support speakers for auditoriums, multipurpose halls and conference venues, with Dynacord DSP presets for the best balance of output and protection.
Outdoor Venues
IP55 construction for pavilions, courtyards and amphitheatres, mounted close to the wall on the SwifTilt bracket.
Key specs
- Two-way column: 2 × 6.5-inch woofers plus 12 × 2.5-inch mid-high drivers
- 45 Hz to 16 kHz, no subwoofer needed
- 128 dB max SPL; 300 W continuous, 600 W program
- 180° horizontal, 25° or 45° vertical (selectable), 7.5° down-tilt
- 8 Ω low impedance, 50 Hz high-pass recommended
- SwifTilt bracket included: ±80° pan, down-tilt to 25°, invertible
- IP55 for outdoor use, paintable black enclosure
- 950 × 185 × 250 mm, 15.7 kg
| Configuration | 2-way passive column: (2) 6.5 in bass drivers, (12) 2.5 in mid-high drivers with PaSS phase plugs |
| Frequency range (-10 dB) | 45 Hz to 16 kHz |
| Maximum SPL | 128 dB (narrow), 126 dB (wide) |
| Axial sensitivity (1 W / 1 m) | 91.5 dB (narrow), 90 dB (wide) |
| Coverage (H × V) | 180° × 25° (narrow) or 180° × 45° (wide), selectable; 7.5° acoustic down-tilt |
| Power handling | 300 W continuous, 600 W program |
| Nominal impedance | 8 Ω (minimum 6.4 Ω at 280 Hz) |
| Recommended high-pass filter | 50 Hz Butterworth, 24 dB/oct |
| Connector | 4-pin Euroblock, input and pass-through (max 10 AWG) |
| Mounting | SwifTilt multi-angle tilt and pan bracket: ±80° pan; 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° down-tilt |
| Suspension points | (6) M8 × 20 mm |
| IP rating | IP55 |
| Colour | RAL 9004 signal black (LRC-2100-B); RAL 9003 signal white (LRC-2100-W) on request |
| Dimensions (H × W × D) | 950 × 185 × 250 mm |
| Weight | 15.7 kg (shipping 21.4 kg) |
| Included hardware | Tilt bracket, pan bracket, gland nut weather cover, dual-ended Allen key, M8 × 20 mm eyebolt (pre-installed) |
| Software support | Dynacord SONICUE, EV PREVIEW, AFMG EASE and EASE Focus3 |
| Order number | LRC-2100-B, F.01U.417.802 |
Know before you buy
Quick answers about the LRC-2100-B, and how it compares.
Where does the LRC-2100-B fit?
Rooms that need speech and full music from a discreet column: large mosque halls, churches, auditoriums, multipurpose halls and outdoor venues.
With two 6.5-inch woofers it reaches 45 Hz, so it plays music on its own. The LRC-1060 and LRC-1100 are speech-first columns that reach 70 Hz and 60 Hz.
How is it powered?
From a power amplifier: it is an 8 Ω low-impedance speaker rated 300 W continuous and 600 W program, with a 50 Hz high-pass filter.
It has no 70/100 V transformer, so it does not go on a 100 V line. For 100 V systems use the LRC-1060-B or LRC-1100-B. It sounds best on Dynacord amplifiers and DSP matrices, which carry dedicated LRC-2100 presets.
25° or 45° vertical coverage: which one?
A switch on the speaker selects it. 25° throws further and keeps sound off the ceiling and floor in tall, reverberant rooms. 45° covers listeners closer to the speaker, for lower rooms or seating near the wall.
Can it go outdoors?
Yes. The enclosure is IP55 rated for full outdoor exposure, and the gland nut weather cover seals the cable entry. The paintable finish can match the building.
How is it installed, and what is in the box?
The SwifTilt bracket is in the box: it mounts the column close to the wall, tilts it down in steps to 25°, pans ±80° and can be inverted for up-tilt. Six M8 inserts allow suspension.
Included: tilt bracket, pan bracket, gland nut weather cover, dual-ended Allen key and a pre-installed M8 eyebolt. Connection is a 4-pin Euroblock with pass-through. 950 × 185 × 250 mm, 15.7 kg.
Is it available in white?
Yes. Every LRC column comes in signal black (RAL 9004) and signal white (RAL 9003).
We stock the black version. With Pakistan's dusty environment and the few interiors that call for white speakers, we bring the white one in on demand: ask us for lead time and price.
