LA1-UW36-L1

LA1-UW36-L1

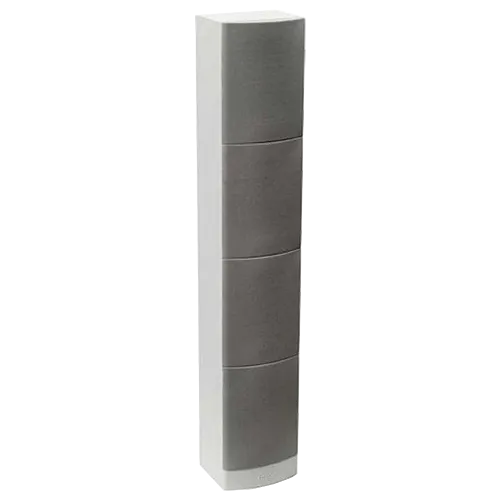

Bosch LA1-UW36-L1 36W Column Loudspeaker, MDF enclosure, finished in White, Rated power 36 / 18 / 9 W, Sound pressure level at 36 W / 1 W (1 kHz, 1 m) : 114 dB / 98 dB (SPL), Effective frequency range (-10 dB) : 160 Hz to 19 kHz.

Loudspeaker Type

Bosch LA1-UW36-L1 36W White Column Loudspeaker

Power

Maximum Power : 54W, Rated power : 36/18/9 W

Opening Angle

Horizontal opening angle at 1 kHz / 4 kHz (-6 dB) : 190° / 88°

Vertical opening angle at 1 kHz / 4 kHz (-6 dB) : 30° / 8°

Effective Frequency Range

160 Hz to 19 kHz (-10dB)

Sound Pressure Level

 36 W/1 W (1 kHz, 1 m) : 114 dB/98 dB (SPL)

Applications

For indoor use where beaming is desirable, such as places of worship, conference venues, meeting rooms, and canteens.

Electrical

Maximum power

54 W

Rated power

36 / 18 / 9 W

Sound pressure level

at 24 W / 1 W (1 kHz, 1 m)

114 dB / 98 dB (SPL)

Effective frequency range (-10 dB)

160 Hz to 19 kHz

Opening angle

1 kHz / 4 kHz (-6 dB)

horizontal

190° / 88°

vertical

30° / 8°

Rated input voltage

100 V

Rated impedance

278 ohm

Connector

4pole pushin terminal block

Mechanical

Dimensions (H x W x D)

841x 151 x 129 mm

(33.1 x 5.9 x 5.1 in)

Weight

6 kg ( 13.2 lb)

Color

White

cabinet / cloth (D)

Matches RAL 9004 / RAL 9004

cabinet / cloth (L)

Matches RAL 9010 / RAL 7044

Environmental

Operating temperature

-25 ºC to +55ºC

(-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC

(-40 ºF to +158 ºF)

Relative humidity

<95%
