LB10-UC06-L

LB10-UC06-L

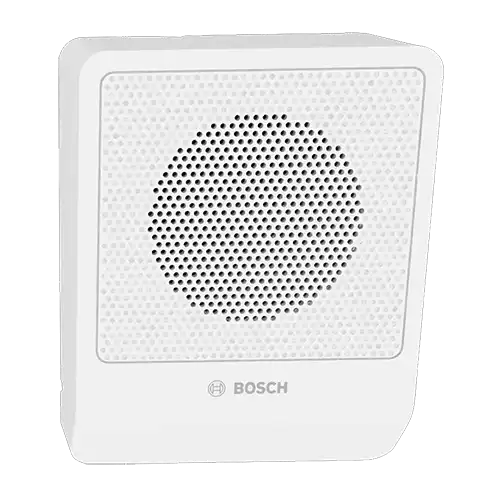

Bosch LB10-UC06-L 6W Angled White Cabinet speaker, Rated power 6 / 3 / 1.5 / 0.75 W, Sound pressure level at 6 W / 1 W (1 m) : 99 dB / 91 dB (SPL), Effective frequency range 145 Hz to 18kHz (-10 dB), Opening angle 1 kHz / 4 kHz (-6 dB) : Horizontal 165º / 88º & Vertical 165º / 88º, Rated input voltage 100 V, Rated impedance 1667 ohm, Connector 4-pole screw terminal block, Dimensions (H x W x D) : 207.2 mm x 160.5 mm x 73.2 mm.

LB10-UC06-L

The LB10-UC06-L is a 6W, angled, general-purpose & cost-effective loudspeaker for indoor use. Keyholes at the rear are provided for quick and easy wall mounting.

Features

Good speech Intelligibility and Background Music reproduction, ABS construction, Complies with international installation and safety regulations.

Certification

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards.

Electrical

Rated power

6 / 3 / 1.5 / 0.75 W

Sound pressure level at 6 W / 1 W (1 m)

99 dB / 91 dB (SPL)

Effective frequency range

145 Hz to 18kHz (-10 dB)

Opening angle

1 kHz / 4 kHz (-6 dB)

Horizontal

165º / 88º

Vertical

165º / 88º

Rated input voltage

100 V

Rated impedance

1667 ohm

Connector

4-pole screw terminal block

Mechanical

Dimensions (H x W x D)

207.2 mm x 160.5 mm x

73.2 mm

(8.16 in x 6.32 in x 2.88 in)

Weight

0.77 kg (1.70 lb)

Color

White (RAL 9003)

Environmental

Operating temperature

-25 ºC to +55ºC

(-13 ºF to +131 ºF)

Storage and transport temperature

-40 ºC to +70 ºC

(-40 ºF to +158 ºF)

Relative humidity

<95%
