LB10-UC06-FL

Bosch LB10-UC06-FL 6W Flat Cabinet speaker, ABS construction, Rated power 6 / 3 / 1.5 / 0.75 W, Sound pressure level at 6 W / 1 W (1 m) : 99 dB / 91 dB (SPL), Effective frequency range 145 Hz to 18 kHz (-10 dB), Opening angle 1 kHz / 4 kHz (-6 dB) : Horizontal 168º / 89º & Vertical 168º / 89º, Rated input voltage 100 V, Rated impedance 1667 ohm, Connector 4-pole screw terminal block, White Color.

https://www.esco.pk/web/image/product.template/7080/image_1920?unique=a6ab7ab

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    LB10-UC06-FL

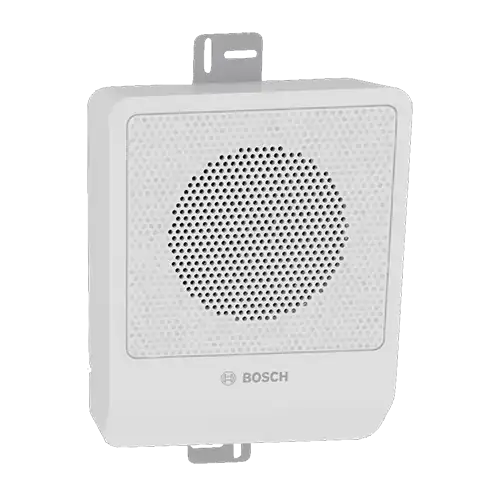

    The LB10-UC06-Fx are 6W, Flat White, general-purpose, cost-effective loudspeakers for indoor use. Keyholes at the rear are provided for quick and easy wall mounting.

    Features

    Good speech intelligibility and background music reproduction, ABS construction, Mounting brackets for wall or ceiling mounting, Complies with international installation and safety regulations

    Certification

    All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards.

    Electrical

    Rated power

    6 / 3 / 1.5 / 0.75 W

    Sound pressure level at 6 W / 1 W (1 m)

    99 dB / 91 dB (SPL)

    Effective frequency range

    145 Hz to 18 kHz (-10 dB)

    Opening angle

    1 kHz / 4 kHz (-6 dB)

    horizontal

    168º / 89º

    vertical

    168º / 89º

    Rated input voltage

    100 V

    Rated impedance

    1667 ohm

    Connector

    4-pole screw terminal block

    Mechanical

    Dimensions (H x W x D)

    205 mm x 160 mm x 66 mm

    (7.82 in x 6.07 in x 2.69 in)

    Weight

    0.83 kg (1.83 lb)

    Color LB10-UC06-FD

    Black (RAL 9004)

    Color LB10-UC06-FL

    White (RAL 9003)

    Environmental

    Operating temperature

    -25 ºC to +55ºC

    (-13 ºF to +131 ºF)

    Storage and transport temperature

    -40 ºC to +70 ºC

    (-40 ºF to +158 ºF)

    Relative humidity

    <95%
