LBC3492/12

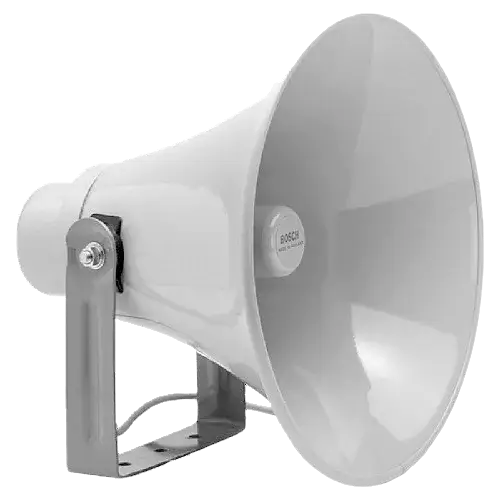

Bosch LBC 3492/12 20W Horn Loudspeaker, Circular, aluminum/ABS, material, water and dust protected according IP65, fixed 2 m, 4-wire connection cable, light gray RAL 7035, 100V Rated Voltage, 123 dB / 110 dB (SPL) at rated power / 1 W (1 kHz, 1 m), 380 Hz to 5.5 kHz Effective Frequency Range.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Description
Reviews

Loudspeaker Type

Bosch LBC 3492/12 20W Circular Horn Loudspeaker

Opening Angle

At 1 kHz / 4 kHz (-6 dB) Horizontal : 80° / 35°

At 1 kHz / 4 kHz (-6 dB) Vertical : 80° / 35°

Power

Maximum Power : 30 W, Rated power : 20 / 10 / 5 W

Effective Frequency Range

380 Hz to 5.5 kHz

Sound Pressure Level

Rated power / 1 W (1 kHz, 1 m) : 123 dB / 110 dB (SPL)

Rated power / 1 W (2 kHz, 1 m) : 125 dB / 112 dB (SPL)

Applications

Water and Dust Protection IP65, makes it deal for sports grounds, parks, exhibitions, factories and swimming pools.

Electrical

Max power

30 W

Rated power (PHC)

20 / 10 / 5 W

Sound pressure level at rated power / 1 W (1 kHz, 1 m)

123 dB / 110 dB (SPL)

Sound pressure level at rated power / 1 W (2 kHz, 1 m)

125 dB / 112 dB (SPL)

Effective frequency range (-10 dB)

380Hz to 5.5kHz

Opening angle
Horizontal
Vertical

1 kHz / 4 kHz (-6 dB)
80° / 35°
80° / 35°

Rated voltage

100 V

Rated impedance

500 ohm

Connection

2 m, 4-wire cable

Mechanical

Aperture diameter

354 mm (13.94 in)

Overall length

332 mm (13.07 in)

Color

Light grey (RAL 7035)

Weight

2.65 kg (5.83 lb)

Environmental

Operating temperature

-25 ºC to +55 ºC

(-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC

(-40 ºF to +158 ºF)

Relative humidity

<95%
